Thermal Imaging Monocular Vista H50
Innovative technology for the best image quality
The Vista thermal imaging hand-held devices rely on a specially developed F0.9 lens that transmits around 20 % more light than conventional lenses. As a result, they deliver particularly bright and high-contrast images even in low ambient light. A 60 Hz detector ensures smooth motion display, and the very low NETD value of ≤15 mK makes even the smallest temperature differences visible. The image quality is supported by the R+ image algorithm and an integrated ballistic calculation - ideal for demanding applications such as hunting.

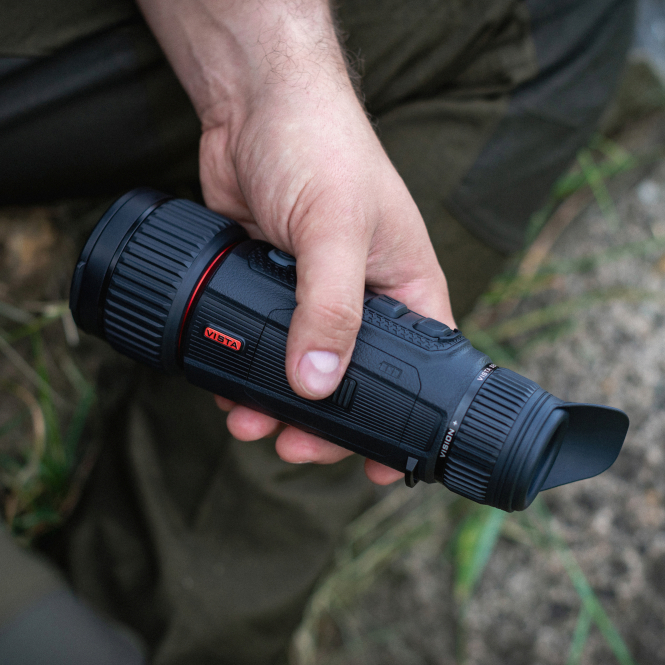

Convenience and reliability in use

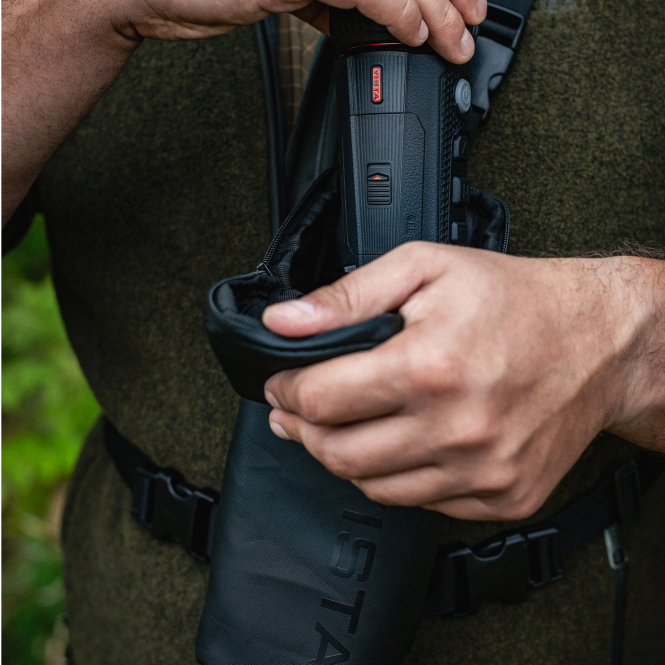

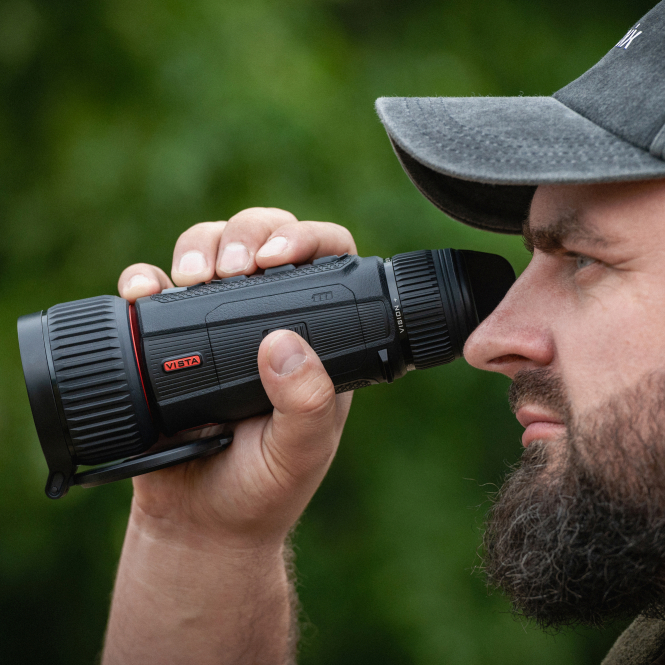

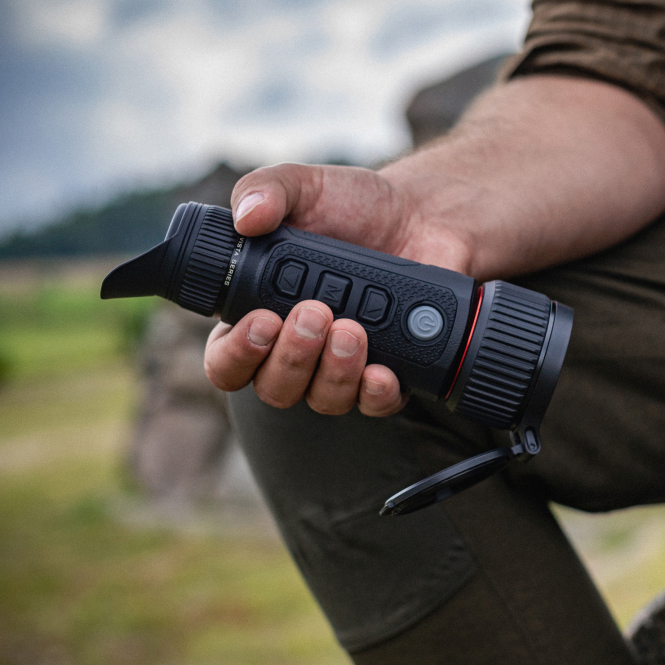

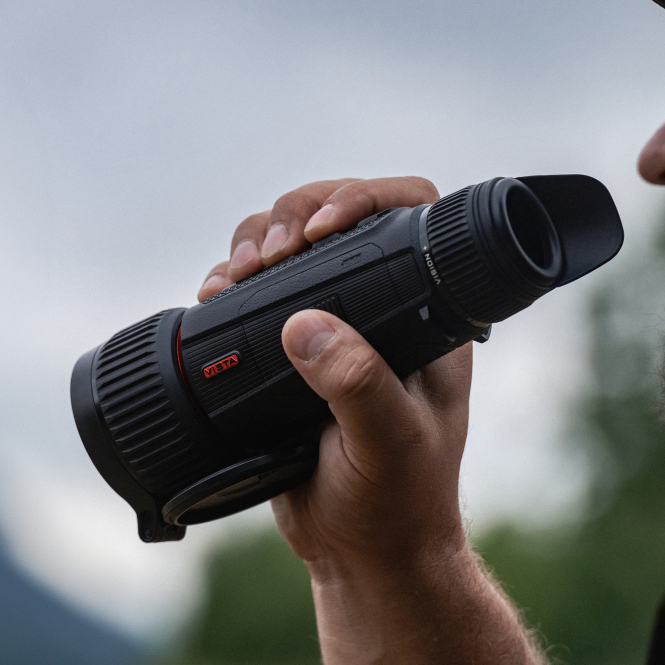

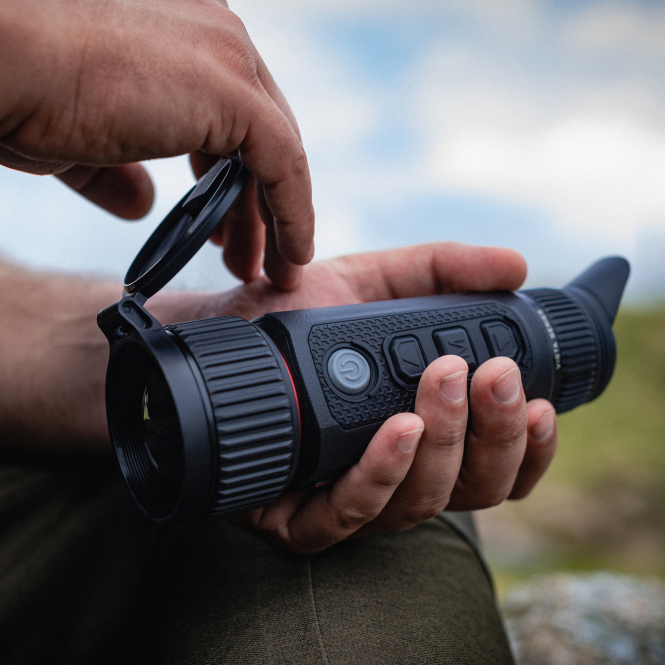

Operation of the Vista devices remains pleasantly unobtrusive: noiseless buttons enable discreet operation, while the rotating eyecup shields out stray light. The non-slip TPU synthetic leather coating ensures a secure grip, even during long periods of use. With generous storage space, robust protection against dust and water (IP67) and a wide operating range from -20 °C to +50 °C, the Vista thermal imaging handheld devices are reliable companions for a wide range of outdoor activities.

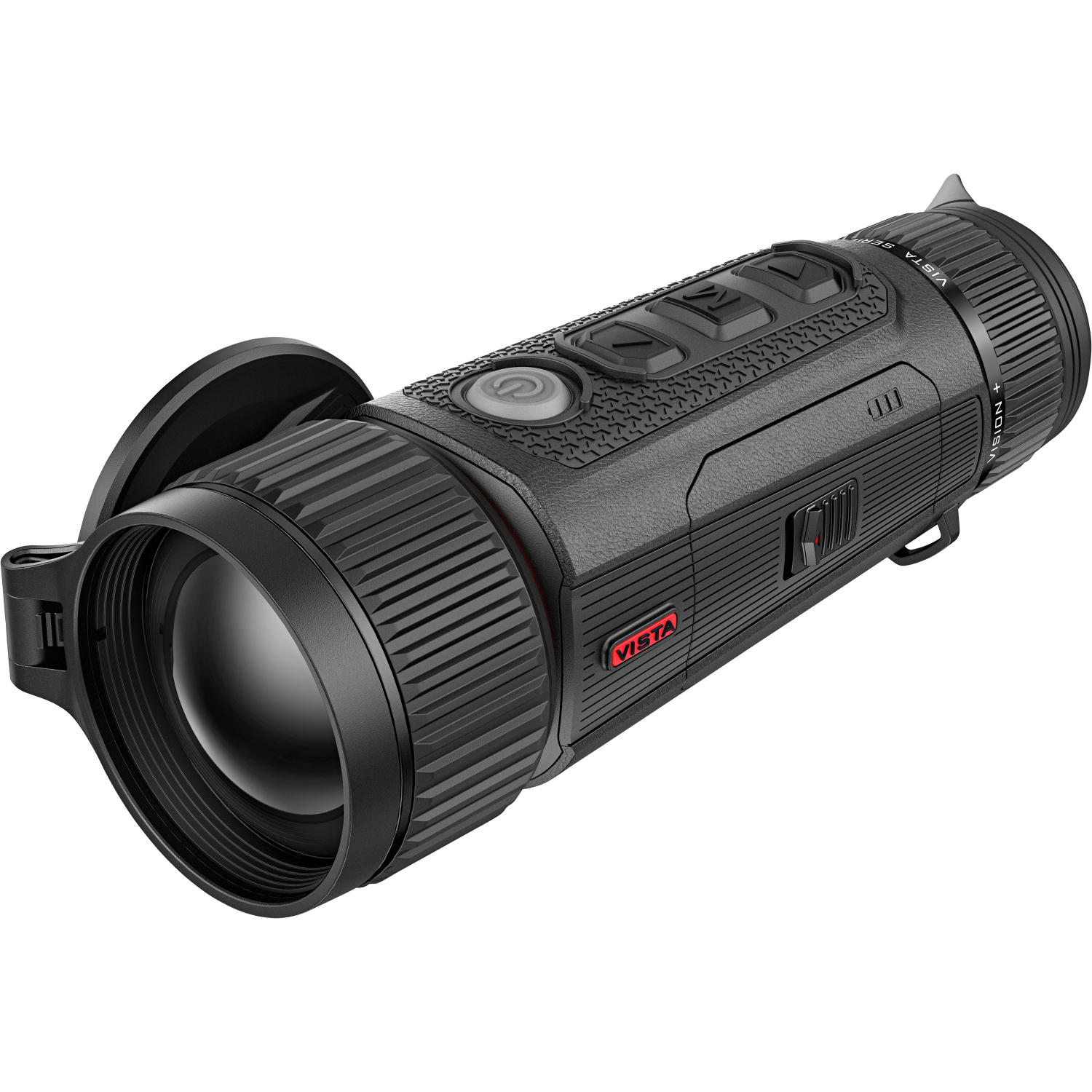

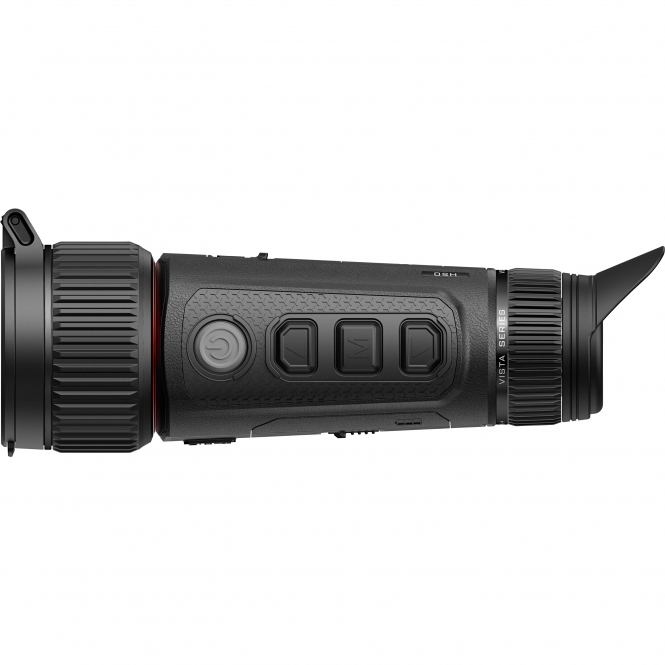

Thermal Imaging Monocular Vista H50
Powerful image display at long distances

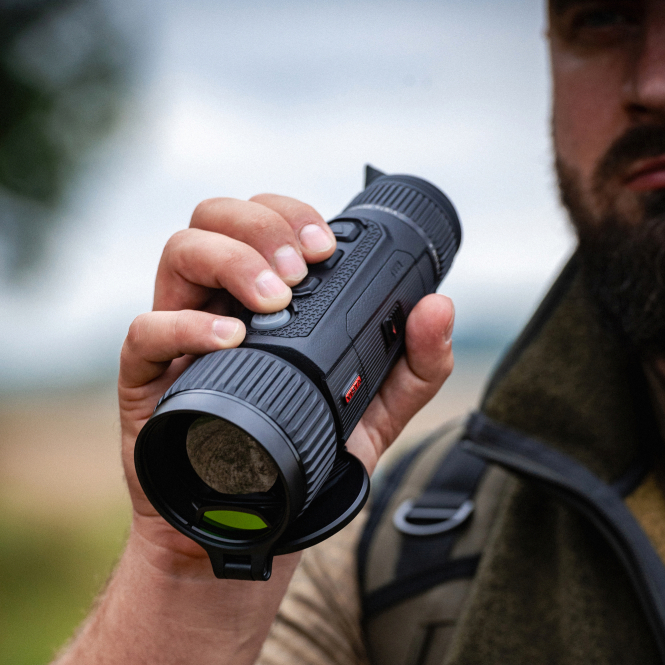

The Vista H50 is equipped with a 50 mm F0.9 lens and a 640×512 pixel thermal sensor with 12 μm pixel pitch, which enables detailed image quality even at long distances. The fourfold basic magnification and the field of view of 15 meters at a distance of 100 meters make the device particularly suitable for observations in open terrain. The detection range is up to 2600 meters.
Versatile features and convenient handling
With a variable magnification of 4x to 40x, both overview and details can be captured flexibly. Seven different color palettes, including eye-friendly red and green modes, offer comfort for longer observations. The integrated 4400 mAh battery can be charged directly on the device and ensures long-lasting use. Despite its powerful features, the Vista H50 remains pleasantly handy at 630 g.
Technical Data:
- Heat sensor: 640×512 and 12μm
- NETD: ≤15 mK
- Frame rate: 60 Hz
- Lens: 50 mm F0.9
- Field of view (H × V), °/m at 100 m: 8.8x7.0 /15x12
- Magnification: 4~40x
- Detection range (target size: 1.7 m x 0.5 m, P(n) = 99%): 2600 m
- Exit relief: 25 mm
- Exit pupil diameter: 8 mm
- Dioptres: -4~+6 D
- Display: 1.03-inch OLED
- Resolution: 2560 x 2560
- Battery type: 4400mAh rechargeable battery
- Max. operating time (t=22℃): 5.5 hours
- Microphone: Yes
- Storage capacity: 64 GB
- IP protection class: IP67
- Operating temperature: -20 ~ +50 ℃
- Weight (with battery): 630 g
- Dimensions: 190x67x79 mm
