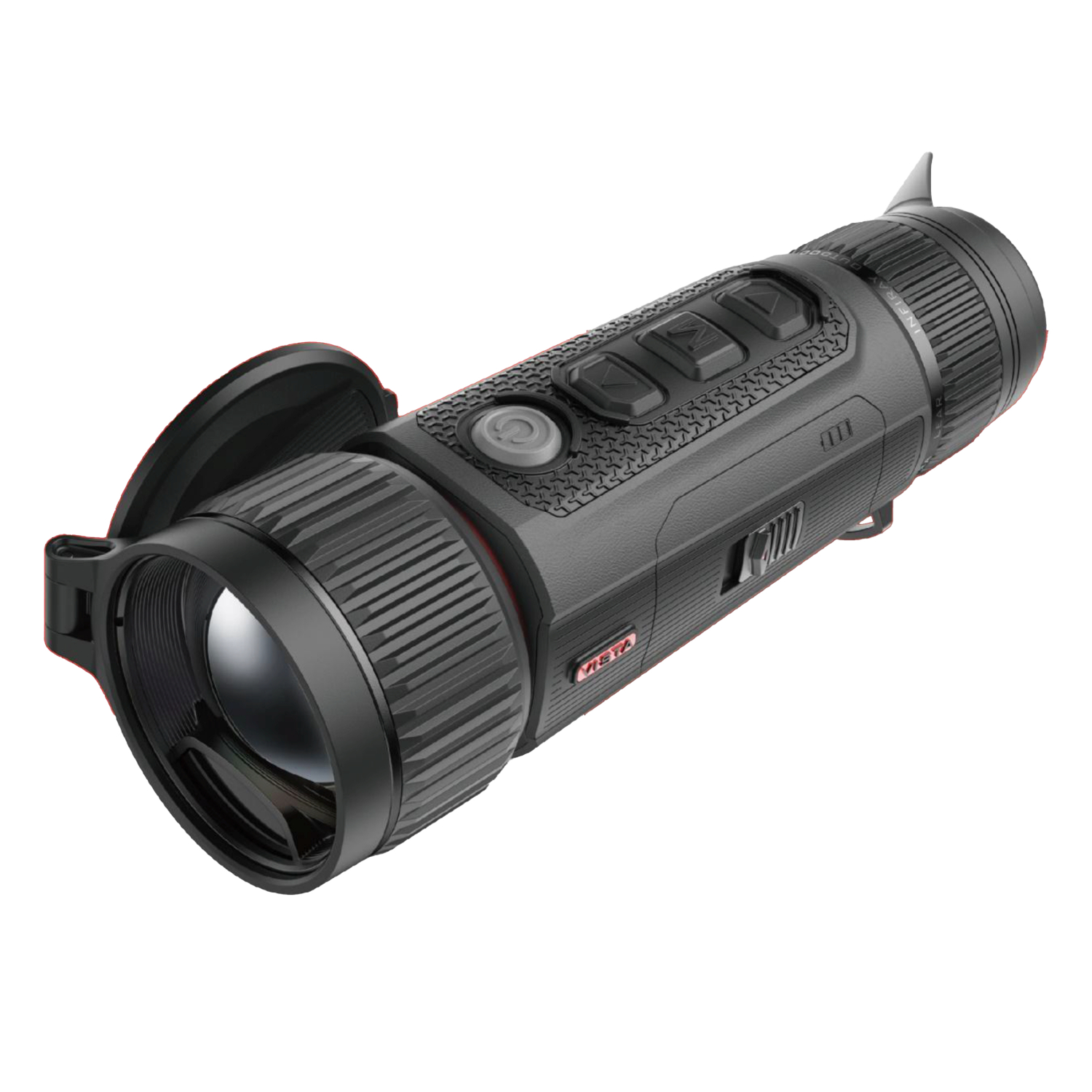

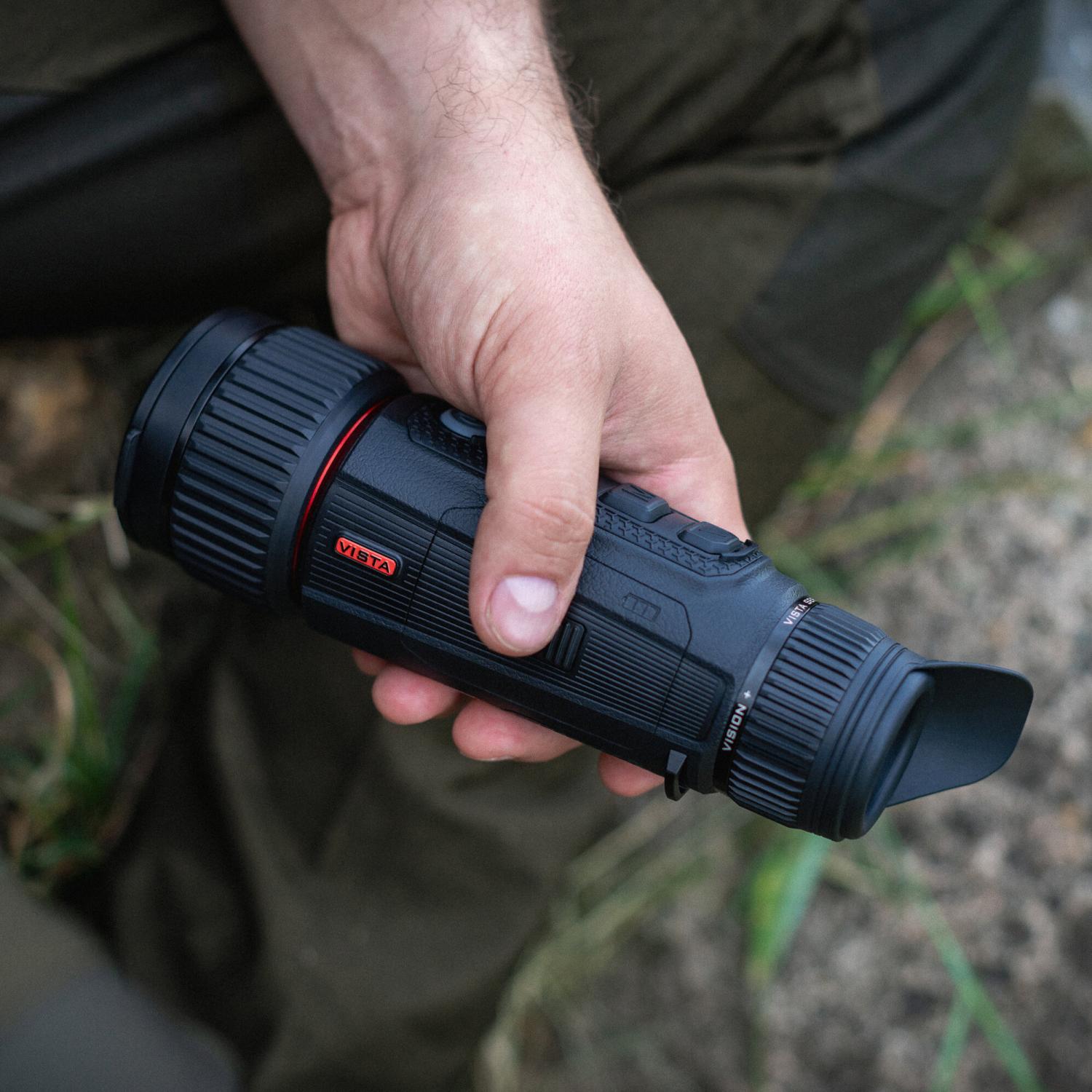

Thermal Imaging Monocular Vista H35R (with LRF)
Innovative technology for the best image quality
The Vista thermal imaging hand-held devices rely on a specially developed F0.9 lens that transmits around 20 % more light than conventional lenses. As a result, they deliver particularly bright and high-contrast images even in low ambient light. A 60 Hz detector ensures smooth motion display, and the very low NETD value of ≤15 mK makes even the smallest temperature differences visible. The image quality is supported by the R+ image algorithm and an integrated ballistic calculation - ideal for demanding applications such as hunting.
Convenience and reliability in use

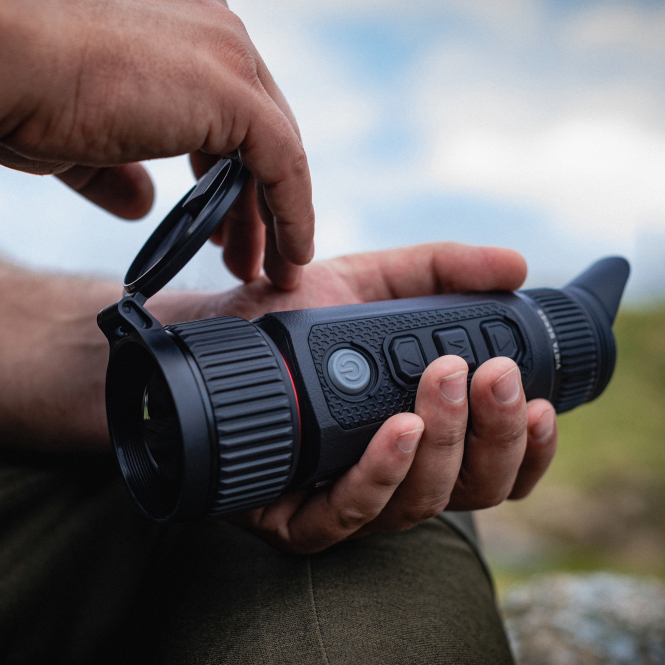

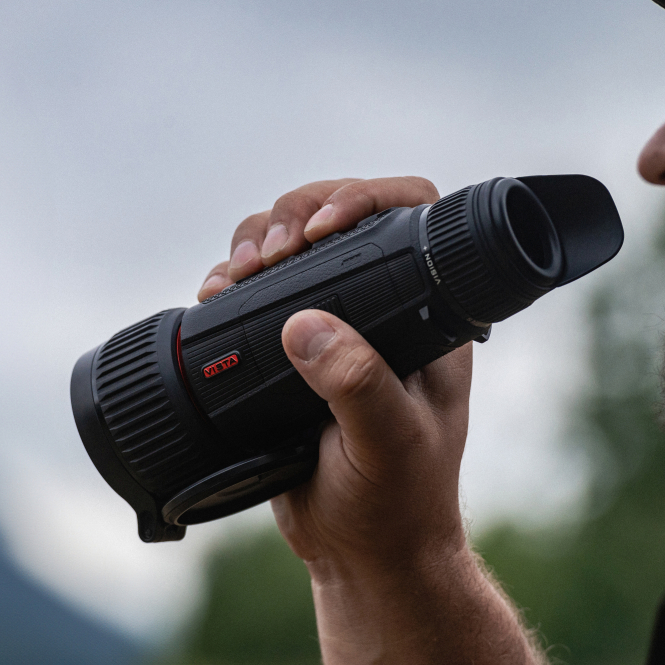

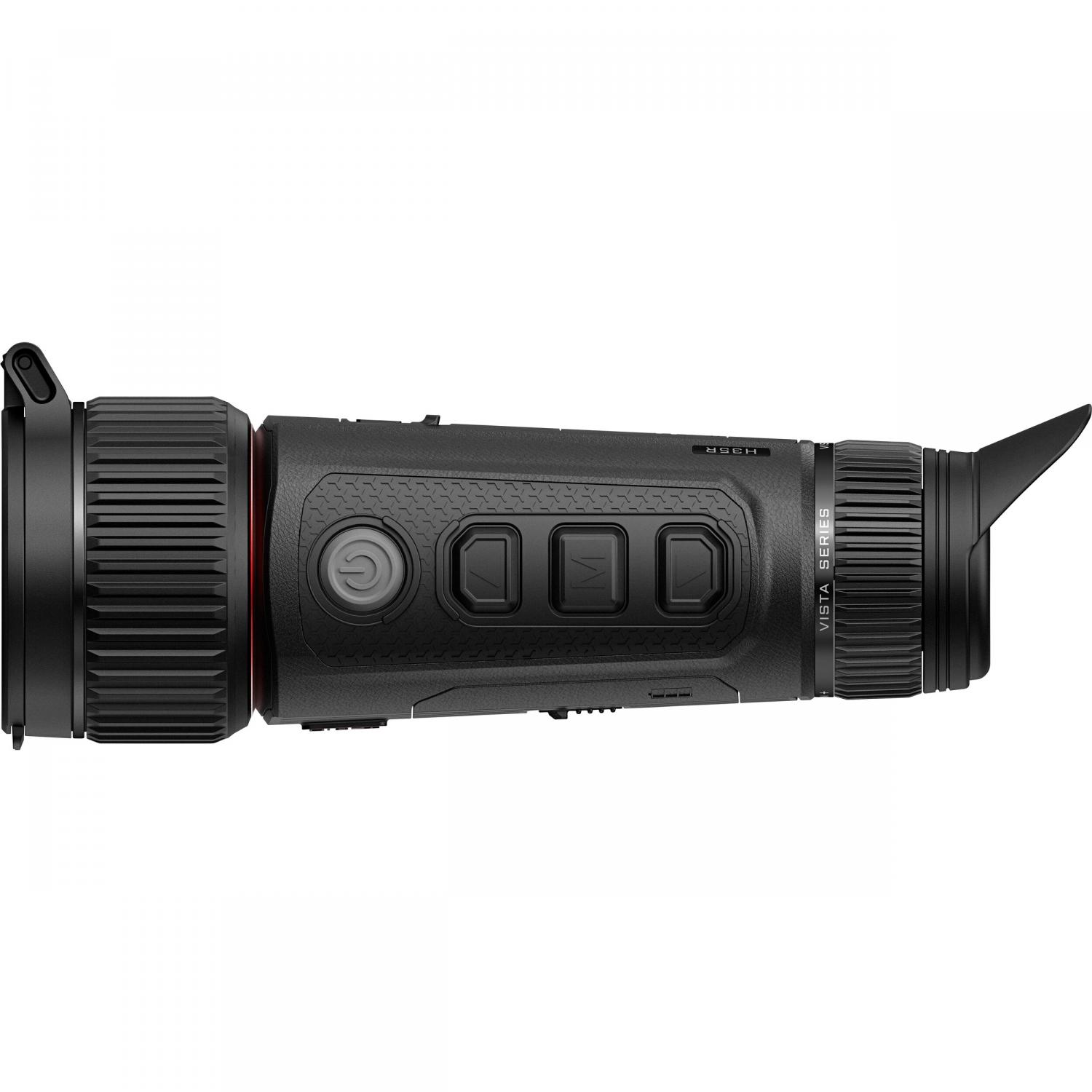

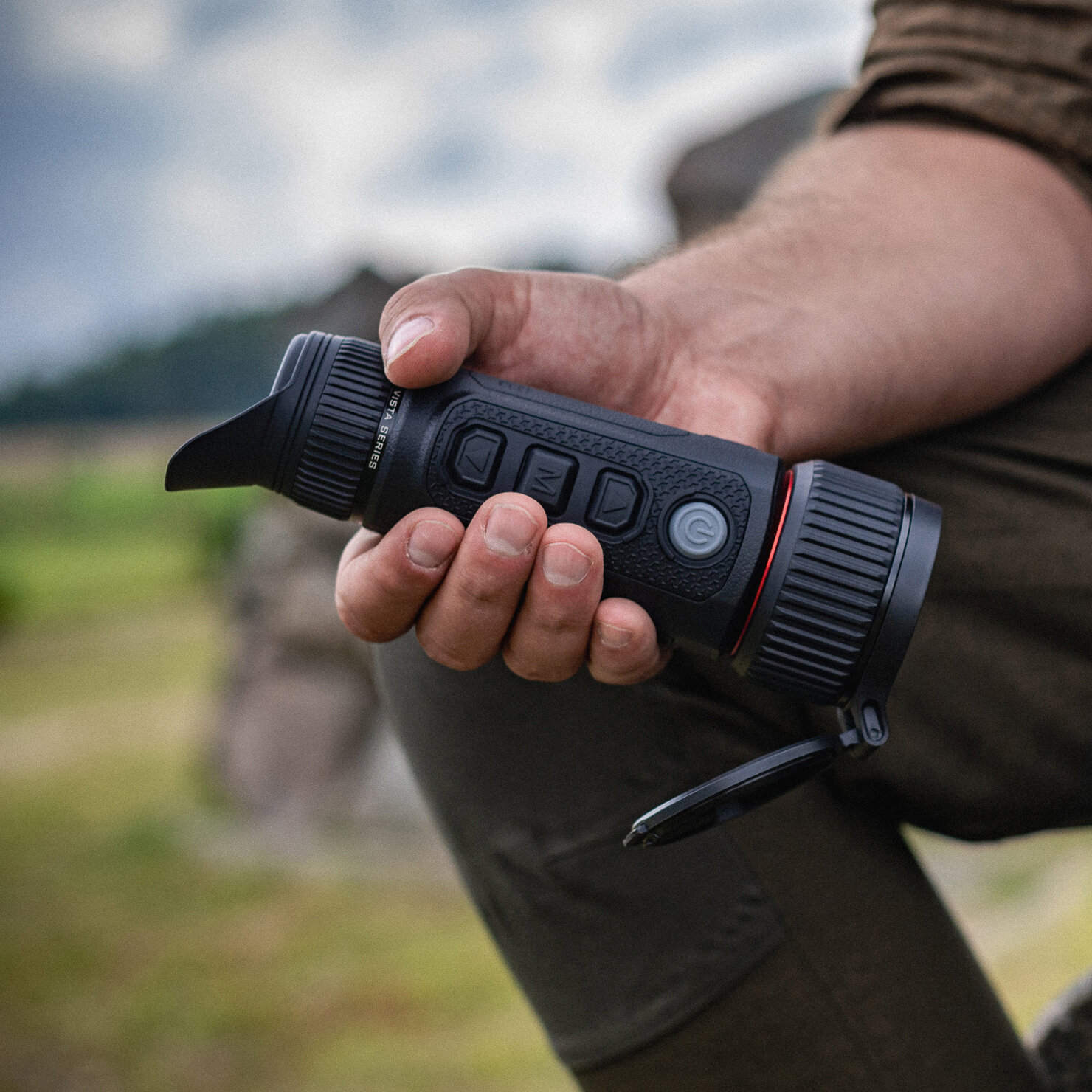

Operation of the Vista devices remains pleasantly unobtrusive: noiseless buttons enable discreet operation, while the rotating eyecup shields out stray light. The non-slip TPU synthetic leather coating ensures a secure grip, even during long periods of use. With generous storage space, robust protection against dust and water (IP67) and a wide operating range from -20 °C to +50 °C, the Vista thermal imaging handheld devices are reliable companions for a wide range of outdoor activities.
Thermal Imaging Monocular Vista H35R (with LRF)
Integrated laser rangefinder and precise image display
The Vista H35R has an integrated laser rangefinder that enables distance measurements of up to 1200 meters - while still maintaining a compact and lightweight design. The 2560×2560 OLED display and 8 mm exit pupil ensure a clear, comfortable viewing experience. The 640×512 pixel thermal sensor with 12 μm pixel pitch and the 35 mm F0.9 lens offer a wide field of view of 22 meters at a distance of 100 meters as well as variable magnification from 3x to 28x for flexible observations.
Flexibility and comfort for long periods of use
Seven different color palettes, including eye-friendly red and green modes, allow individual adaptation to different observation situations and reduce visual fatigue. The integrated 4400 mAh battery can be charged directly on the device and ensures long-lasting use. An integrated microphone facilitates documentation. With a weight of only 640 g and compact dimensions, the Vista H35R remains handy and easy to transport.
Technical Data:
- Heat sensor: 640×512 and 12μm
- NETD: ≤15 mK
- Frame rate: 60 Hz
- Lens: 35 mm F0.9
- Field of view (H × V), °/m at 100 m: 12.5x10.0 /22x18
- Magnification: 3~28x
- Detection range (target size: 1.7 m x 0.5 m, P(n) = 99%): 1800 m
- Exit relief: 25 mm
- Exit pupil diameter: 8 mm
- Diopter adjustment: -4~+6 D
- Display: 1.03-inch OLED
- Resolution: 2560 x 2560
- Battery type: 4400mAh rechargeable battery
- Max. operating time (t=22℃): 5.5 hours
- Laser safety class: Class 1
- Max. rangefinder distance: 1200
- Microphone: Yes
- Storage capacity: 64 GB
- IP protection class: IP67
- Operating temperature: -20 ~ +50 ℃
- Weight (with battery): 640 g
- Dimensions: 190x67x79 mm
