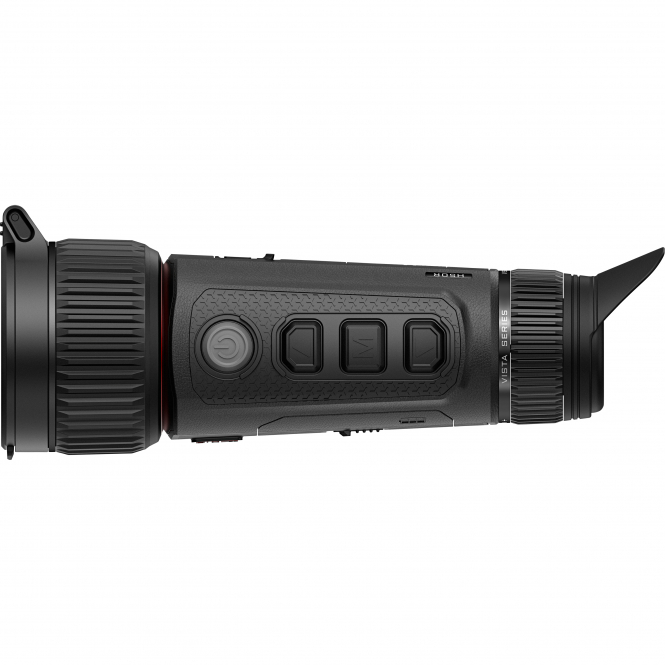

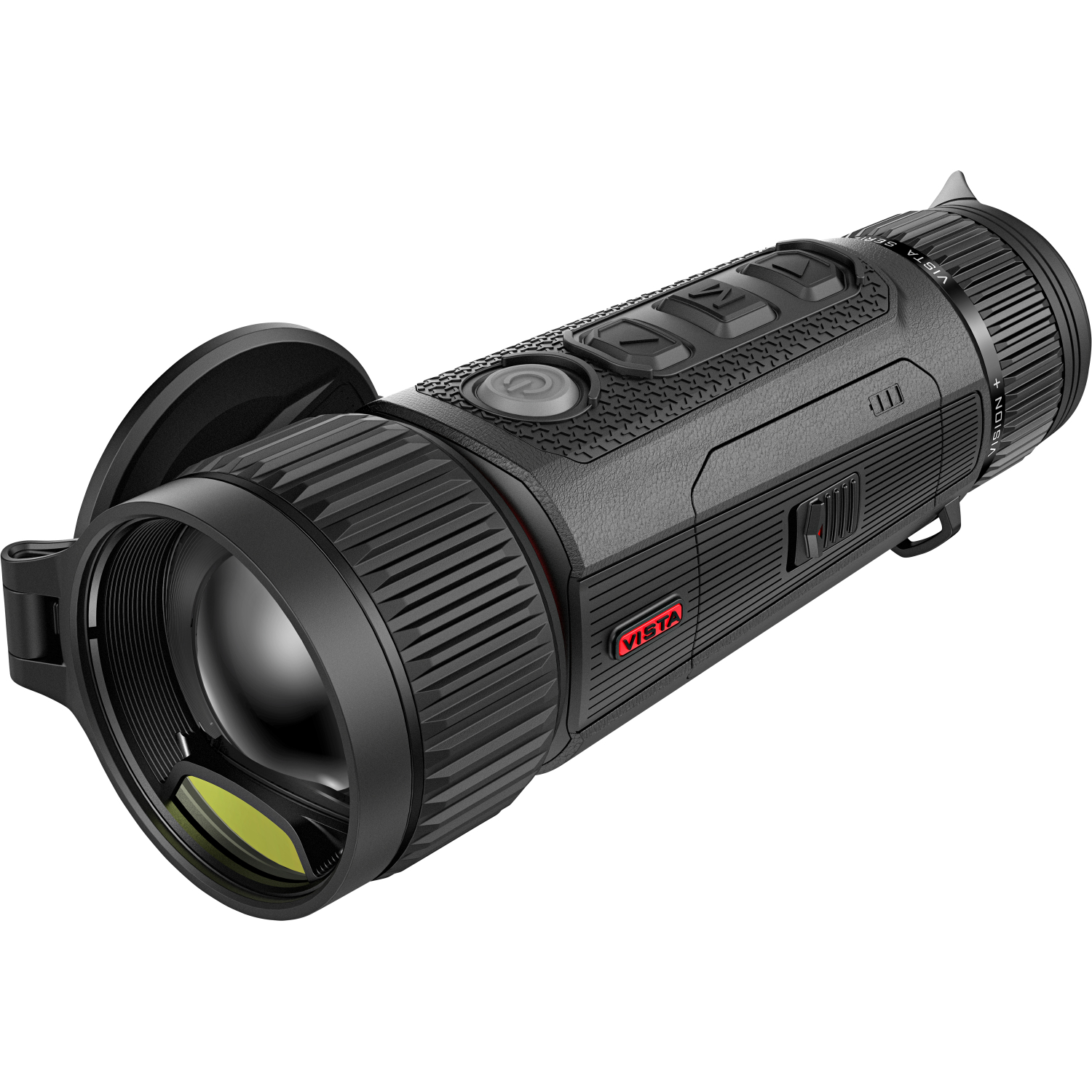

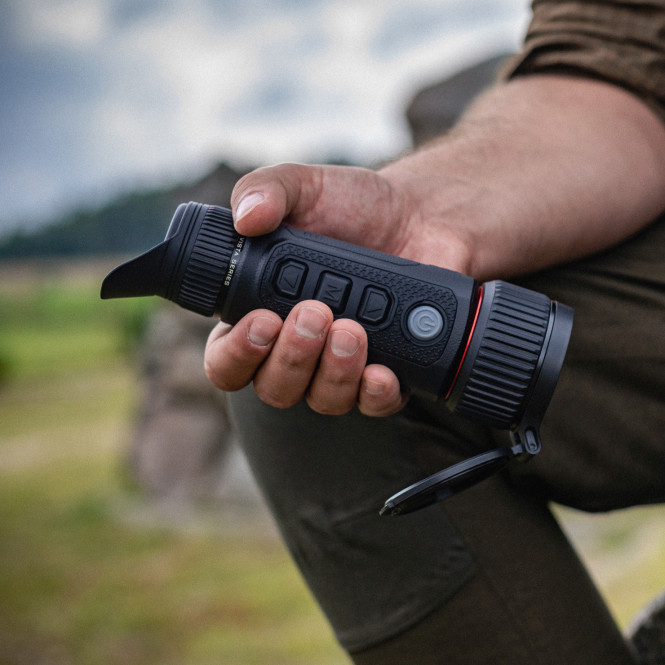

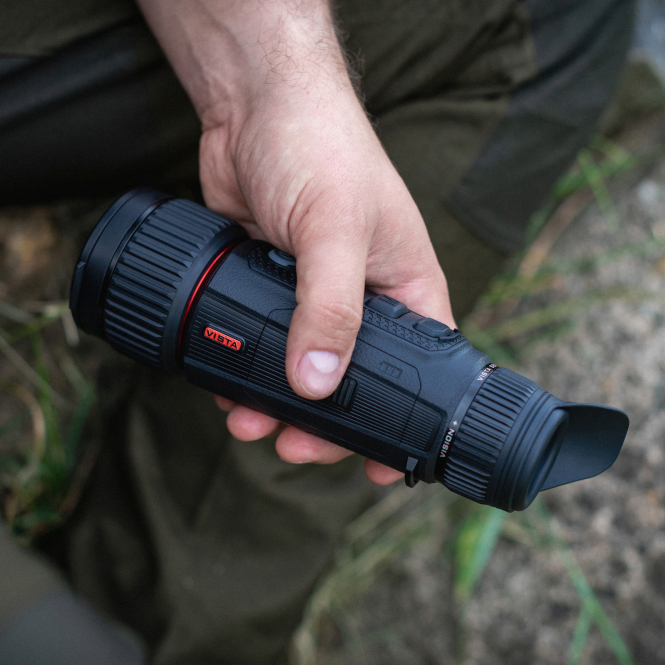

Thermal Imaging Monocular Vista H50R (with LRF)
Innovative technology for the best image quality
The Vista thermal imaging hand-held devices rely on a specially developed F0.9 lens that transmits around 20 % more light than conventional lenses. As a result, they deliver particularly bright and high-contrast images even in low ambient light. A 60 Hz detector ensures smooth motion display, and the very low NETD value of ≤15 mK makes even the smallest temperature differences visible. The image quality is supported by the R+ image algorithm and an integrated ballistic calculation - ideal for demanding applications such as hunting.
Convenience and reliability in use

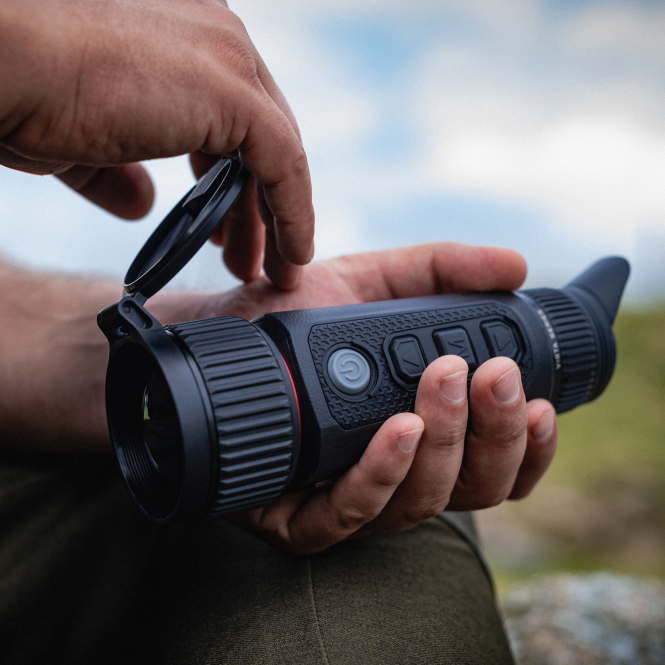

Operation of the Vista devices remains pleasantly unobtrusive: noiseless buttons enable discreet operation, while the rotating eyecup shields out stray light. The non-slip TPU synthetic leather coating ensures a secure grip, even during long periods of use. With generous storage space, robust protection against dust and water (IP67) and a wide operating range from -20 °C to +50 °C, the Vista thermal imaging handheld devices are reliable companions for a wide range of outdoor activities.
Thermal Imaging Monocular Vista H50R (with LRF)
Integrated laser rangefinder and long range
The Vista H50R is equipped with a precise laser rangefinder that enables distance measurements up to 1200 meters without compromising the compact and lightweight design. With the 50 mm F0.9 lens and the 640×512 pixel thermal sensor with 12 μm pixel pitch, the device offers a detailed image display even at long distances. The maximum detection range is 2600 meters, so that even distant objects can be reliably detected.
Versatile features and convenient handling
With four times the basic magnification and a field of view of 15 meters at a distance of 100 meters, the Vista H50R is particularly suitable for observation in open terrain. The variable magnification, various color palettes (including eye-friendly red and green modes) and the brilliant 2560×2560 AMOLED display ensure flexibility and comfort during long missions. The integrated 4400 mAh battery can be charged directly on the device. Despite its powerful features, the Vista H50R remains pleasantly handy at 650 g.
Technical Data:
- Heat sensor: 640x512 and 12μm
- NETD: ≤15 mK
- Frame rate: 60 Hz
- Lens: 50 mm F0.9
- Field of view (H × V), °/m at 100 m: 8.8x7.0 /15x12
- Magnification: 4~40x
- Detection range (target size: 1.7 m x 0.5 m, P(n) = 99%): 2600 m
- Exit relief: 25 mm
- Exit pupil diameter: 8 mm
- Dioptres: -4~+6 D
- Display: 1.03-inch OLED
- Resolution: 2560 x 2560
- Battery type: 4400mAh rechargeable battery
- Max. operating time (t=22℃): 5.5 hours
- Laser safety class: Class 1
- Max. rangefinder distance: 1200
- Microphone: Yes
- Storage capacity: 64 GB
- IP protection class: IP67
- Operating temperature: -20 ~ +50 ℃
- Weight (with battery): 650 g
- Dimensions: 194x70x82 mm
