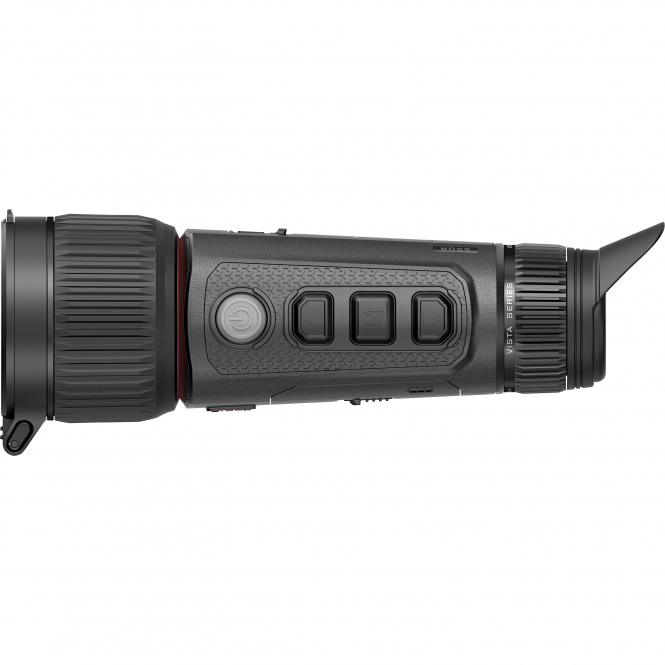

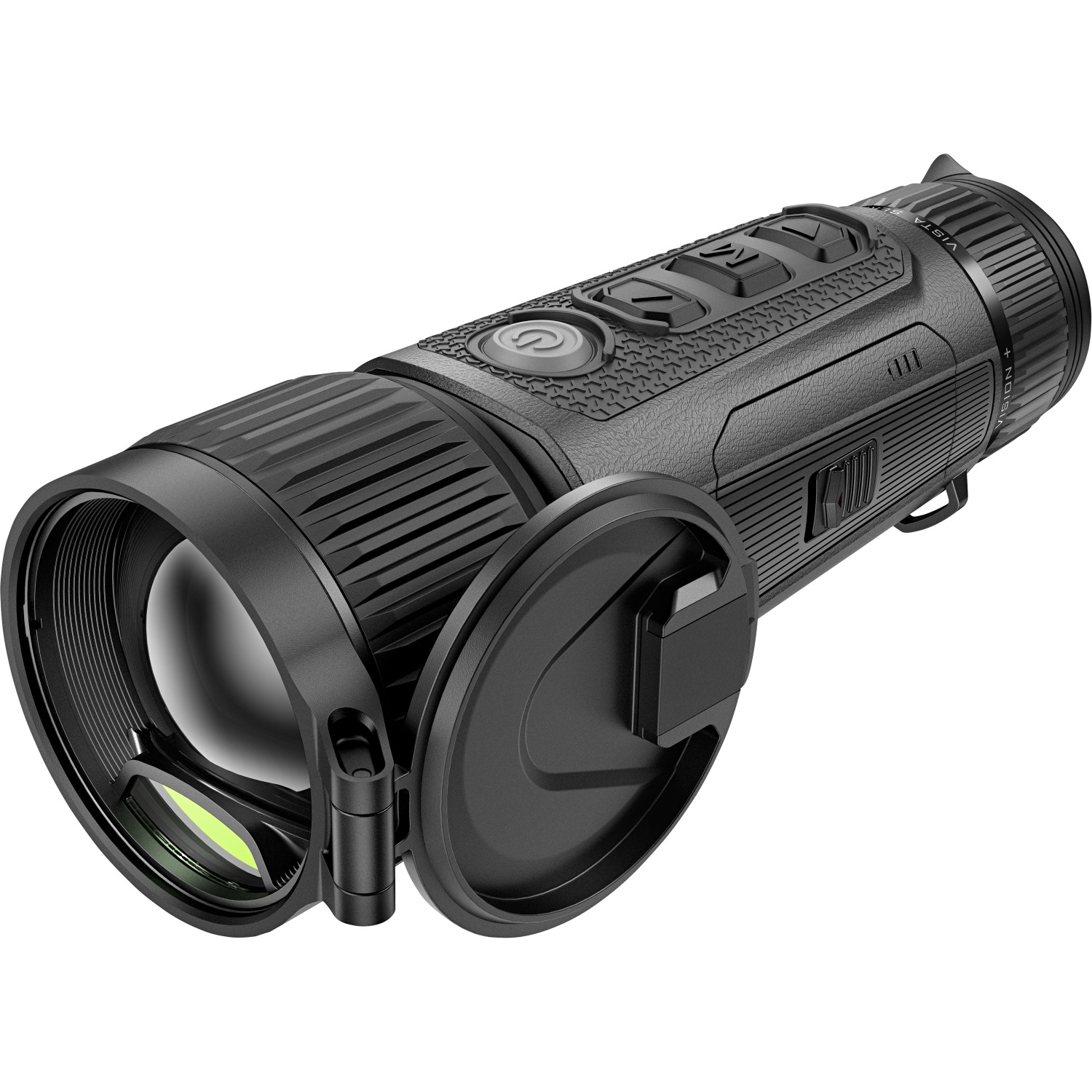

Thermal Imaging Monocular Vista S50R (with LRF)
Innovative technology for the best image quality
The Vista thermal imaging hand-held devices rely on a specially developed F0.9 lens that transmits around 20 % more light than conventional lenses. As a result, they deliver particularly bright and high-contrast images even in low ambient light. A 60 Hz detector ensures smooth motion display, and the very low NETD value of ≤15 mK makes even the smallest temperature differences visible. The image quality is supported by the R+ image algorithm and an integrated ballistic calculation - ideal for demanding applications such as hunting.
Convenience and reliability in use

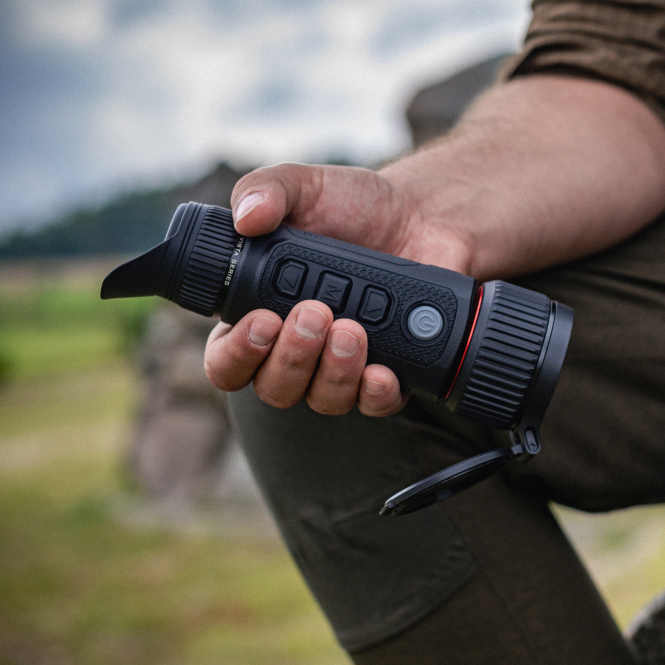

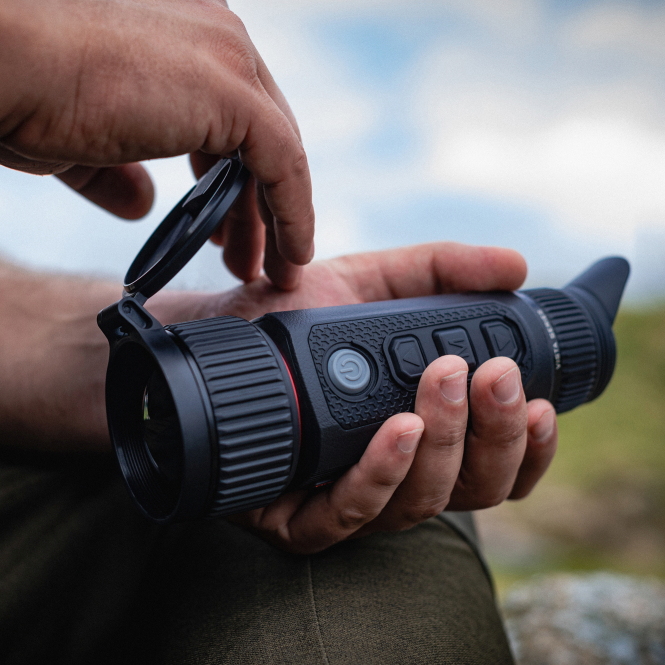

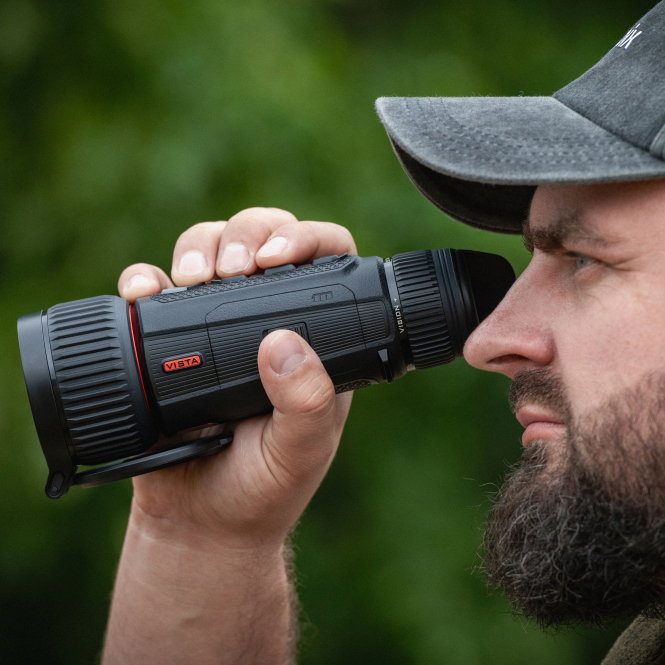

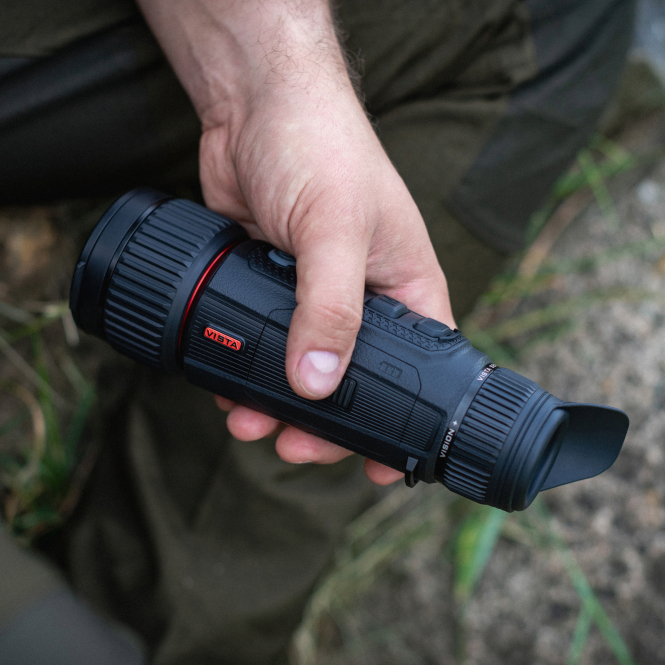

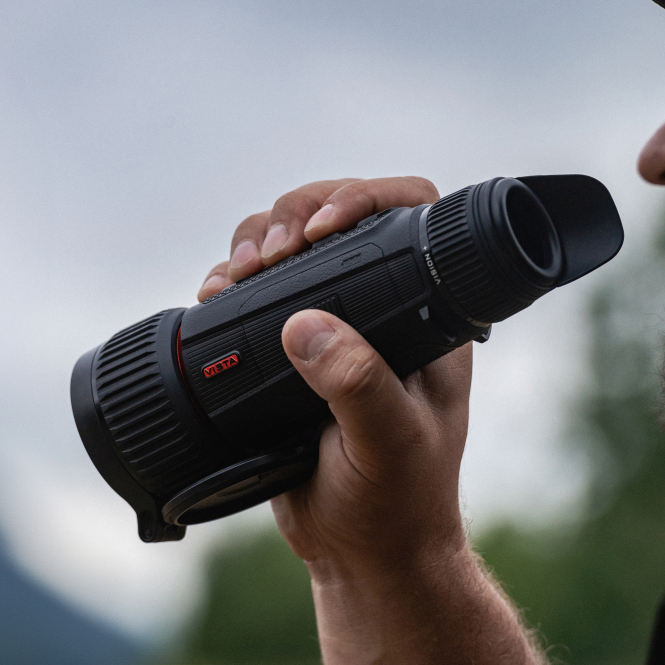

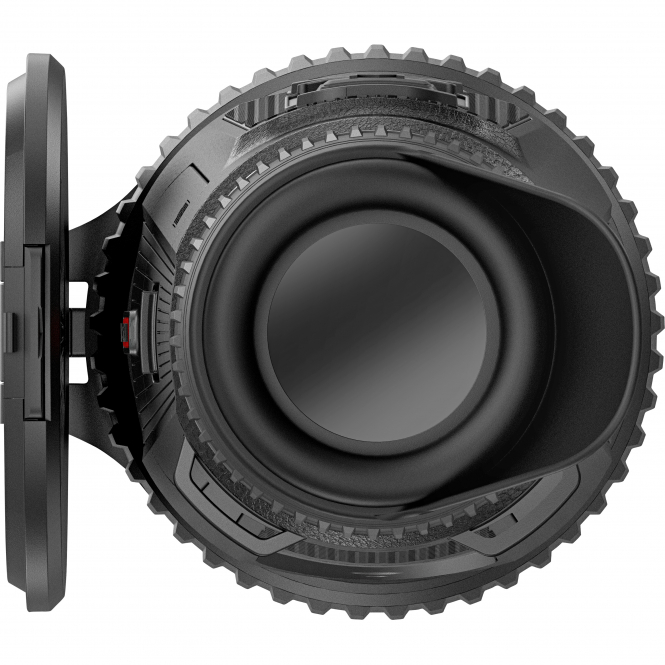

Operation of the Vista devices remains pleasantly unobtrusive: noiseless buttons enable discreet operation, while the rotating eyecup shields out stray light. The non-slip TPU synthetic leather coating ensures a secure grip, even during long periods of use. With generous storage space, robust protection against dust and water (IP67) and a wide operating range from -20 °C to +50 °C, the Vista thermal imaging handheld devices are reliable companions for a wide range of outdoor activities.
Thermal Imaging Monocular Vista S50R (with LRF)
Outstanding image quality and innovative technology
The Vista S50R sets new standards in thermal imaging technology with its advanced 1280×1024 pixel HD sensor and a NETD value of ≤15 mK. The 50 mm F0.9 lens provides a generous field of view of 31 meters at a distance of 100 meters and enables a detection range of up to 2600 meters. The round AMOLED display with 2560×2560 pixels and 8 mm exit pupil, together with the Pure Vision mode, offers a particularly comfortable viewing experience. Thanks to the 60 Hz frame rate, movements are displayed smoothly and without delay. The basic optical magnification of 2x can be digitally expanded up to 40x, making the device suitable for both overview and detailed observations.
Versatile features and practical convenience

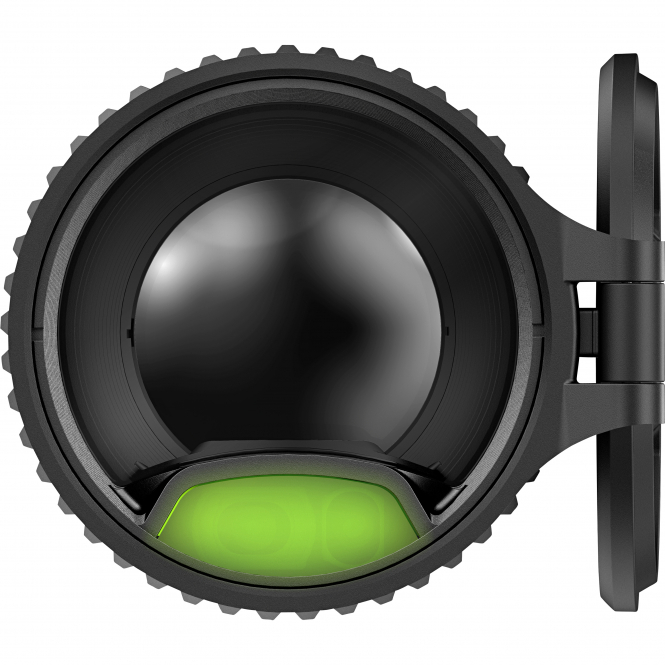

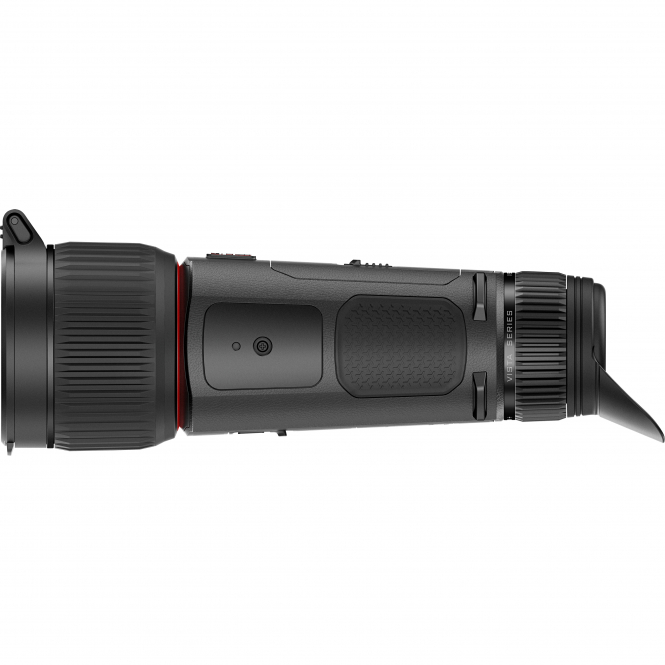

The integrated laser rangefinder measures precise distances of up to 1200 meters without compromising the compact design. Seven different color palettes, including eye-friendly red and green modes, offer flexibility for different viewing situations and reduce visual fatigue. The optimized removable battery solution with the replaceable IBP-7/4400 mAh battery enables quick battery changes and provides up to 5.5 hours of operation. With a weight of 690 g, the Vista S50R remains pleasantly handy despite its extensive features.
Technical Data:
- Heat sensor: 1280x1024 and 12 μm
- NETD: ≤15 mK
- Frame rate: 60 Hz
- Lens: 50 mm F0.9
- Field of view (H × V), °/m at 100 m: 17.5x14.0 /31x25
- Magnification: 2~40x
- Detection range (target size: 1.7 m x 0.5 m, P(n) = 99%): 2600 m
- Exit relief: 25 mm
- Exit pupil diameter: 8 mm
- Diopter adjustment: -4~+6 D
- Display: AMOLED
- Resolution: 2560 x 2560
- Battery type: Replaceable lithium-ion battery pack IBP-7/4400mAh
- Max. operating time (t=22℃): 4.5 h
- Laser safety class: Class 1
- Max. range of the rangefinder: 1200
- Microphone: Support
- Storage capacity: 64 GB
- IP protection class: IP67
- Operating temperature: -20 ~ +50 ℃
- Weight (with battery): 690 g
- Dimensions: 201x70x82 mm
