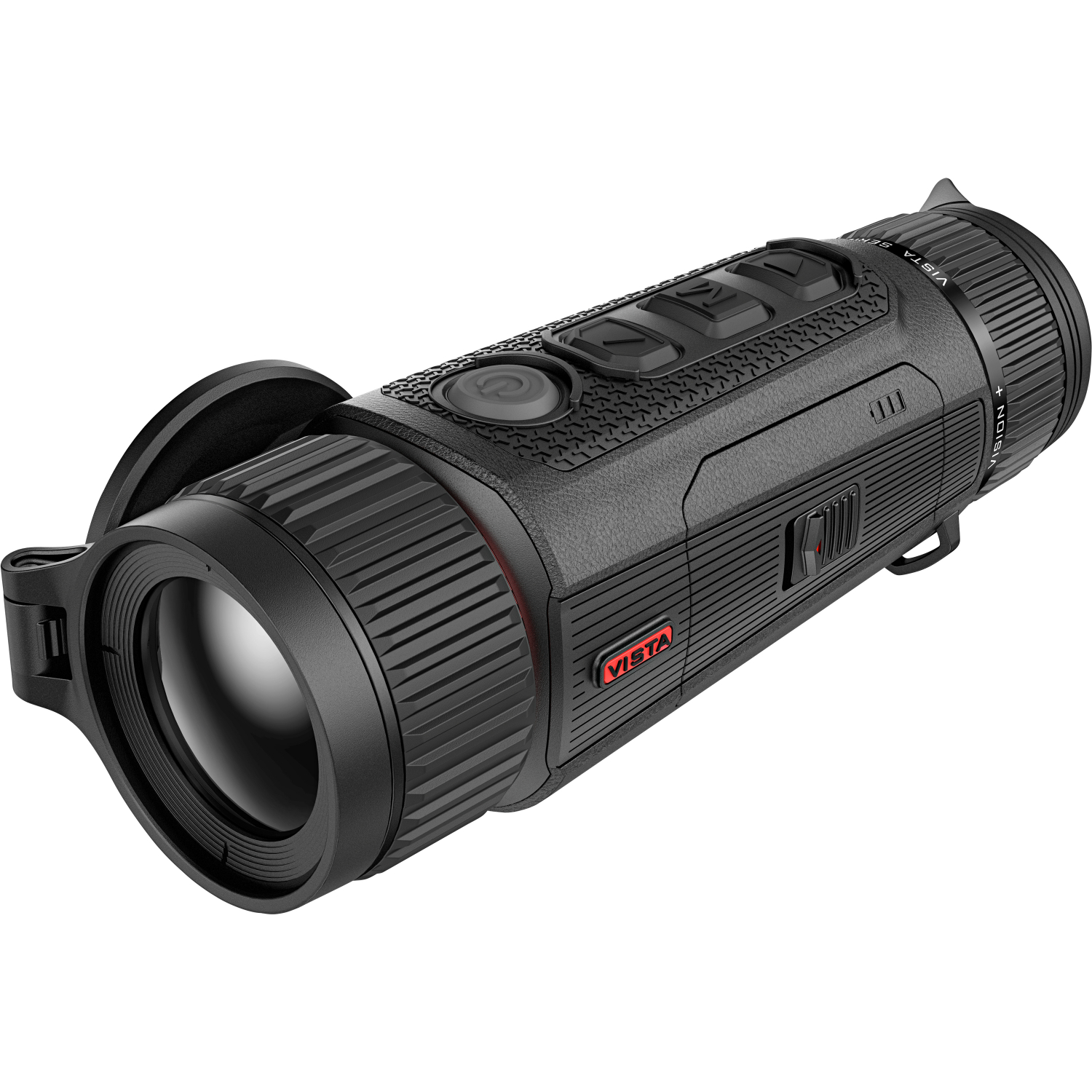

Thermal Imaging Monocular Vista H35
Innovative technology for the best image quality
The Vista thermal imaging hand-held devices rely on a specially developed F0.9 lens that transmits around 20 % more light than conventional lenses. As a result, they deliver particularly bright and high-contrast images even in low ambient light. A 60 Hz detector ensures smooth motion display, and the very low NETD value of ≤15 mK makes even the smallest temperature differences visible. The image quality is supported by the R+ image algorithm and an integrated ballistic calculation - ideal for demanding applications such as hunting.
Convenience and reliability in use

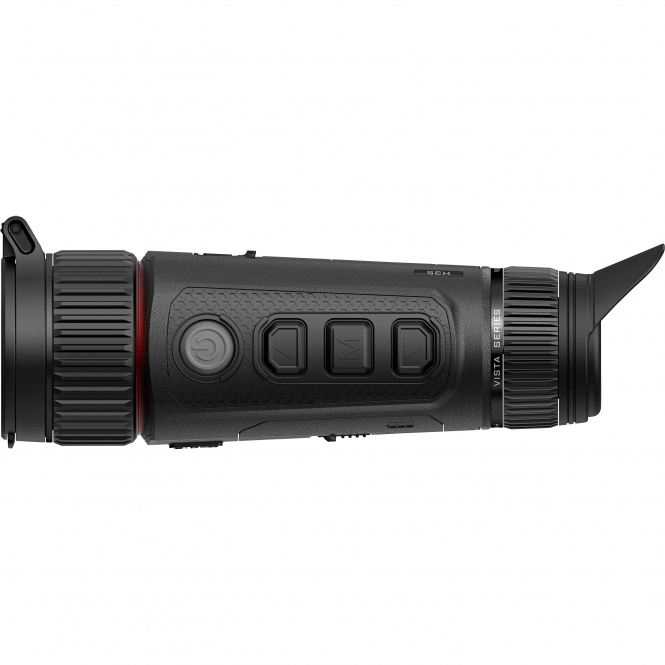

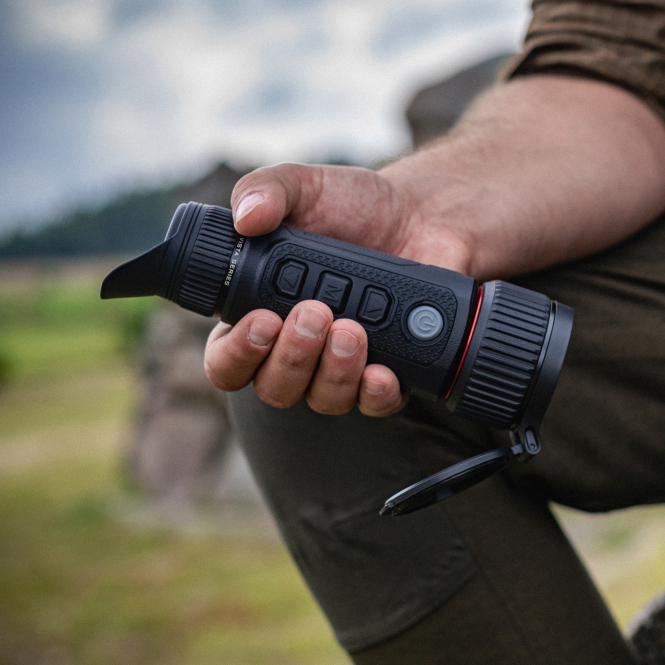

Operation of the Vista devices remains pleasantly unobtrusive: noiseless buttons enable discreet operation, while the rotating eyecup shields out stray light. The non-slip TPU synthetic leather coating ensures a secure grip, even during long periods of use. With generous storage space, robust protection against dust and water (IP67) and a wide operating range from -20 °C to +50 °C, the Vista thermal imaging handheld devices are reliable companions for a wide range of outdoor activities.
Thermal Imaging Monocular Vista H35
High-resolution display and precise sensor
The Vista H35 has a 2560×2560 OLED display and an 8 mm exit pupil, which offer a particularly clear and comfortable viewing experience. The 640×512 pixel thermal sensor with 12 μm pixel pitch ensures a detailed display. The 35 mm F0.9 lens enables a balanced field of view of 22 meters at a distance of 100 meters.
Versatile functions for flexible use
With a variable magnification of 3x to 28x, both overview and details can be captured flexibly. The integrated 4400 mAh battery enables long periods of use and can be charged directly on the device. Seven color palettes, including eye-friendly red and green modes, reduce visual fatigue and offer adjustments for different observation situations. An integrated microphone facilitates documentation. The compact design with a weight of 610 g ensures comfortable handling on the go.
Technical Data
- Heat sensor: 640×512 and 12μm
- NETD: ≤15 mK
- Frame rate: 60 Hz

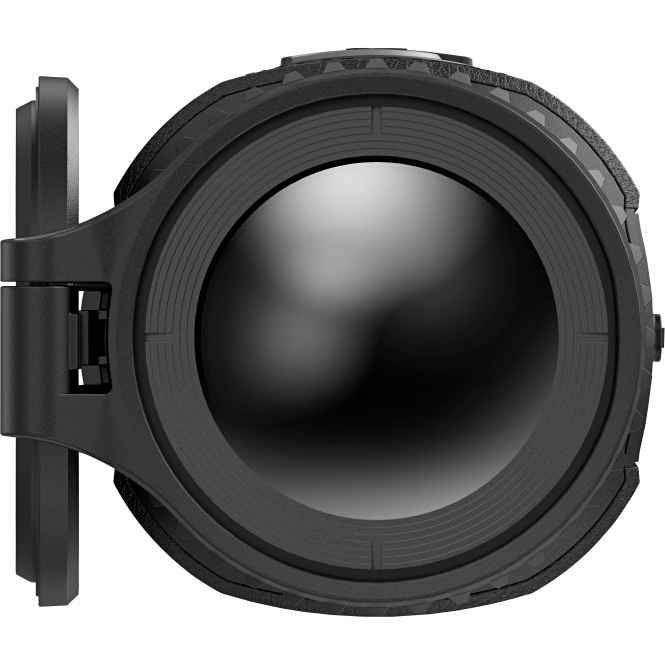

- Lens: 35 mm F0.9
- Field of view (H × V), °/m at 100 m: 12.5x10.0 /22x18
- Magnification: 3~28x
- Detection range (target size: 1.7 m x 0.5 m, P(n) = 99%): 1800 m
- Exit relief: 25 mm
- Exit pupil diameter: 8 mm
- Diopter adjustment: -4~+6 D
- Display: 1.03-inch OLED
- Resolution: 2560 x 2560
- Battery type: 4400mAh rechargeable battery
- Max. operating time (t=22℃): 5.5 hours
- Microphone: Yes
- Storage capacity: 64 GB
- IP protection class: IP67
- Operating temperature: -20 ~ +50 ℃
- Weight (with battery): 610 g
- Dimensions: 184x61x71 mm
