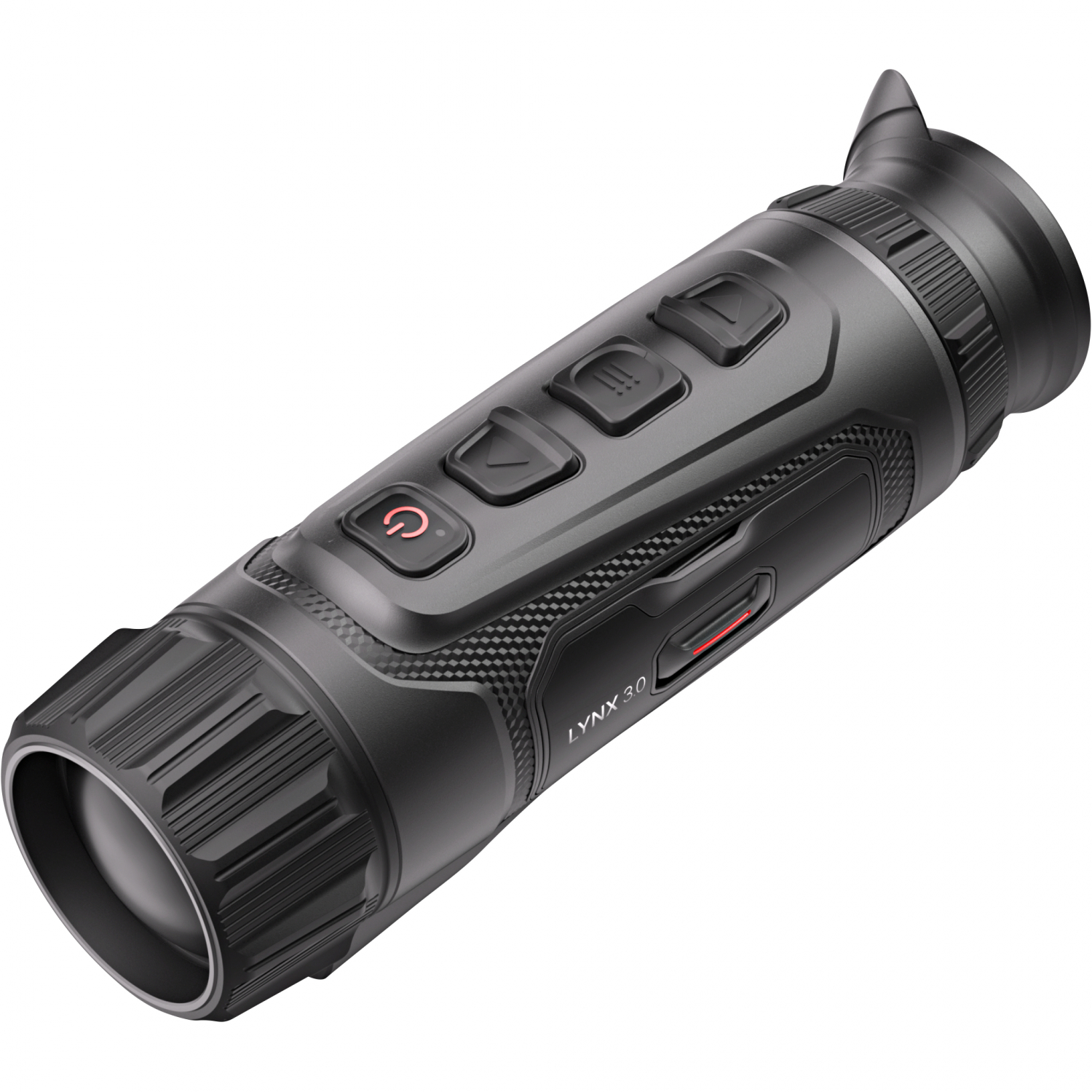

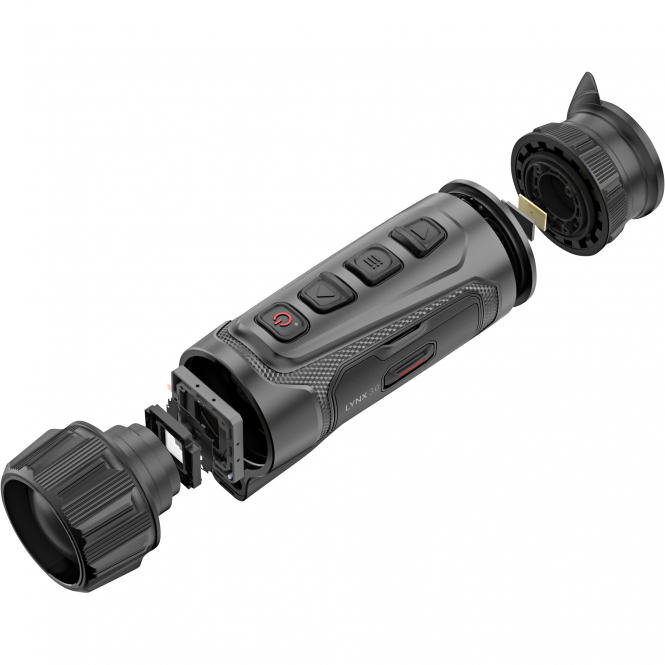

Hikmicro Lynx LQ35L 3.0
Compact thermal imaging monocular with shutterless technology
The Hikmicro Lynx 3.0 is a compact thermal imaging monocular that delivers smooth, uninterrupted image display thanks to proven shutterless technology. Unlike conventional devices, there is no brief freezing of the image during calibration, meaning movements can be tracked continuously at all times and concentration remains fully focused on the target.
Compact design for maximum portability

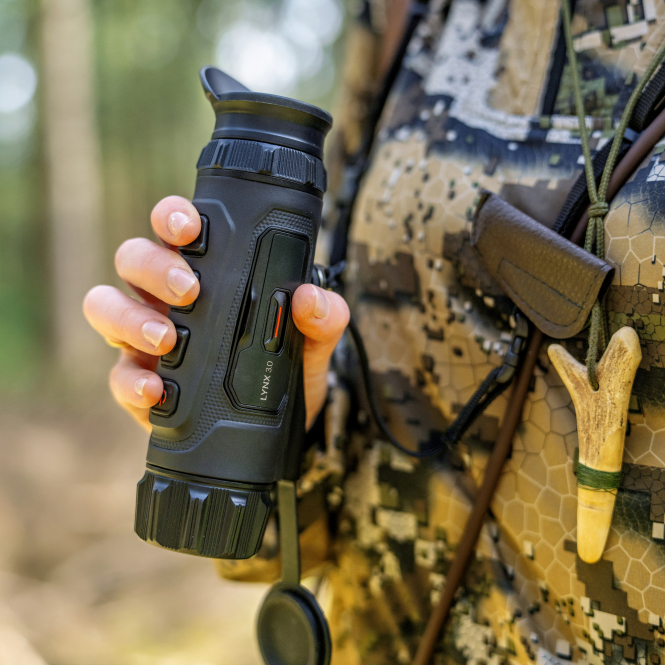

The device was specifically designed for high portability and impresses with its compact build, measuring less than 170 mm in length. This means it can be easily stowed in a jacket or trouser pocket and is always to hand. Weighing max. 410 g, the Lynx 3.0 is particularly suitable for longer field operations where low weight and freedom of movement are crucial.
Quick start-up and reliable operational readiness
With a start-up time of around 2 seconds, the device is ready for use in no time – regardless of whether it is in standby mode, automatic screen-off mode or completely switched off. This means the surroundings can be monitored without delay as soon as a situation arises.
Long-lasting power supply and smart connectivity
The practical battery life of at least 4 hours enables longer observations in the field. Thanks to the replaceable battery, the device remains flexible to use even during extended operations. Via integrated dual-band Wi-Fi (2.4/5 GHz), the Lynx 3.0 can be connected to the Hikmicro Sight app to view thermal images live, save them and share them directly via a smartphone.
Hikmicro Lynx LQ35L 3.0
The 15 mK thermal sensitivity enables precise detection of even the slightest temperature differences and ensures that even faint heat signatures are reliably visible. This allows animals to be reliably identified even under difficult conditions.
With the Image Pro 3.0 and Zoom Pro AI algorithms, the image remains detailed and sharp both in normal view and when zoomed in. This allows contours, movements and proportions to be clearly assessed even at greater distances.
The 0.49-inch AMOLED display delivers a high-quality, high-contrast image and supports comfortable viewing over extended periods. In addition, this model features an integrated laser rangefinder, which enables precise distance measurement to the target and thus further improves situational assessment.
Thermal Module
- Image Sensor: VOx Uncooled Focal Plane Arrays
- Max. Resolution: 640 x 512
- Frame Rate: 50Hz
- Pixel Interval: 12μm
- Response Waveband: 8μm to 14μm
- NETD: Less than 15 mK (@25°C),F#=1.0
- Lens (Focal Length): 35mm, f1.0
- Detection Range: 1800m
- Focus Mode: Focus Ring
- Field of View(H × V), Degrees / m @100m: 12.5° x 7.5°/21.9m x 13.2m
- Min. Focusing Distance: 3.5m
- Magnification: 1.9x - 15.2x (8x)
Image Display
- Display: 1920x1080, 0.49 inch, AMOLED
- Contrast Adjustment: Yes
- Brightness Adjustment: Yes
- Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Exit Pupil: 6mm
- Eye Relief: 20mm
- Diopter (Range): -5D to +3D
- Tone Adjustment: Cold, Warm
- Zoom Pro: Yes
- HSIS (HIKMICRO Shutterless Image System): Yes
- Image Pro 3.0: Yes
General
- Protection Level: IP67
- Weight: 410g with battery
- Dimension: 169.6 x 53.6 x 49.5 mm
- Working Temperature: From -30°C to 45°C (-22°F to 113°F) | Humidity: 90% or Less
System
- Built-in Memory: Built-in EMMC (64 GB)
- Record Video: Yes
- Capture Snapshot: Yes
- Hotspot: 2.4 GHz/5 GHz Wi-Fi Waveband
- Standby Mode: Yes
- PIP: Yes
- Hot Track: Yes
- Distance Measurement: Yes
- Audio Recording: Yes
- Local Album: Yes
Power Supply
- Battery Type:
- Battery Operating Time: 4.5-hour continuous running with hotspot on (@25°C) | 4-hour continuous running with hotspot on (@-20°C)
- Type-C Power Supply: 5V DC, 2A | Supports External Power Supply, Support Direct Charging
Laser Rangefinder
- Safety Class for Laser: Class 1
- Wavelength: 905nm
- Min. Measuring Range: 10m
- Max. Measuring Range: 1000m
- Measurement Accuracy: ±1m
