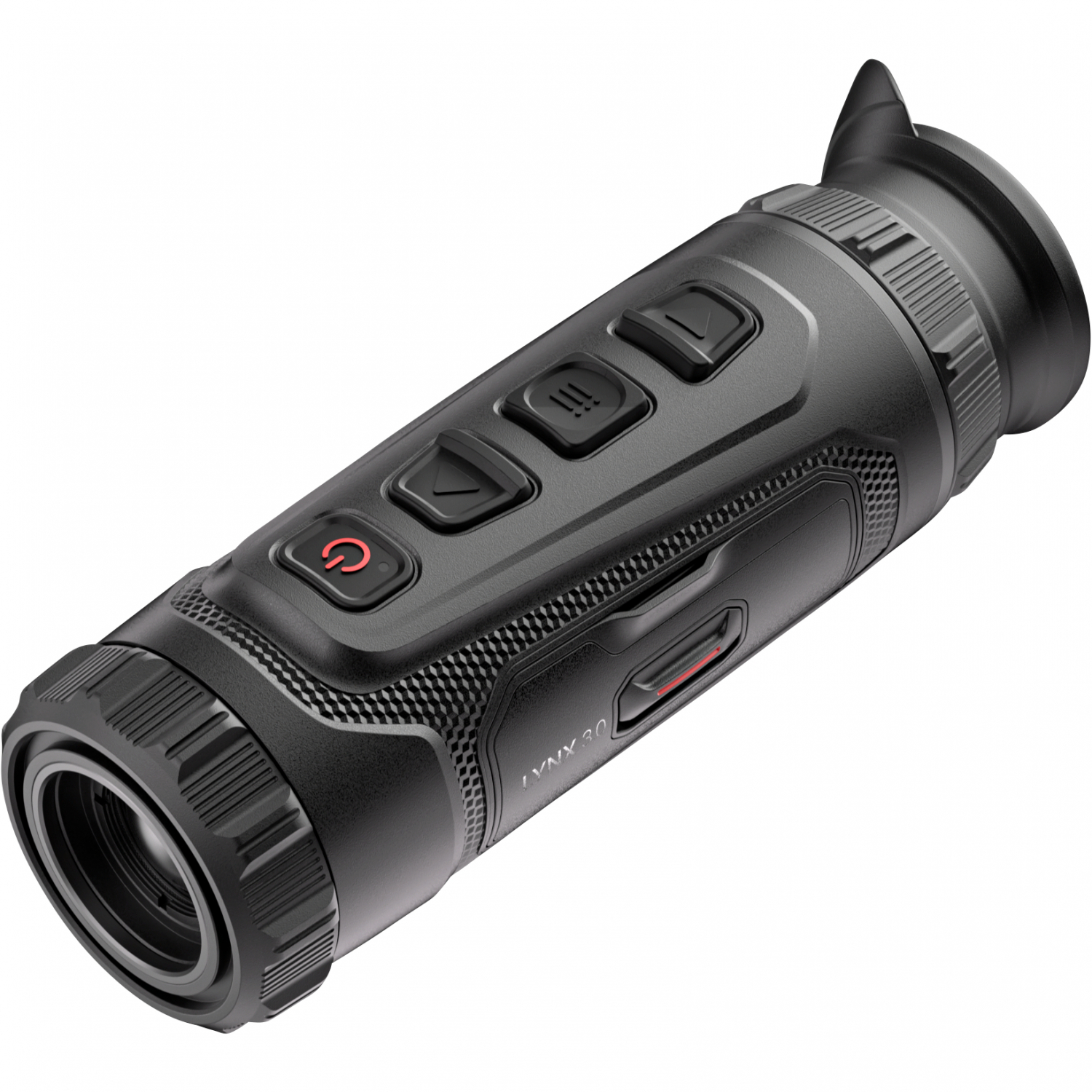

Hikmicro Lynx LH19 3.0
Compact thermal imaging monocular with shutterless technology
The Hikmicro Lynx 3.0 is a compact thermal imaging monocular that delivers smooth, uninterrupted image display thanks to proven shutterless technology. Unlike conventional devices, there is no brief freezing of the image during calibration, meaning movements can be tracked continuously at all times and concentration remains fully focused on the target.

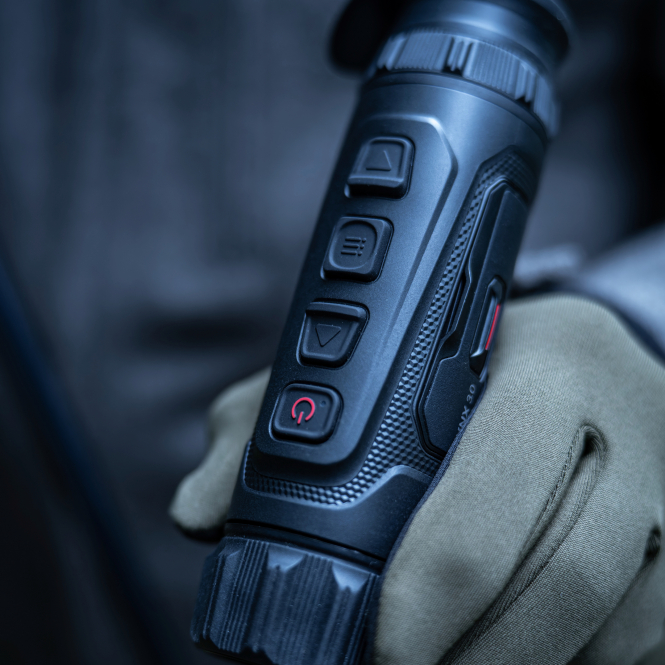

Compact design for maximum portability
The device was specifically designed for high portability and impresses with its compact build, measuring less than 170 mm in length. This means it can be easily stowed in a jacket or trouser pocket and is always to hand. Weighing max. 410 g, the Lynx 3.0 is particularly suitable for longer field operations where low weight and freedom of movement are crucial.
Quick start-up and reliable operational readiness
With a start-up time of around 2 seconds, the device is ready for use in no time – regardless of whether it is in standby mode, automatic screen-off mode or completely switched off. This means the surroundings can be monitored without delay as soon as a situation arises.
Long-lasting power supply and smart connectivity

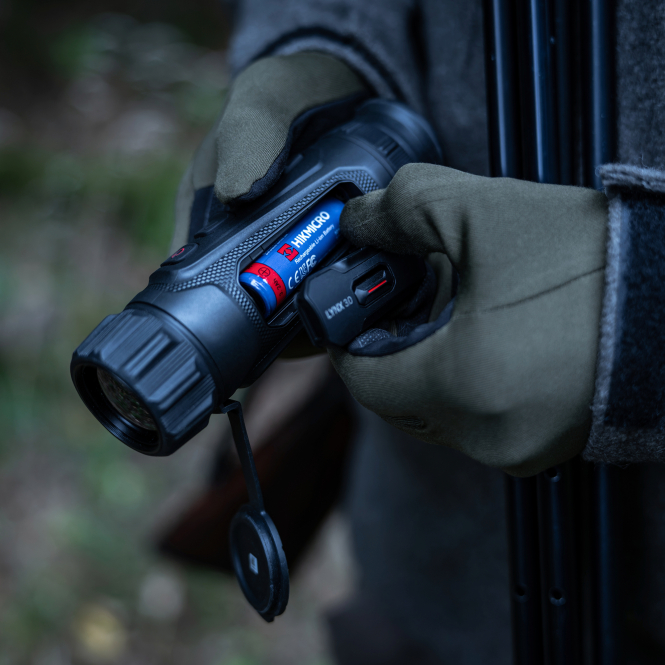

The practical battery life of at least 4 hours enables longer observations in the field. Thanks to the replaceable battery, the device remains flexible to use even during extended operations. Via integrated dual-band Wi-Fi (2.4/5 GHz), the Lynx 3.0 can be connected to the Hikmicro Sight app to view thermal images live, save them and share them directly via a smartphone.
Hikmicro Lynx LH19 3.0
Very high thermal sensitivity enables the reliable detection of even weak heat signatures, even under difficult conditions such as fog, dense vegetation or at night. In addition, Image Pro 3.0 and Zoom Pro ensure a clear, detailed display even when zooming in on specific areas. The integrated AMOLED display delivers high-contrast image reproduction and supports fatigue-free observation.
Thermal Module
- Image Sensor: VOx Uncooled Focal Plane Arrays
- Max. Resolution: 384 x 288
- Frame Rate: 50Hz
- Pixel Interval: 12μm
- Response Waveband: 8μm to 14μm
- NETD: Less than 15 mK (@25°C),F#=1.0
- Lens (Focal Length): 19mm, f1.0
- Detection Range: 900m
- Focus Mode: Focus Ring
- Field of View(H × V), Degrees / m @100m: 13.8° x 8.4°/24.2m x 14.7m
- Min. Focusing Distance: 3m
- Magnification: 1.9x - 15.2x (8x)
Image Display
- Display: 1920x1080, 0.49 inch, AMOLED
- Contrast Adjustment: Yes
- Brightness Adjustment: Yes
- Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Exit Pupil: 6mm
- Eye Relief: 20mm
- Diopter (Range): -5D to +3D
- Tone Adjustment: Cold, Warm
- Zoom Pro: Yes
- HSIS (HIKMICRO Shutterless Image System): Yes
- Image Pro 3.0: Yes
General
- Protection Level: IP67
- Weight: 331 g with battery
- Dimension: 158.4x 53.6 x 49.5 mm
- Working Temperature: From -30°C to 45°C (-22°F to 113°F) | Humidity: 90% or Less
System
- Built-in Memory: Built-in EMMC (64 GB)
- Record Video: Yes
- Capture Snapshot: Yes
- Hotspot: 2.4 GHz/5 GHz Wi-Fi Waveband
- Standby Mode: Yes
- PIP: Yes
- Hot Track: Yes
- Distance Measurement: Yes
- Audio Recording: Yes
- Local Album: Yes
Power Supply
- Battery Type: Replaceable and Rechargeable Li-ion 18650 Battery
- Battery Operating Time: 5-hour continuous running with hotspot on (@25°C) | 4.5-hour continuous running with hotspot on (@-20°C)
- Type-C Power Supply: 5V DC, 2A | Supports External Power Supply, Support Direct Charging
