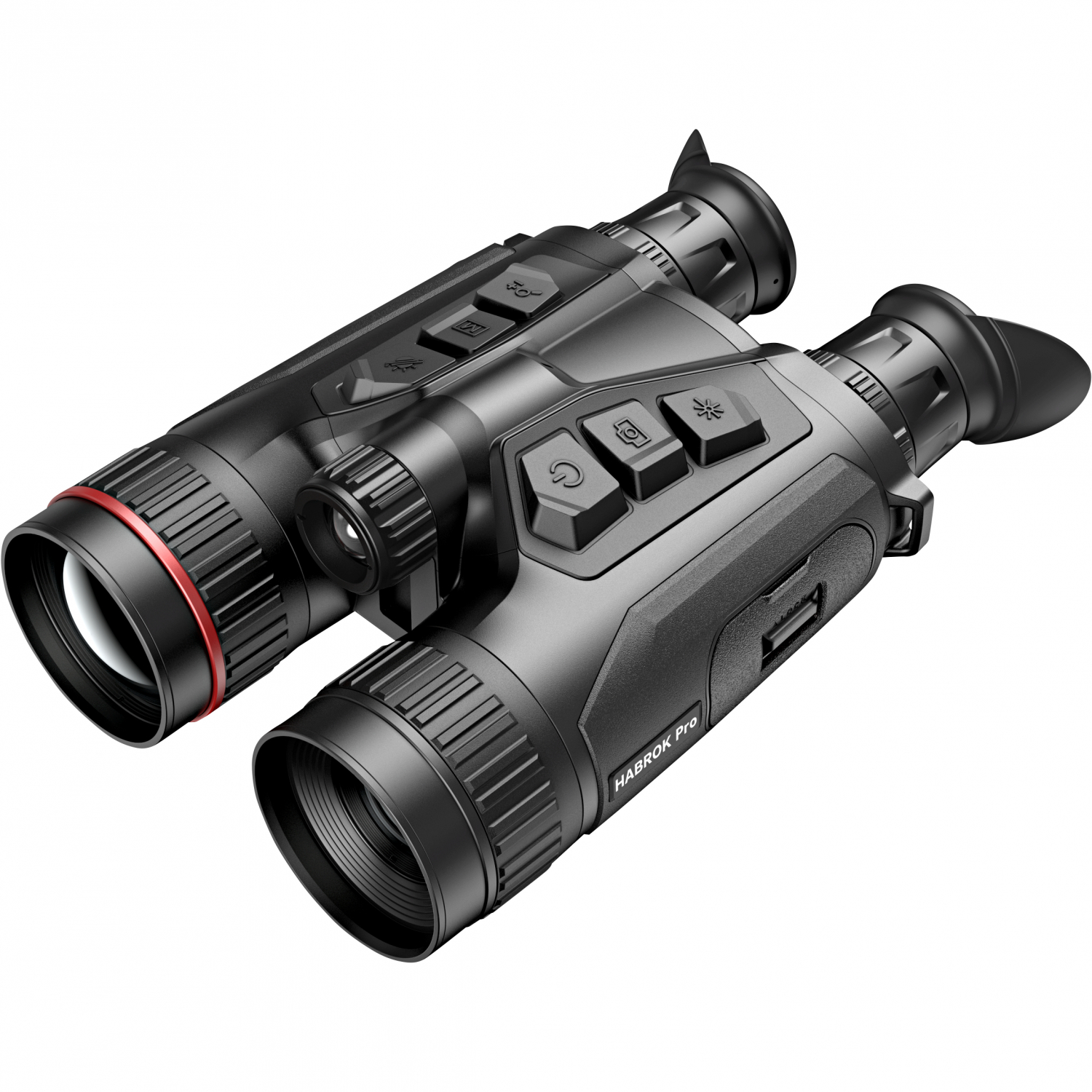

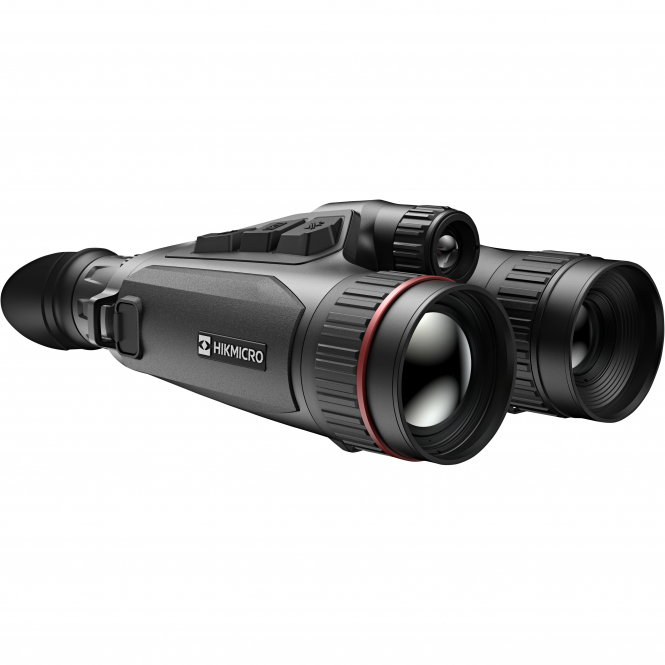

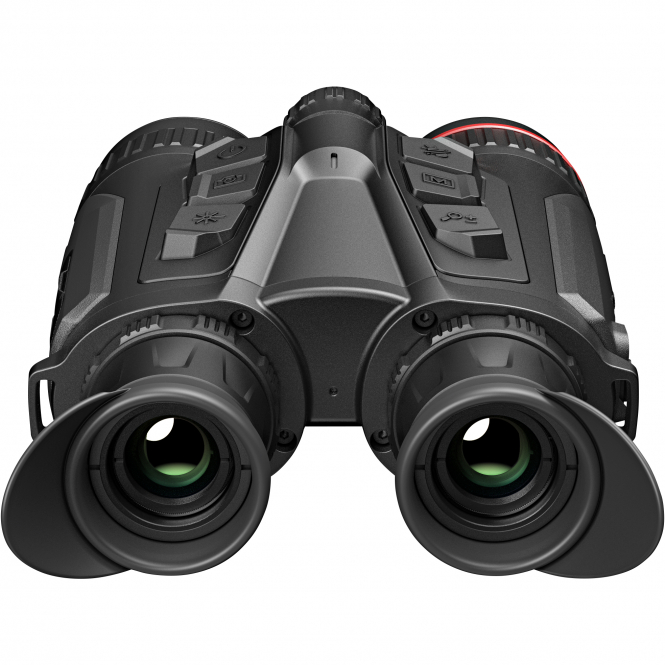

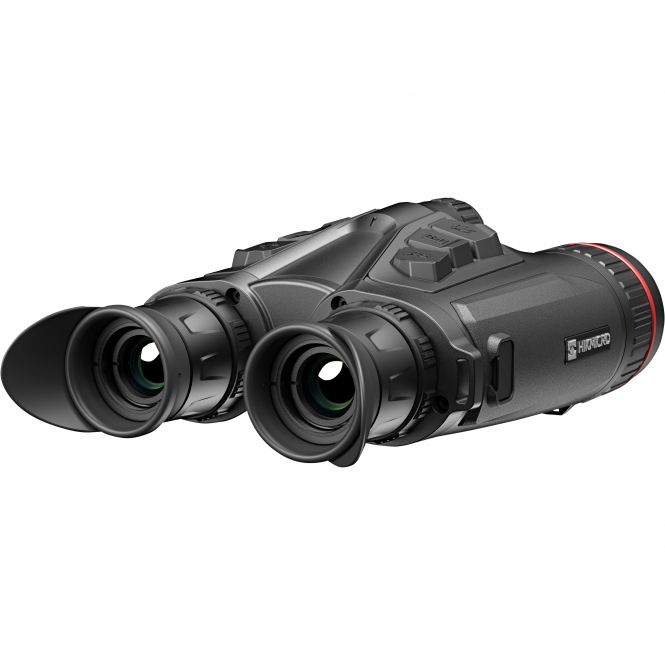

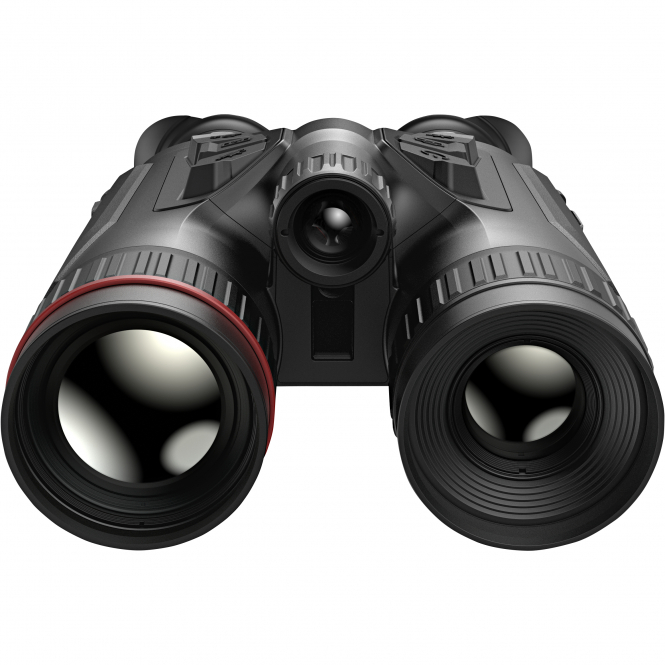

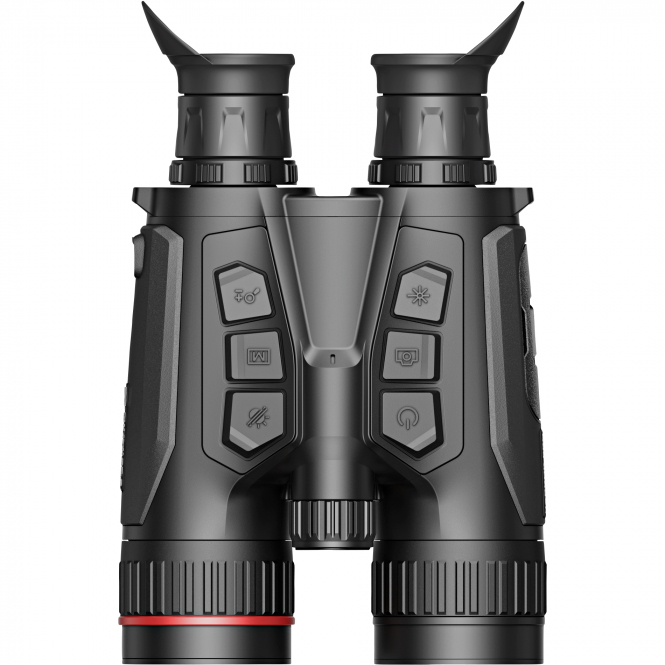

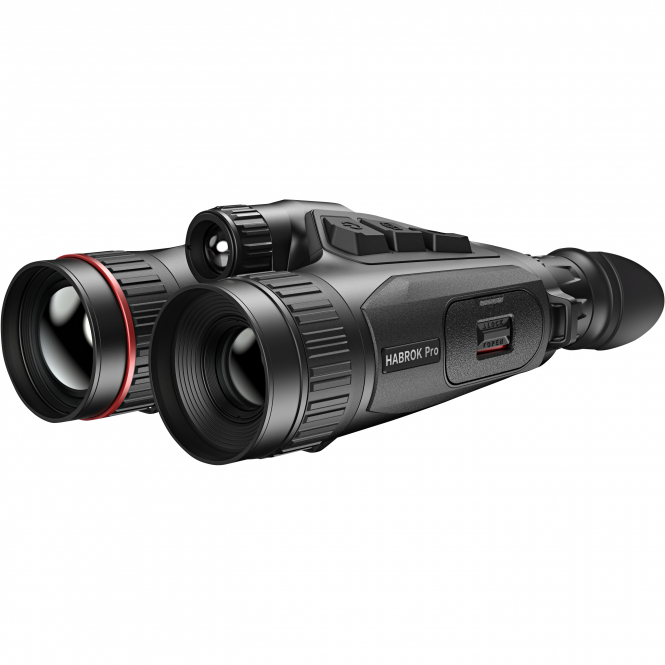

Hikmicro Habrok Pro HQ50LN Binoculars
The HIKMICRO HABROK Pro HQ50LN multi-spectrum binoculars combine thermal imaging and optical technologies for use in demanding conditions. The 640 × 512 thermal imaging detector with a NETD of < 15 mK and a 50 mm F1.0 lens enables a thermal detection range of up to 2,600 m. The 4K CMOS detector, the 940 nm IR illuminator and the 1000 m laser rangefinder expand the range of applications for hunting, birdwatching, animal tracking, rescue operations and maritime scenarios.
Specifications:
- Image sensor: Uncooled VOx focal plane arrays
- Max. resolution: 640 x 512
- Frame rate: 50 Hz
- Pixel pitch: 12 μm
- Wavelength range: 8 μm to 14 μm
- NETD: Less than 15 mK (@25 °C), F#=1.0
- Lens (focal length): 50 mm, F1.0
- Focusing mode: Focus ring
- Detection range: 2600 m
- Min. focusing distance: 5 m
- Magnification: 4.3x–20.0x (4.6x)
- Field of view (H × V), degrees / m at 100 m: 8.8° × 5.3° / 15.4 m × 9.3 m
- Image sensor: 1/1.8'' progressive-scan CMOS
- Max. resolution: 3840 × 2160
- Focal length: 60 mm, F2.2
- Min. working distance: 3 m
- Focus mode: Focus ring
- Magnification: 5.5x – 22.0x (4x)
- Field of view (H × V), degrees/m at 100 m: 7.3° × 4.1° / 12.6 m × 7.2 m
- Smart IR: Yes
- IR illuminator wavelength: 940 nm
- Night-time viewing range: 350 m
- Replaceable IR illuminator: Yes
- Display: 0.49 inches, OLED, 1920 × 1080
- Palettes: Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto
- FFC mode (Flat Field Correction): Auto, Manual, External Correction
- Exit pupil: 8 mm
- Eye relief: 15 mm
- Diopter adjustment (range): -5 D to +3 D
- Brightness adjustment: Yes
- Colour tone adjustment: Cool, Warm
- Contrast adjustment: Yes
- Zoom Pro: Yes
- Image Pro 2.0: Yes
- Video recording: Yes
- Take snapshot: Yes
- Audio recording: Yes
- Standby mode: Yes
- Storage: Integrated EMMC (64 GB)
- PIP: Yes
- Hotspot: Yes
- Hot Track: Yes
- Digital magnetic compass: Yes
- GPS: Yes
- Local album: Yes
- Battery type: Removable and rechargeable Li-ion battery
- Battery life: 10.5 hours (25 °C, with hotspot off, LRF and Zoom Pro on)
- Type-C power supply: 5 V/9 V DC, 3 A, supports external power supply, supports direct charging
- Protection class: IP67
- Dimensions: 142.9 mm × 79.7 mm × 230.5 mm (5.6″ × 3.1″ × 9.1″)
- Weight: 975 g with battery
- Operating temperature: -30 °C to +55 °C
- Interpupillary distance adjustment range: 60 mm to 74 mm
- Mounting adapter: 1/4“-20-UNC
- Laser safety class: Class 1
- Wavelength: 905 nm
- Max. measuring range: 1000 m
- Measurement accuracy: ±1 m
- Min. measuring range: 10 m
