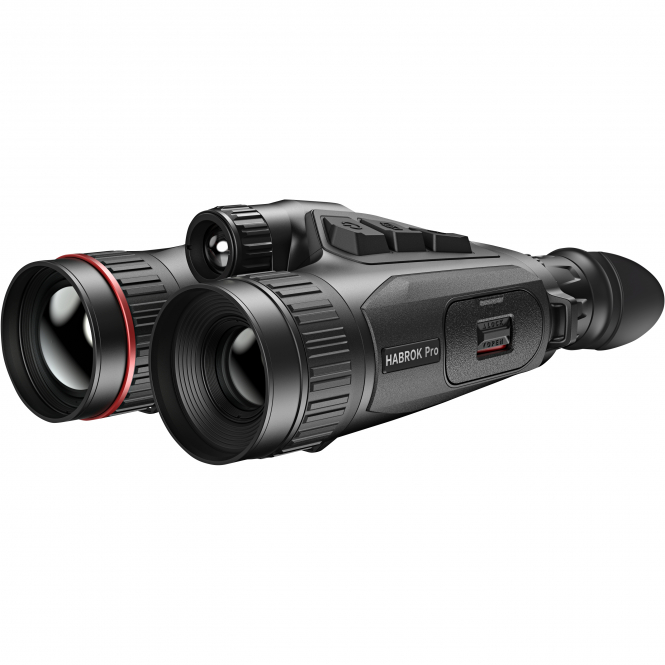

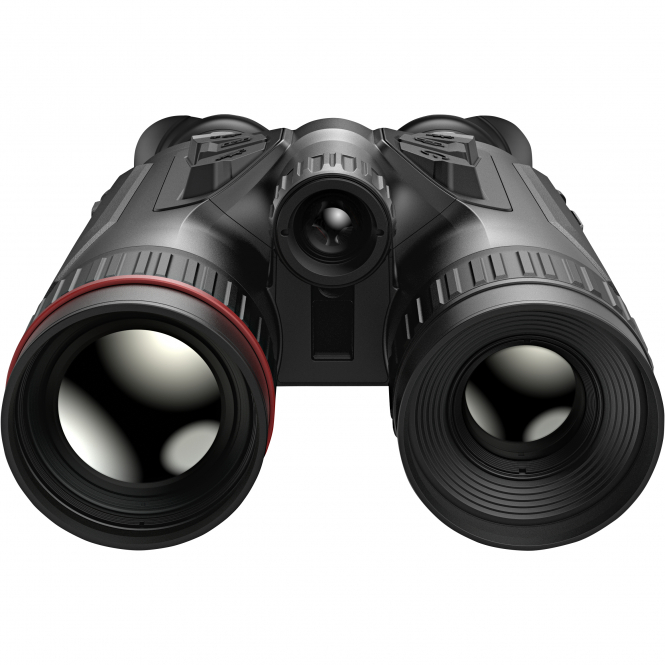

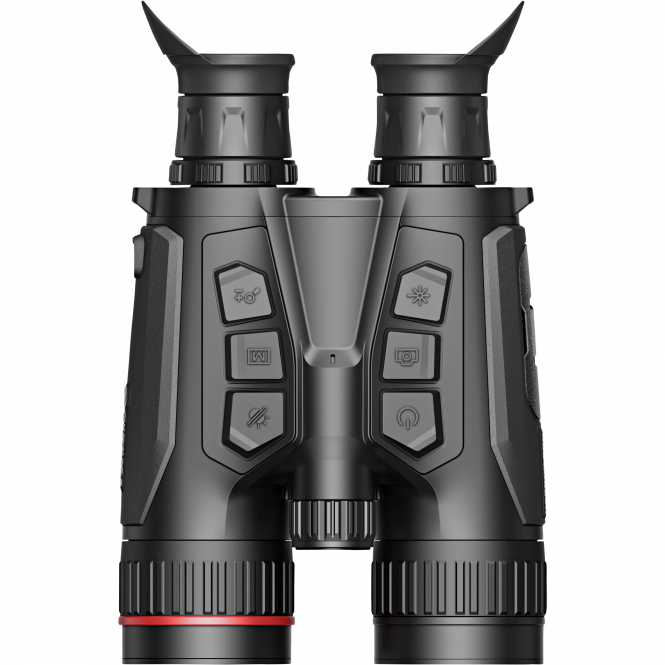

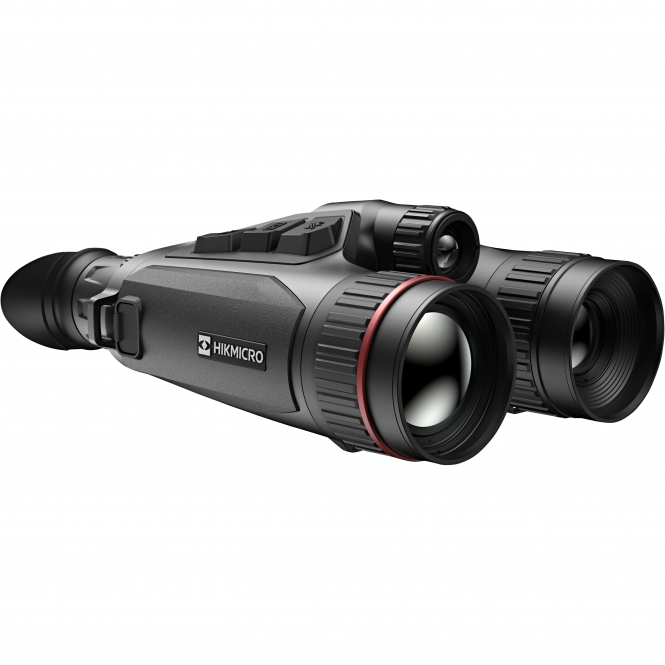

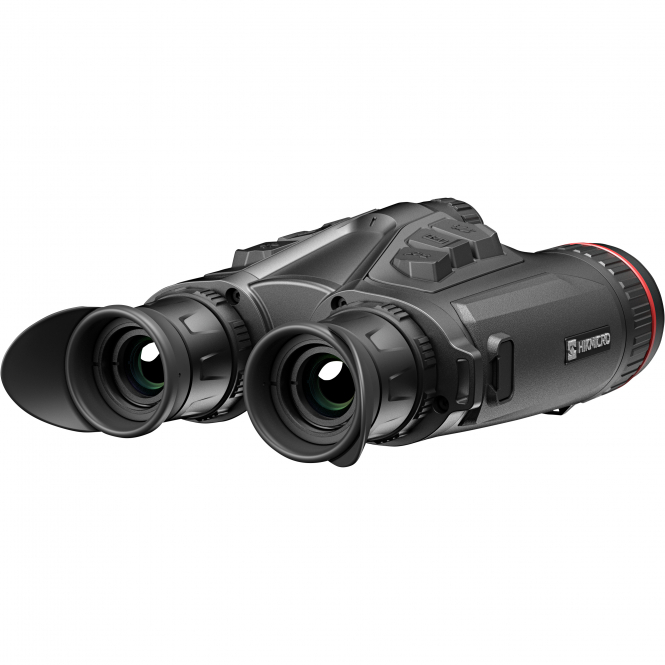

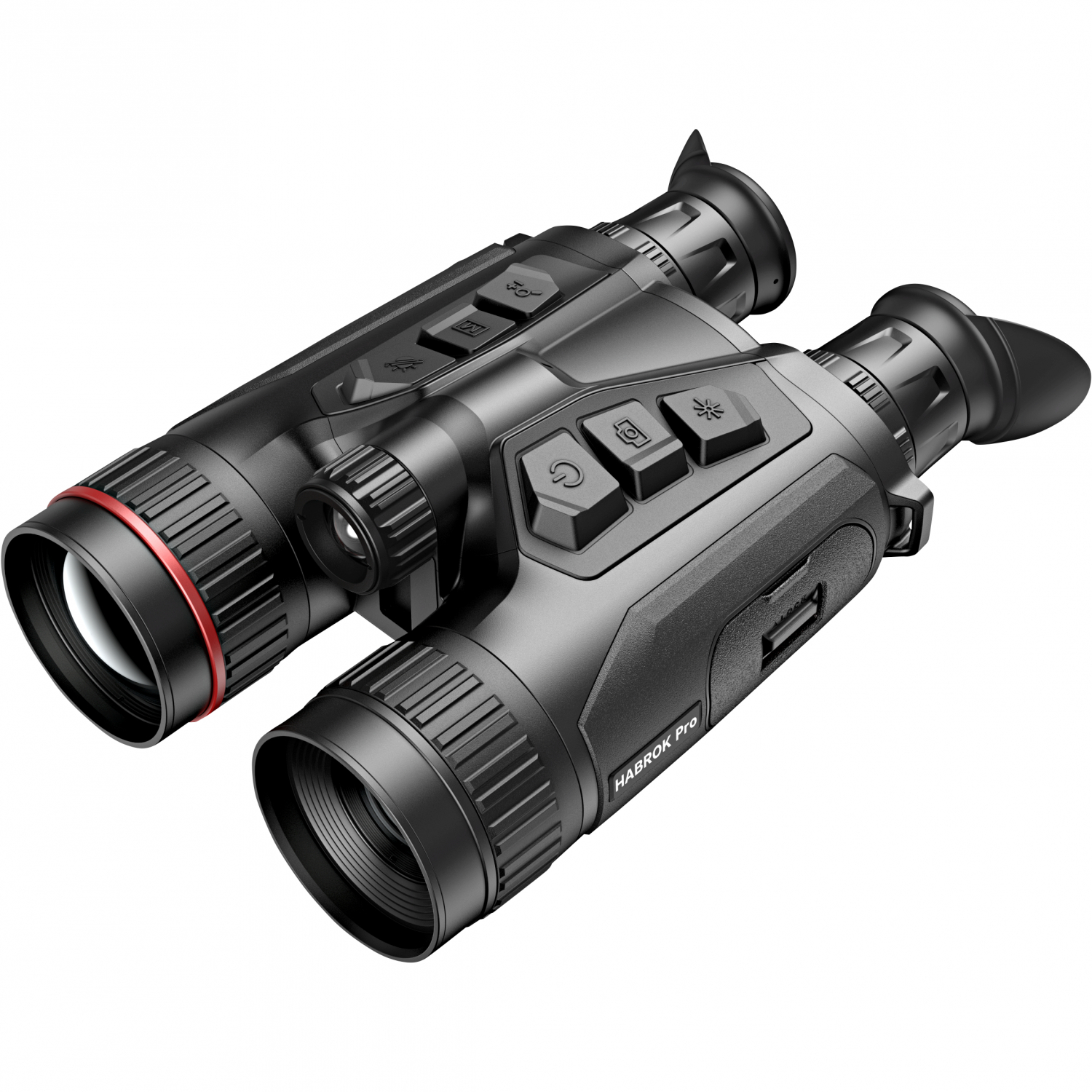

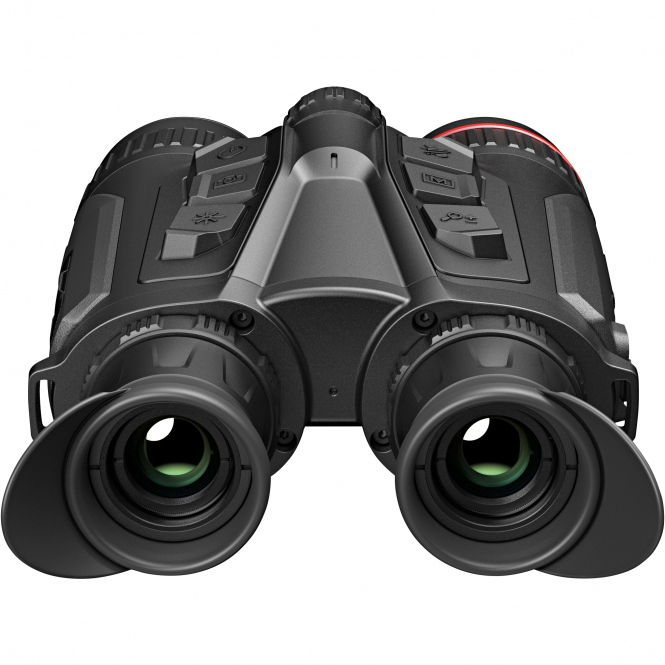

Hikmicro Habrok Pro HQ50L Binoculars
The HIKMICRO HABROK Pro HQ50L multi-spectrum binoculars combine thermal imaging and optical technologies for use in demanding conditions. They feature a 640 × 512 thermal imaging detector with a NETD of < 15 mK and a 50 mm objective lens, as well as a 4K CMOS detector. The 1000 m laser rangefinder and the interchangeable 850 nm IR illuminator make it suitable for hunting, birdwatching, animal tracking, rescue operations and maritime applications.
Specifications:
- Image sensor: VOx uncooled focal plane arrays
- Max. resolution: 640 x 512
- Frame rate: 50 Hz
- Pixel pitch: 12 μm
- Response wavelength range: 8 μm to 14 μm
- NETD: Less than 15 mK (@25°C), F#=1.0
- Lens (focal length): 50 mm, F1.0
- Focus mode: Focus ring
- Detection range: 2600 m
- Minimum focusing distance: 5 m
- Magnification: 4.3x–20.0x (4.6x)
- Field of view (H × V), cut-off / m @100m: 8.8° × 5.3° / 15.4m × 9.3m
- Image sensor: 1/1.8'' progressive scan CMOS
- Max. resolution: 3840 x 2160
- Focal length: 60 mm, F2.2
- Min. working distance: 3 m
- Focus mode: Focus ring
- Magnification: 5.5x - 22.0x (4x)
- Field of view (H × V), degrees/m @100 m: 7.3° x 4.1° / 12.6 m × 7.2 m
- Intelligent IR: Yes
- IR illumination wavelength: 850 nm
- Night-time viewing range: 400 m
- Replaceable IR illuminator: Yes
- Display: 0.49 inches, OLED, 1920 × 1080
- Palettes: Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto
- FFC (Flat Field Correction) mode: Auto, Manual, External correction
- Exit pupil: 8 mm
- Eye relief: 15 mm
- Diopter (range): -5D~+3D
- Brightness adjustment: Yes
- Colour adjustment: Cool, warm
- Contrast adjustment: Yes
- Zoom Pro: Yes
- Image Pro 2.0: Yes
- Video recording: Yes
- Snapshot capture: Yes
- Audio recording: Yes
- Standby mode: Yes
- Storage: Integrated EMMC (64 GB)
- PIP: Yes
- Hotspot: Yes
- Hot track: Yes
- Digital Magnetic Compass: Yes
- GPS: Yes
- Local Album: Yes
- Battery type: Removable and rechargeable Li-ion battery
- Battery life: 10.5 hours (25 °C, with hotspot off, LRF and Zoom Pro)
- Type-C Power Supply: 5V/9V DC, 3A Supports External Power Supply, Supports Direct Charging
- Protection Rating: IP67
- Dimensions: 142.9 mm × 79.7 mm × 230.5 mm (5.6‘ × 3.1’ × 9.1")
- Weight: 975g with battery pack
- Operating temperature: -30°C ~ +55°C
- Interpupillary adjustment range: 60 mm to 74 mm
- Mounting adapter: 1/4“-20-UNC
- Laser safety class: Class 1
- Wavelength: 905 nm
- Max. measuring range: 1000 m
- Measurement accuracy: ±1 m
- Min. measuring range: 10 m
