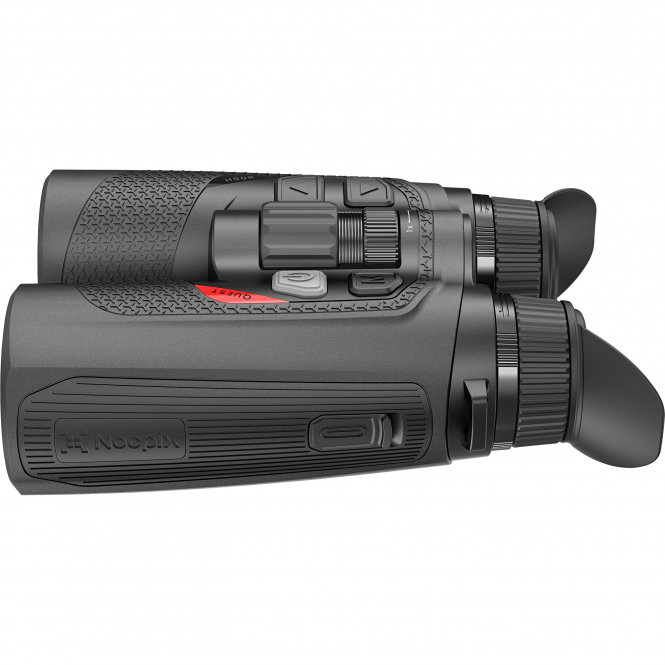

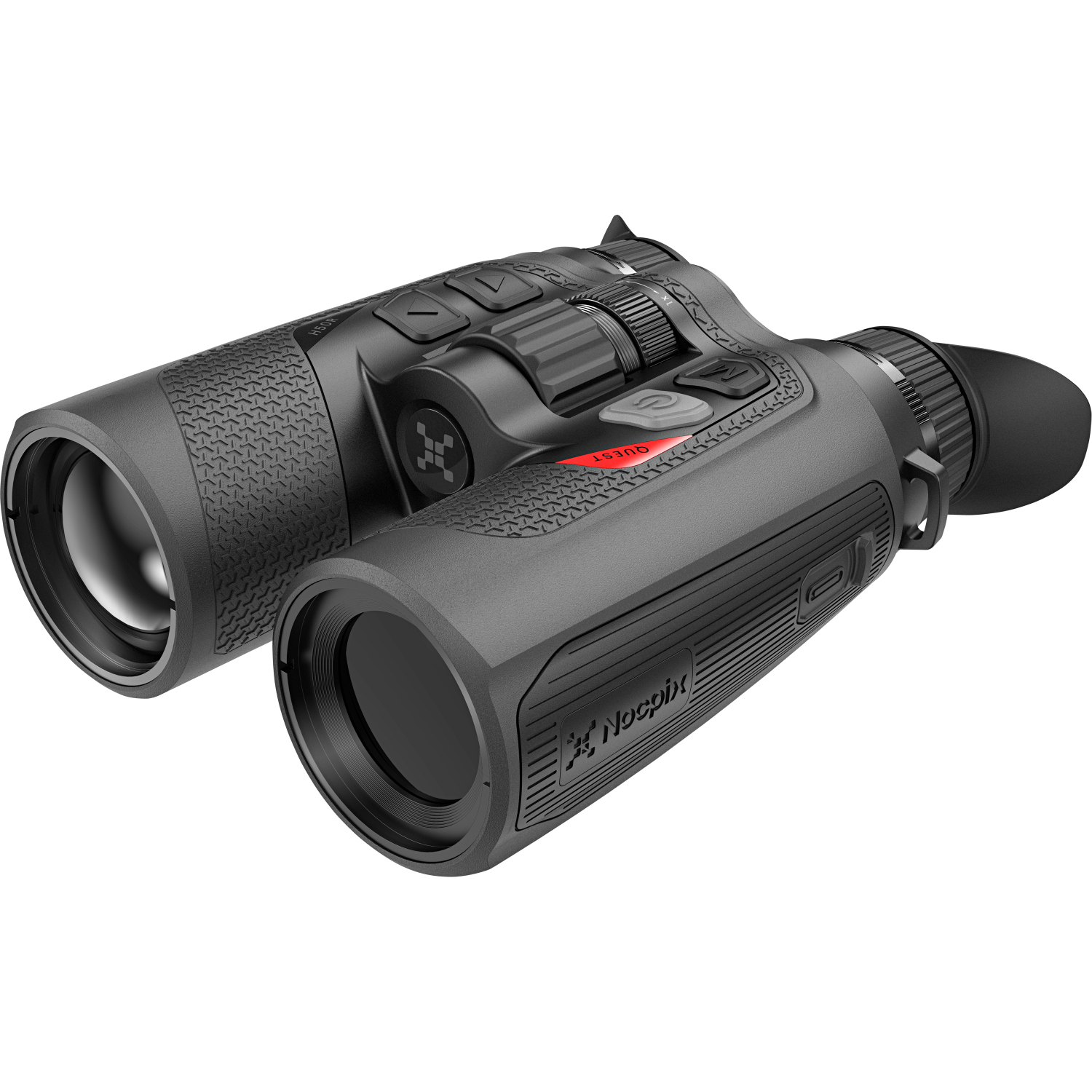

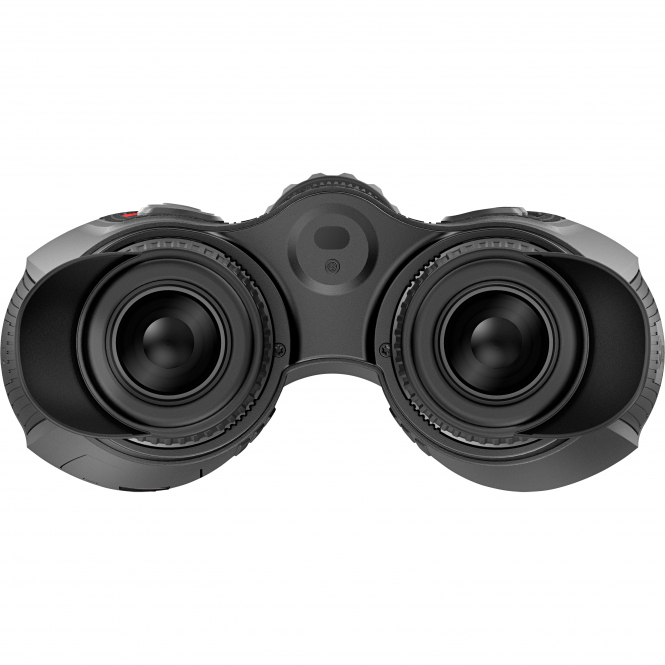

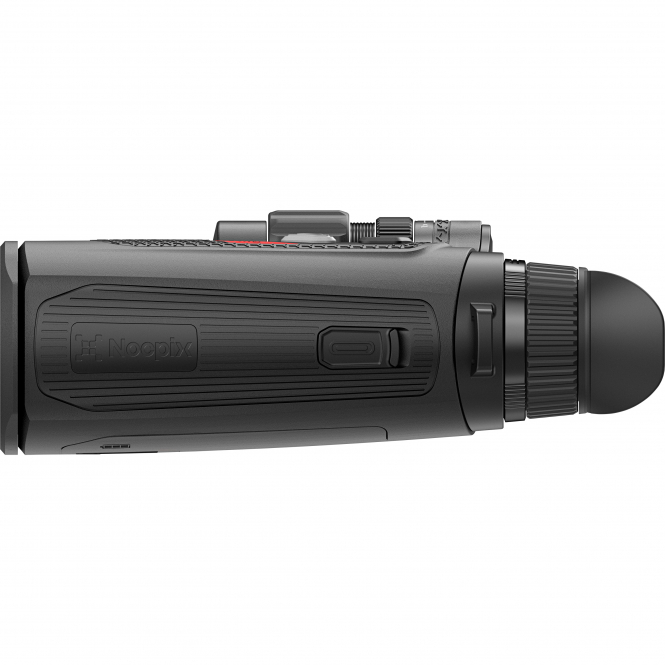

Binocular Quest L35R (with LRF)
Modern design and clear image quality
The Quest binoculars impress with their modern, robust design and are specially designed for versatile outdoor use. The Vision+ system and the R+ image algorithm ensure particularly clear, detailed images that are displayed smoothly and gently on the 1920 × 1200 AMOLED display at 60 Hz.
Precise measurements and convenient operation

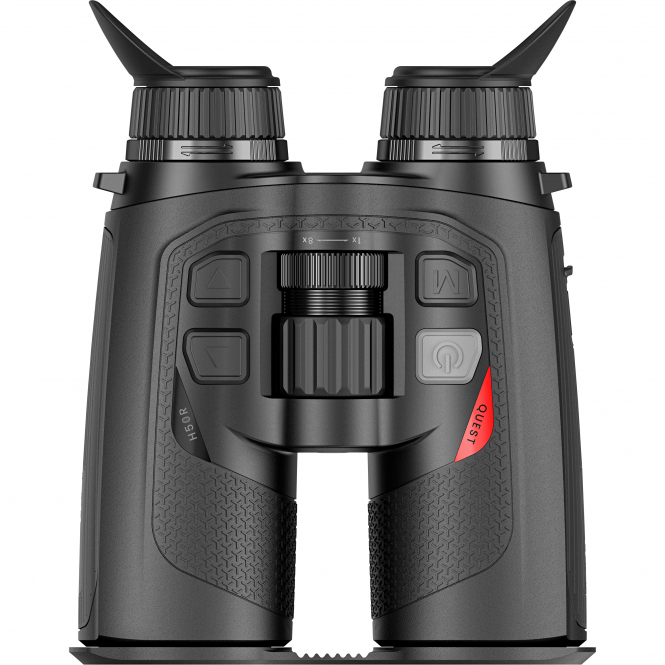

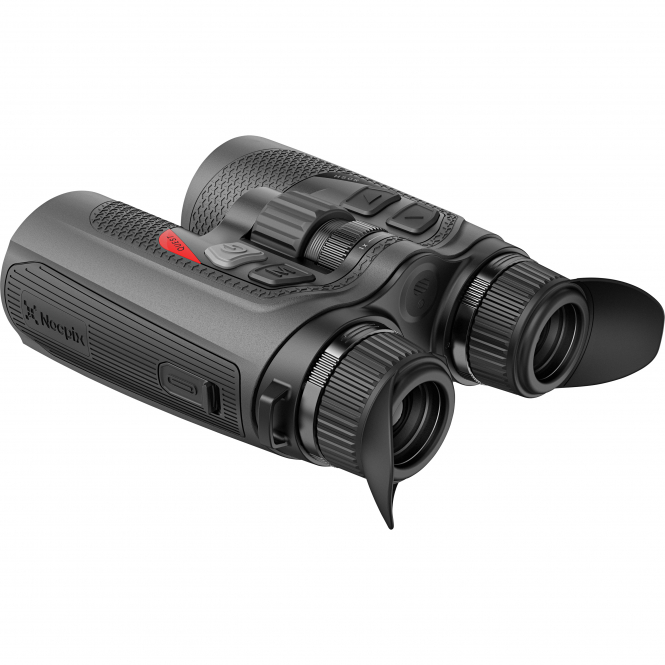

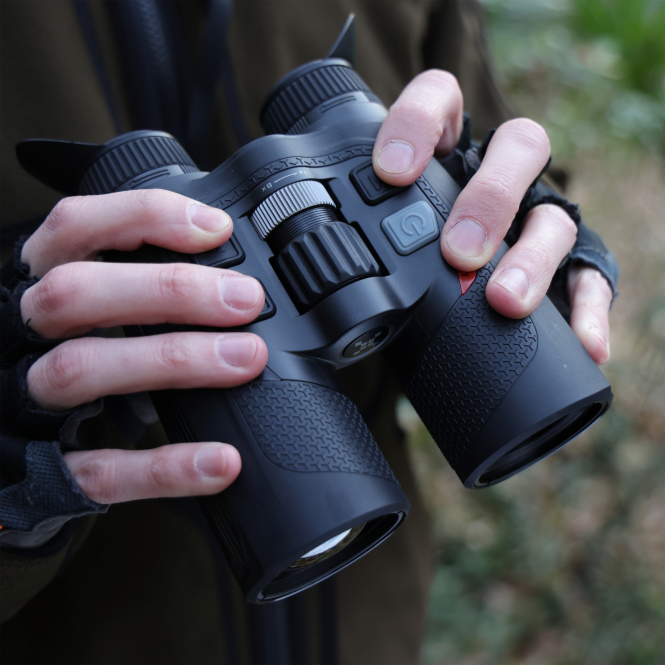

An integrated laser rangefinder enables precise distance measurements of up to 1000 meters - ideal for hunting, nature observation or exploration. With a weight of less than 700 g, ergonomic design and non-slip solid rubber coating, the binoculars sit securely in the hand. The simplified 4-button layout and centrally positioned scroll wheels enable intuitive one-handed operation.
Reliable and flexible in use

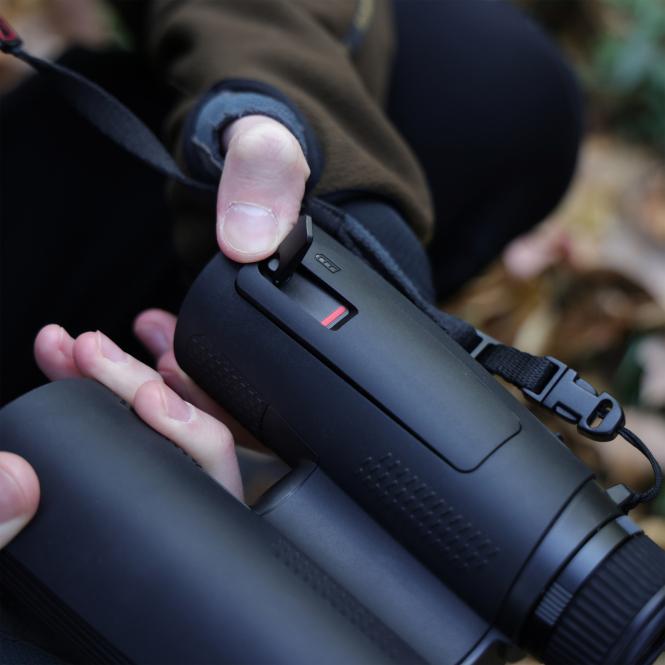

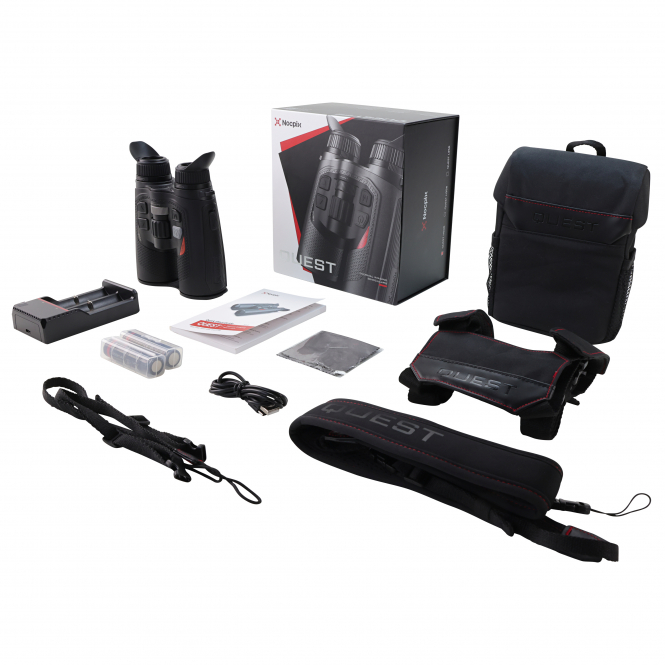

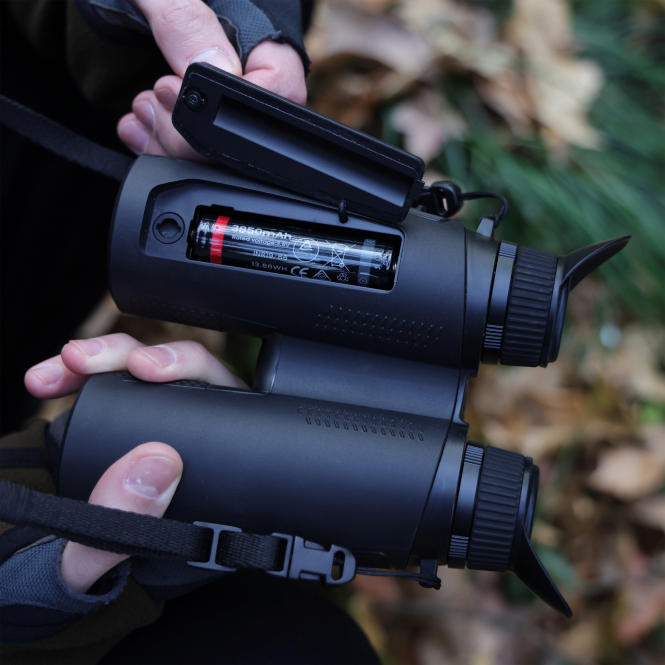

The dual-battery design with integrated and replaceable 18650 battery allows quick battery replacement and uninterrupted use. The IP67 certification and robust design protect against dust and water. With 64 GB of internal memory, a special carrying case and customization options such as 25 mm exit relief, 10 mm exit pupil and ±5 D diopter compensation, Quest binoculars are flexible and reliable - even at temperatures from -20 °C to +50 °C.
Binocular Quest L35R (with LRF)
Compact thermal imaging technology for precise observations
The Quest L35R offers a detection range of up to 1800 metres and is equipped with a concealed laser rangefinder that enables precise distance measurements up to 1000 metres. The 384×288 pixel sensor with 12 µm pixel pitch and a NETD of ≤15 mK ensures reliable thermal sensitivity and clear images, even in difficult conditions.
Versatile features and reliable power supply

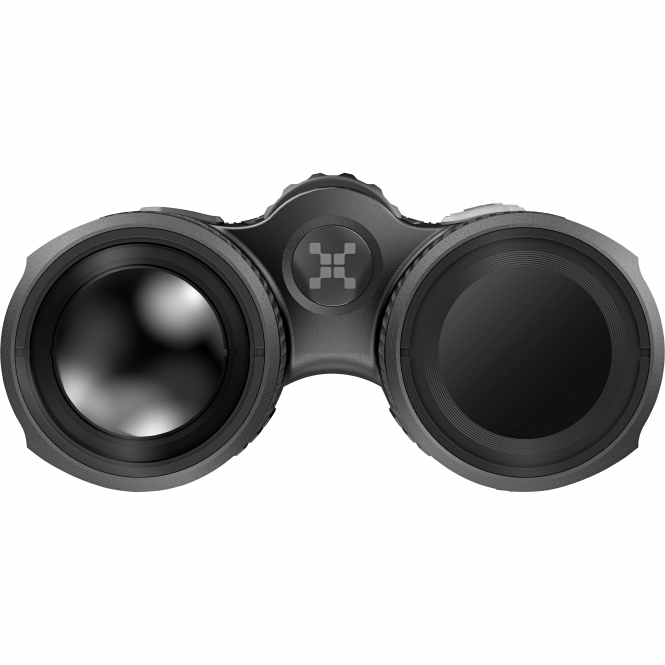

The fast 35 mm F0.9 lens allows 5x to 20x magnification and offers a field of view of 13 metres at a distance of 100 metres. The device has a 1920×1200 pixel AMOLED display, seven colour palettes and is protected against dust and water thanks to its IP67 certification. Power is supplied by an internal 4200 mAh battery and a replaceable 18650 battery, enabling up to 6 hours of operation.
Technical data:
- Thermal sensor: 384x288.12μm,
- NETD: ≤15 mK,
- Frame rate: 60 Hz,
- Objective lens: 35 F0.9,
- Field of view (H × V), °/m at 100 m: 7.5x5.7/13x10,
- Magnification: 5~20x,
- Detection range (target size: 1.7 m x 0.5 m, P(n) = 99%): 1800 m,

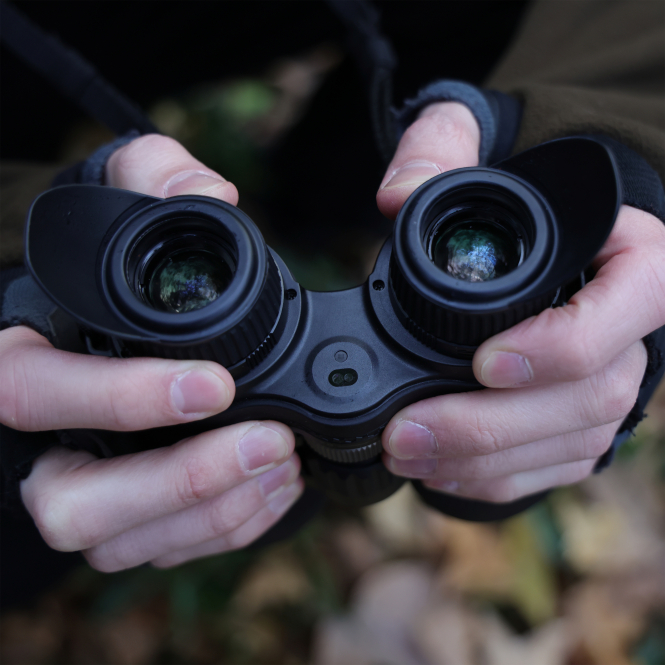

- Exit relief: 25 mm,
- Exit pupil diameter: 10 mm,
- Dioptres: ±5 D,
- Display: 0.72 inch AMOLED,
- Resolution: 1920 x 1200,
- Battery type: Built-in and replaceable 18650,
- Max. operating time (t=22℃): 6 h,
- Laser safety class: Class 1,
- Max. rangefinder distance: 1000,
- Microphone: Supported,
- Storage capacity: 64 GB,
- IP protection class: IP67,
- Operating temperature: -20 ~ +50 ℃,
- Weight (with battery): < 700 g,
- Dimensions: ≤175.4x138x66 mm
