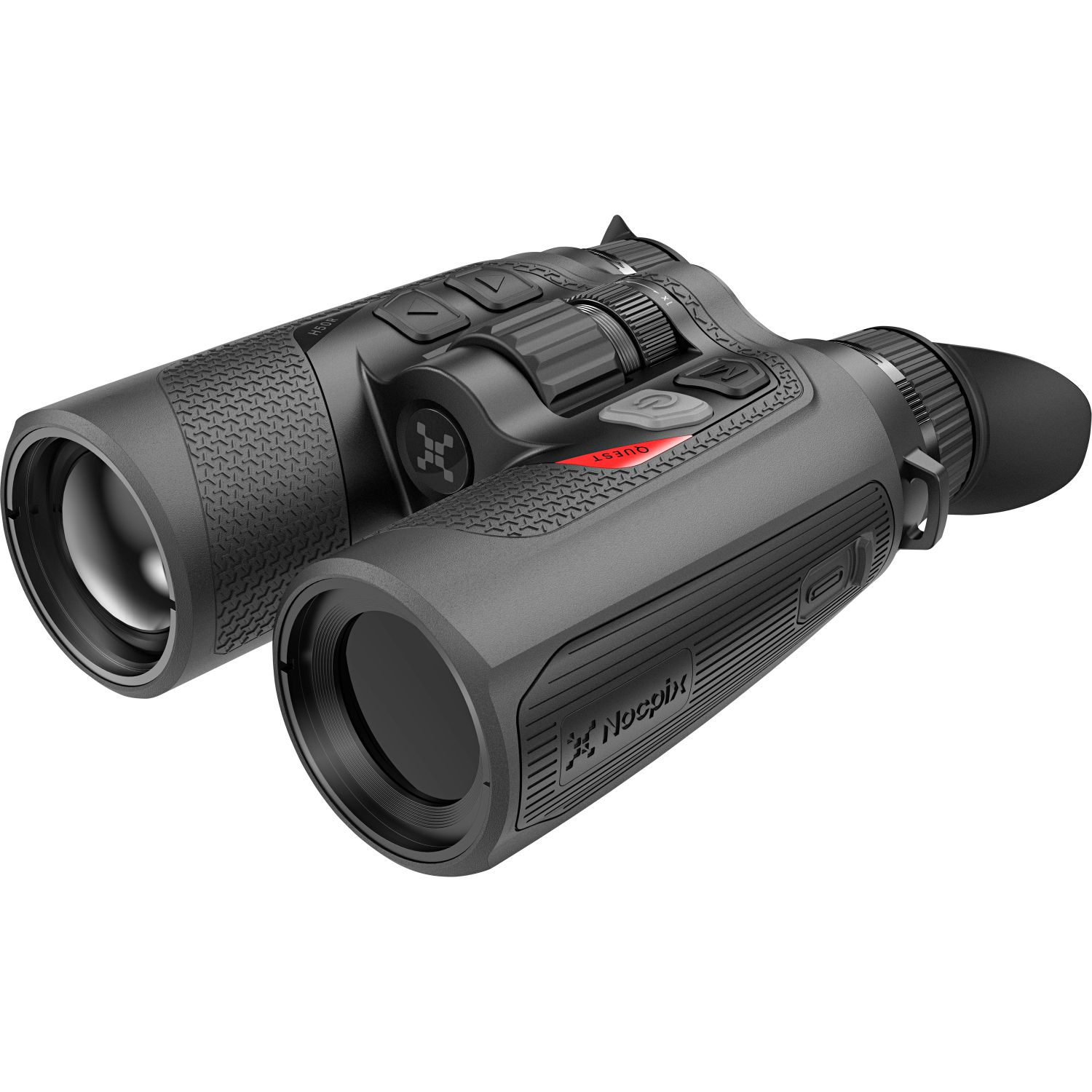

Binocular Quest H35R (with LRF)
Modern design and clear image quality
The Quest binoculars impress with their modern, robust design and are specially designed for versatile outdoor use. The Vision+ system and the R+ image algorithm ensure particularly clear, detailed images that are displayed smoothly and gently on the 1920 × 1200 AMOLED display at 60 Hz.
Precise measurements and convenient operation

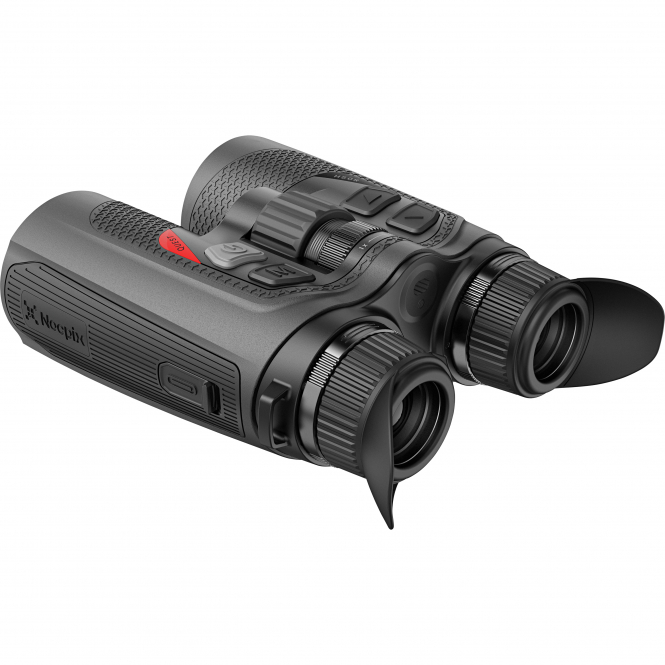

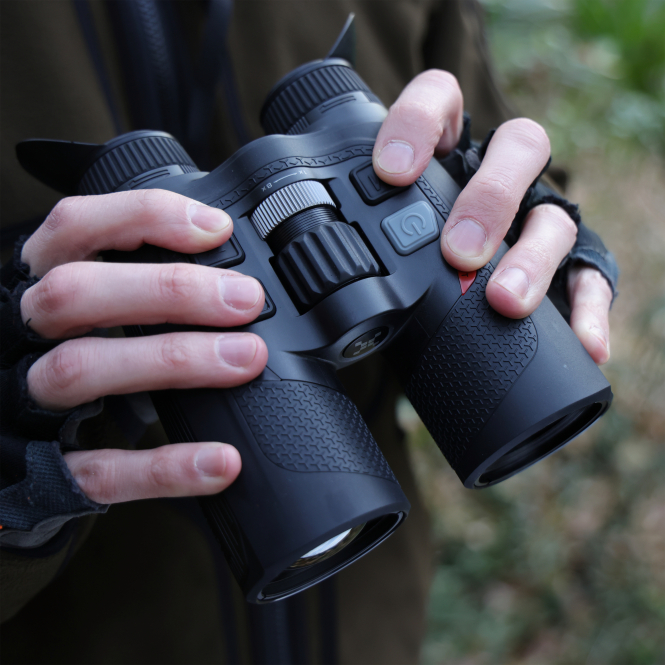

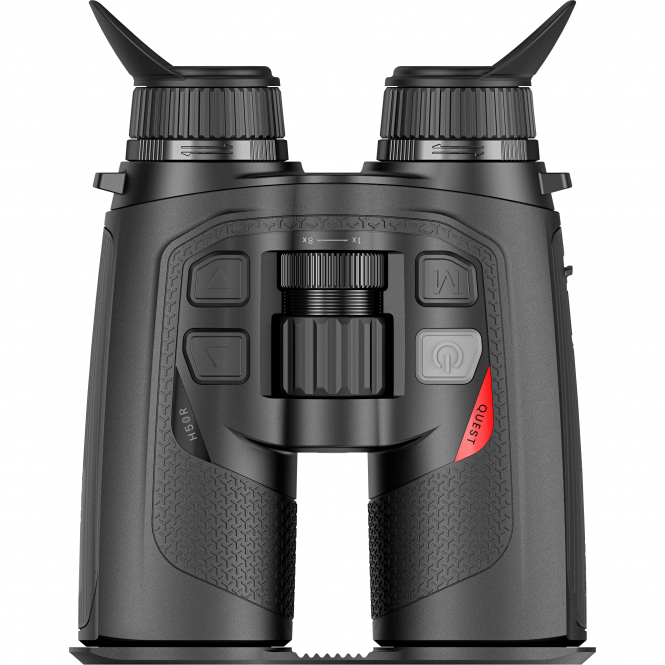

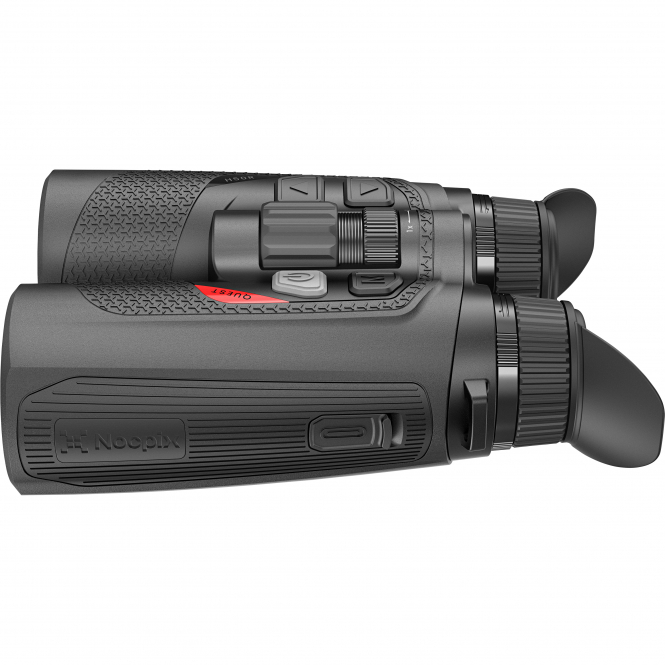

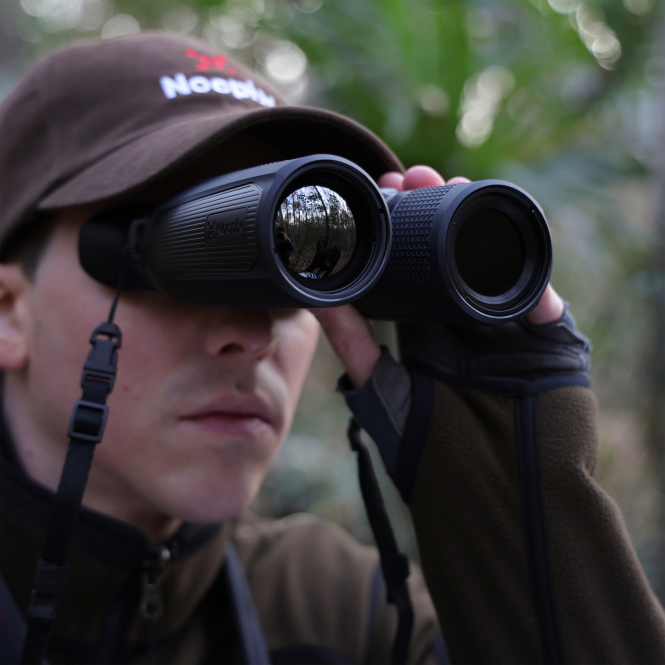

An integrated laser rangefinder enables precise distance measurements of up to 1000 meters - ideal for hunting, nature observation or exploration. With a weight of less than 700 g, ergonomic design and non-slip solid rubber coating, the binoculars sit securely in the hand. The simplified 4-button layout and centrally positioned scroll wheels enable intuitive one-handed operation.
Reliable and flexible in use

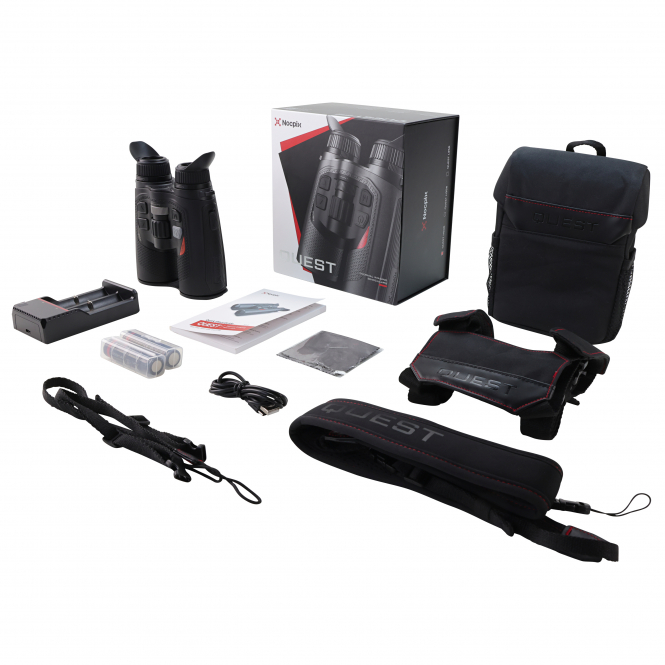

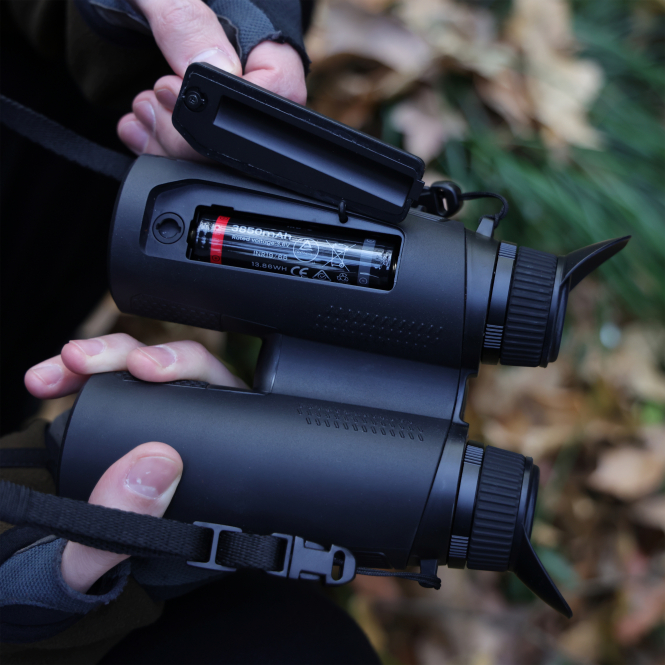

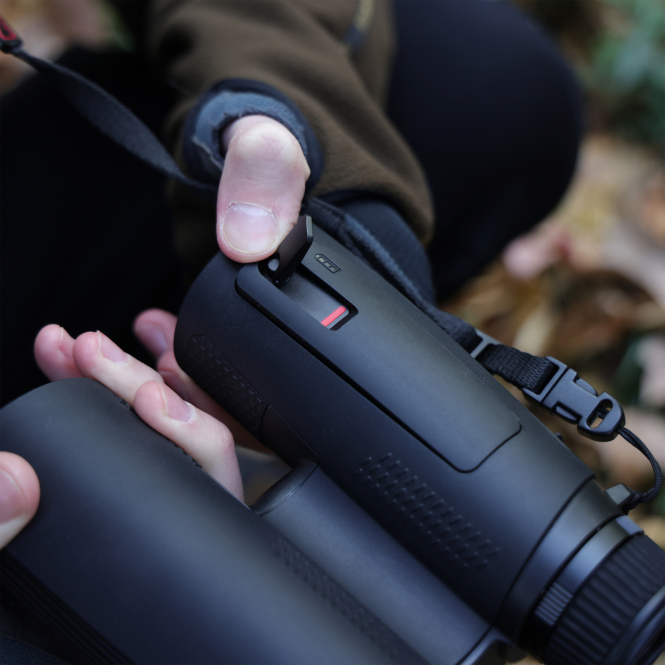

The dual-battery design with integrated and replaceable 18650 battery allows quick battery replacement and uninterrupted use. The IP67 certification and robust design protect against dust and water. With 64 GB of internal memory, a special carrying case and customization options such as 25 mm exit relief, 10 mm exit pupil and ±5 D diopter compensation, Quest binoculars are flexible and reliable - even at temperatures from -20 °C to +50 °C.
Binocular Quest H35R (with LRF)
Precise distance measurement and high image sharpness
The Quest H35R has a detection range of up to 1800 metres and is equipped with a concealed laser rangefinder that allows precise measurements up to 1000 metres. The built-in 640×512 pixel sensor with 12 µm pixel pitch and a NETD of ≤15 mK ensures particularly high image sharpness and thermal sensitivity, so that even small temperature differences can be reliably detected.
Versatile features for hunting
The F0.9 lens offers a field of view of 22 metres at a distance of 100 metres, and the variable magnification ranges from 3x to 24x. The Quest H35R supports ballistic calculations, providing helpful data for hunting. With a dual battery system, up to 6 hours of operating time, 64 GB of internal memory, a robust IP67 housing and a weight of less than 700 g, the device is ideal for demanding field use.
Technical data:
- Thermal sensor: 640x512, 12μm,
- NETD: ≤15 mK,
- Frame rate: 60 Hz,
- Objective lens: 35 F0.9,
- Field of view (H × V), °/m at 100 m: 12.5x10/22x18,
- Magnification: 3~24x,
- Detection range (target size: 1.7 m x 0.5 m, P(n) = 99%): 1800 m,
- Exit relief: 25 mm,
- Exit pupil diameter: 10 mm,
- Diopter adjustment: ±5 D,
- Display: 0.72 inch AMOLED,
- Resolution: 1920 x 1200,
- Battery type: Built-in and replaceable 18650,
- Max. operating time (t=22℃): 6 h,
- Laser safety class: Class 1,
- Max. rangefinder distance: 1000,
- Microphone: Supported,
- Storage capacity: 64 GB,
- IP protection class: IP67,
- Operating temperature: -20 ~ +50 ℃,
- Weight (with battery): < 700 g,
- Dimensions: ≤175.4x138x66 mm
