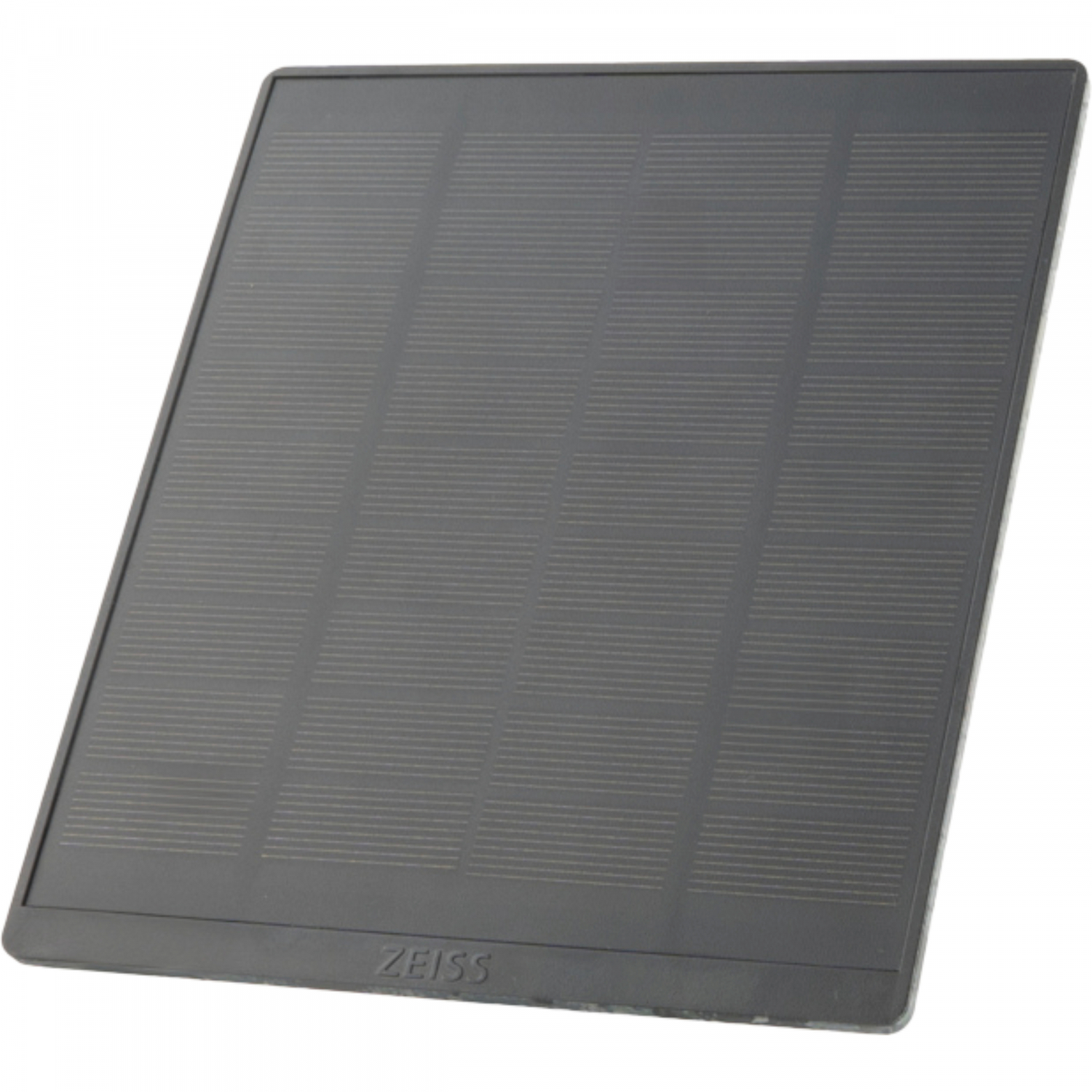

Solar Panel Mini

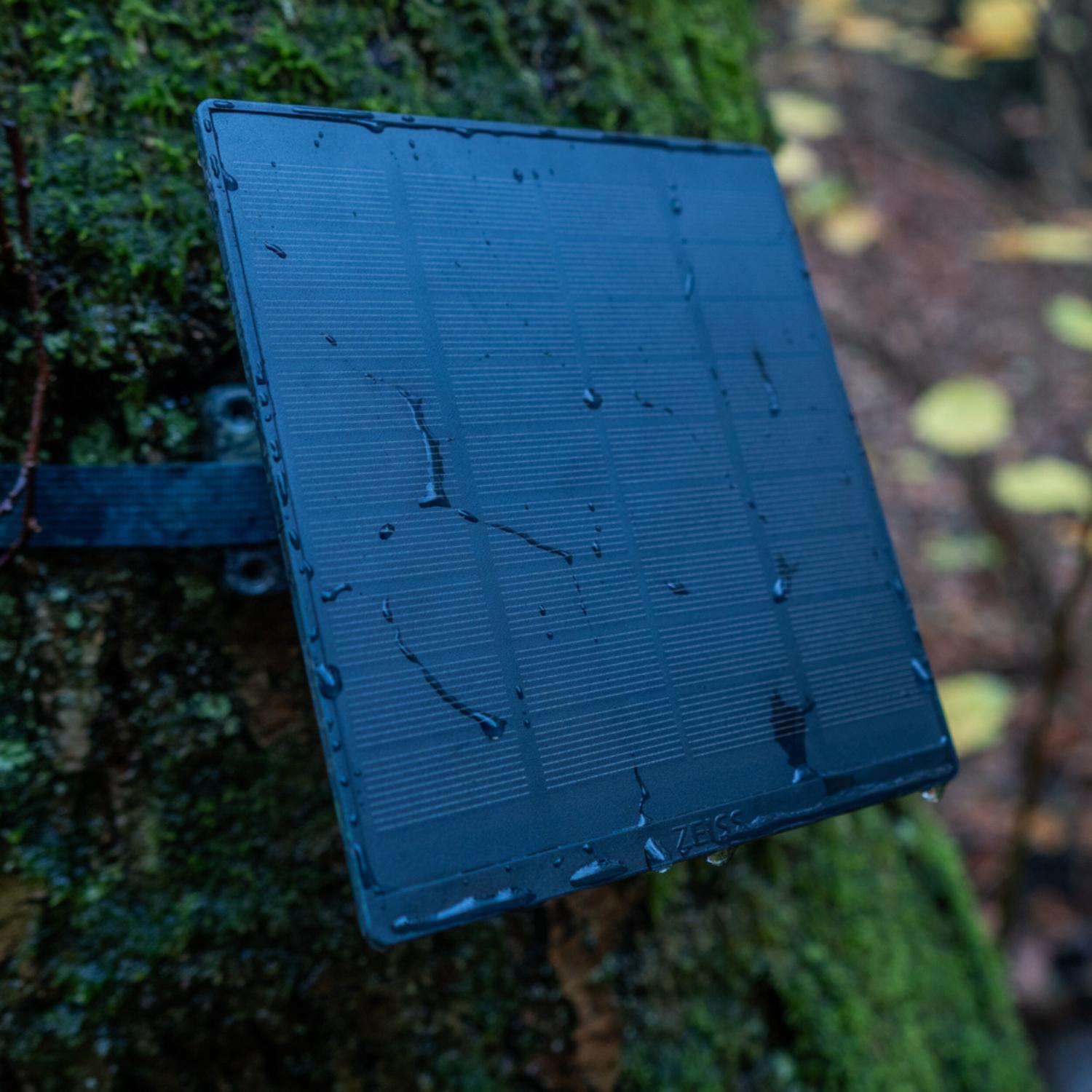

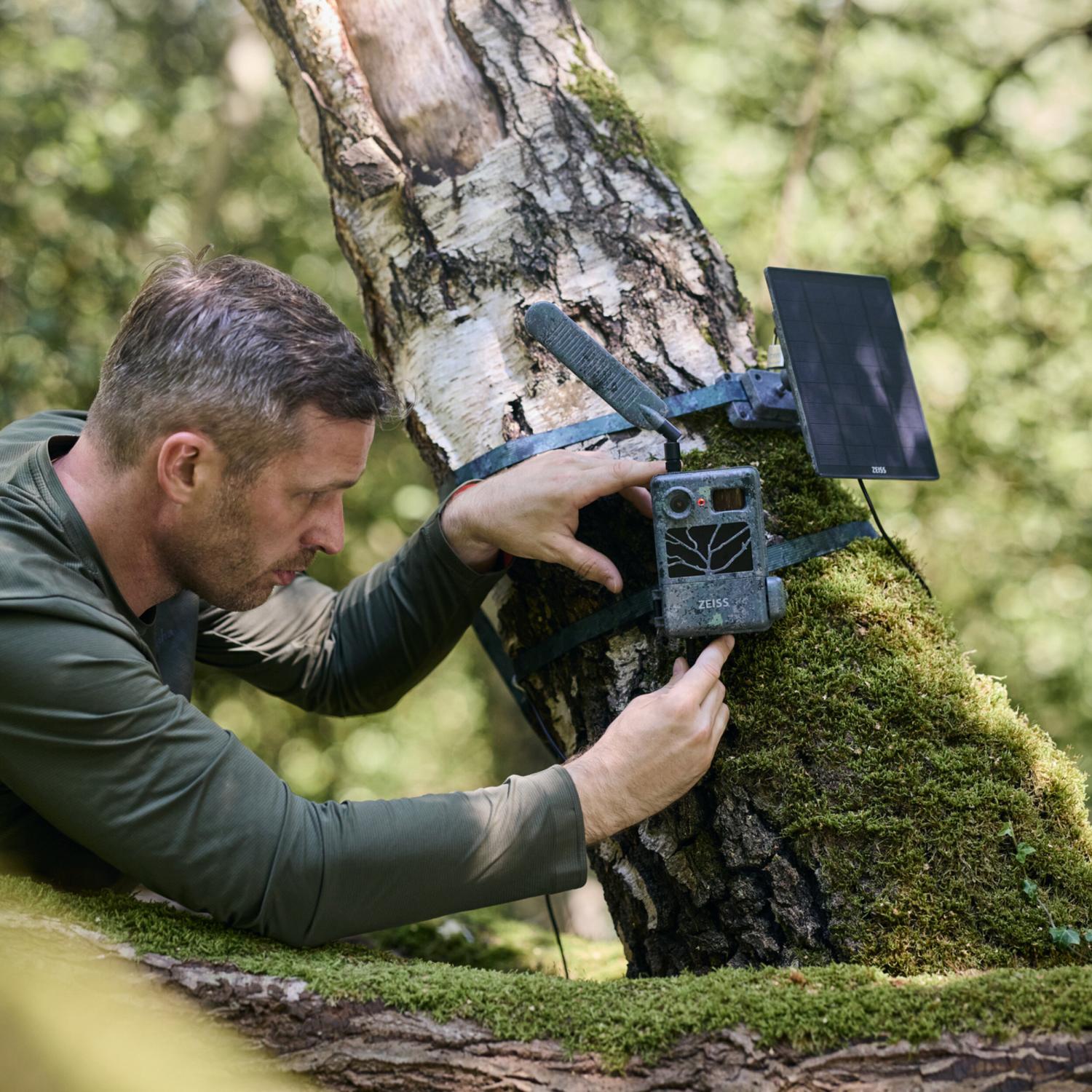

The ZEISS Solar Panel Mini is a compact and efficient solution for the permanent power supply of wildlife cameras and other 12V and 6V devices. Equipped with an integrated 5,000 mAh Li-ion battery, it converts sunlight into electrical energy during the day and stores it to ensure a reliable power supply even at night.

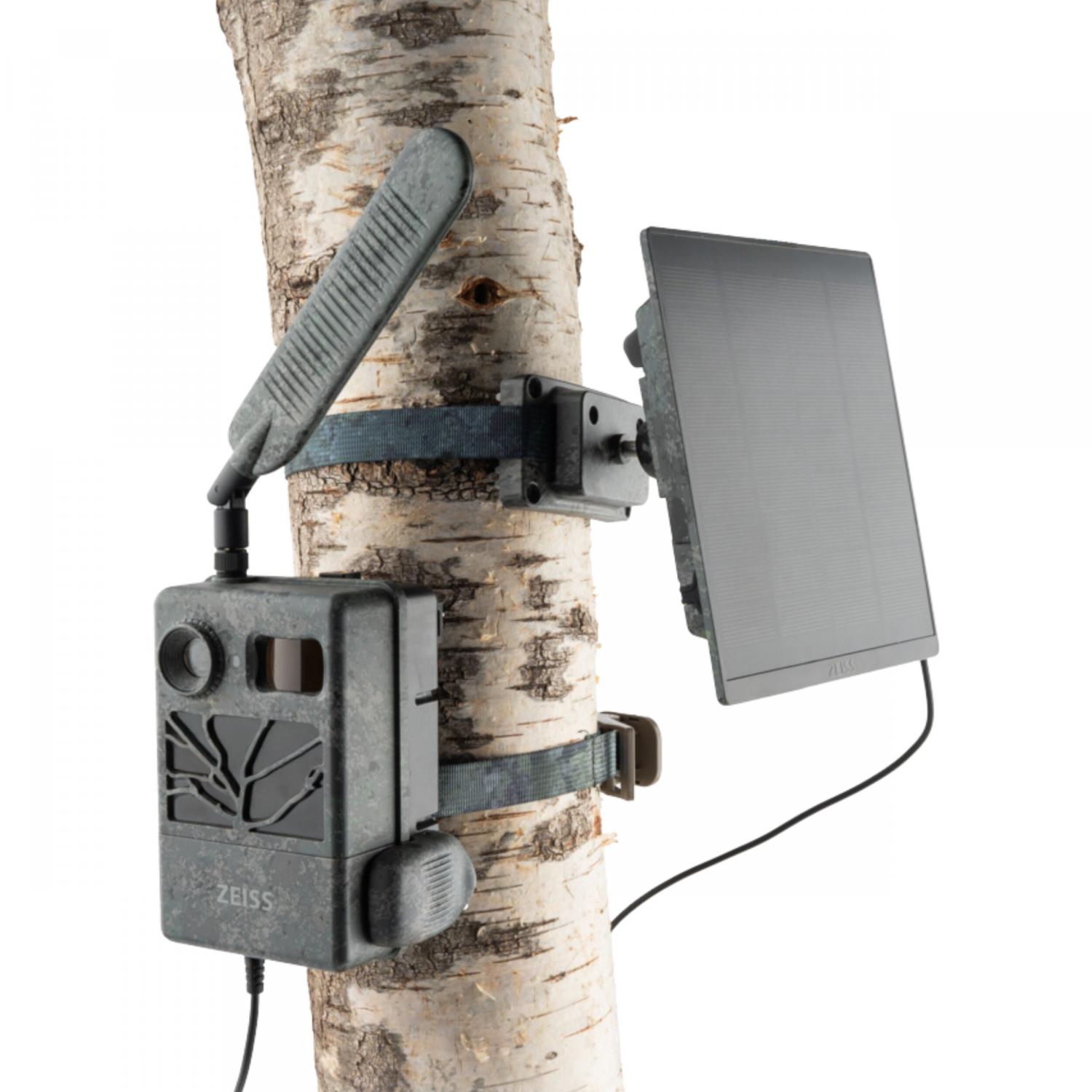

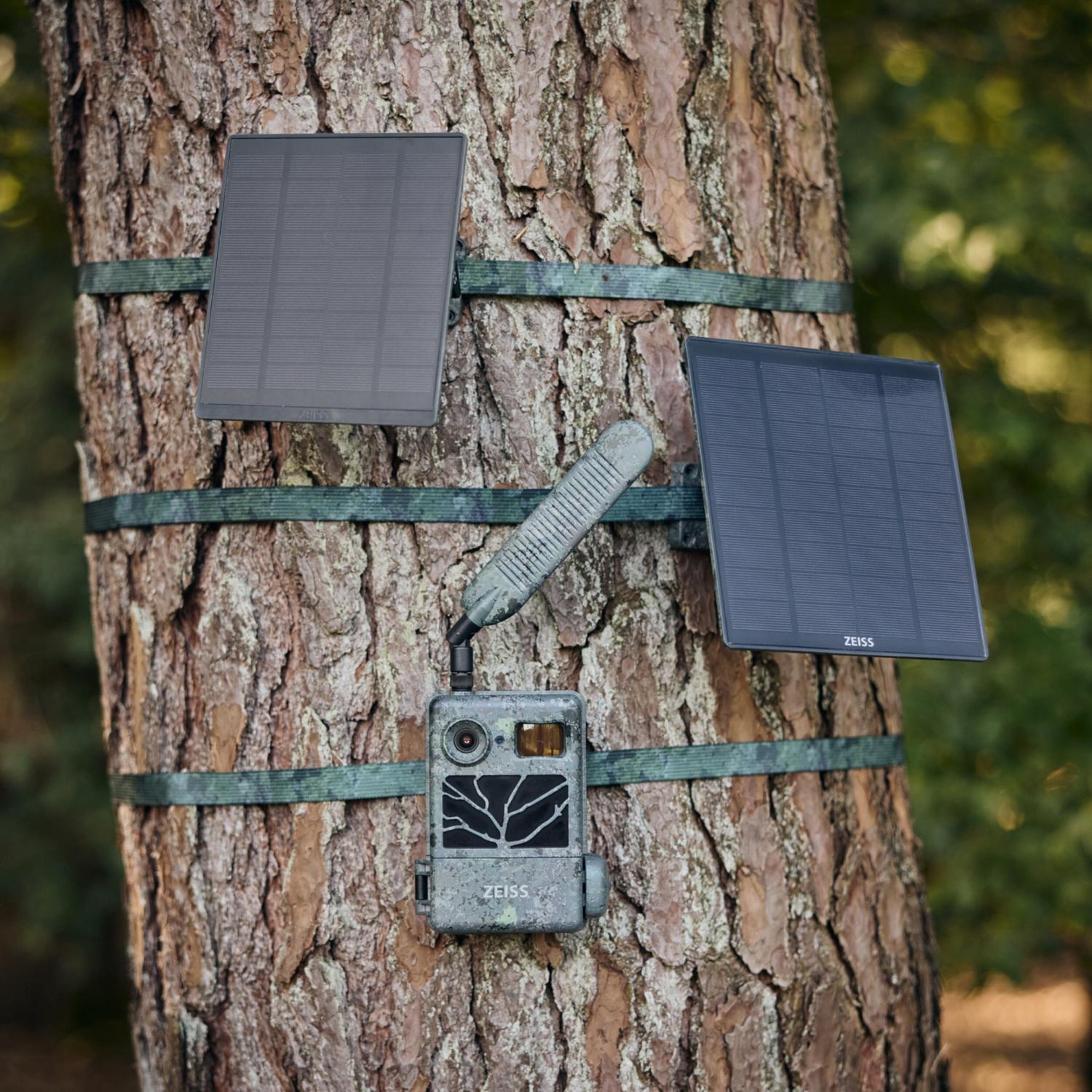

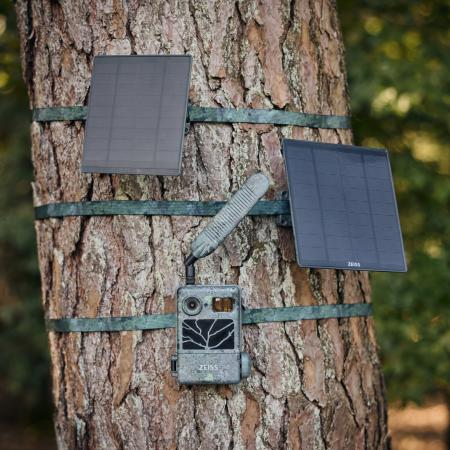

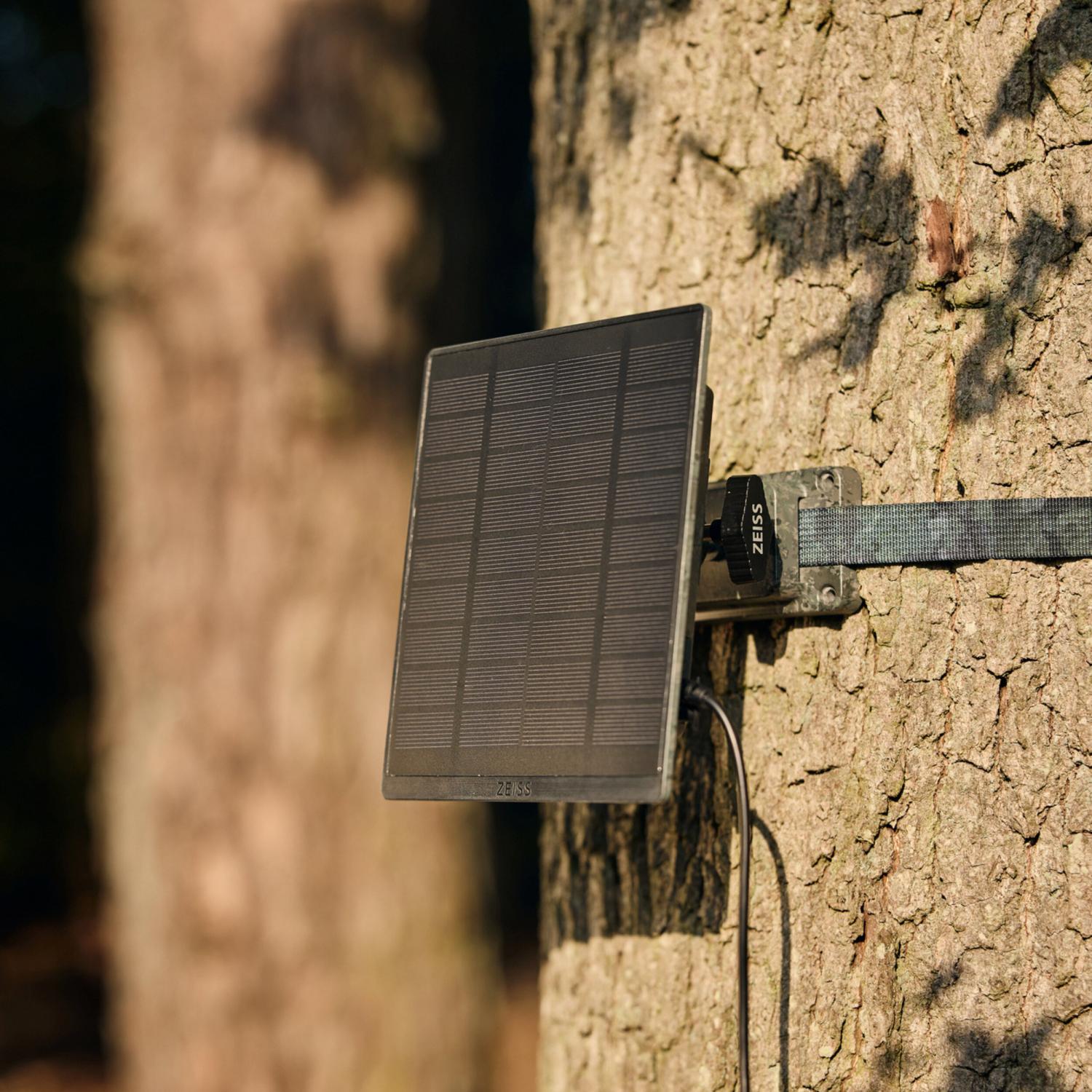

Installation is flexible and secure thanks to the included universal mount, which can be attached with screws or a tree strap. The lockable bracket protects against theft, while the ball head allows precise alignment of the panel towards the sun. The 5-metre connection cable allows the solar panel to be positioned optimally regardless of the location of the camera.

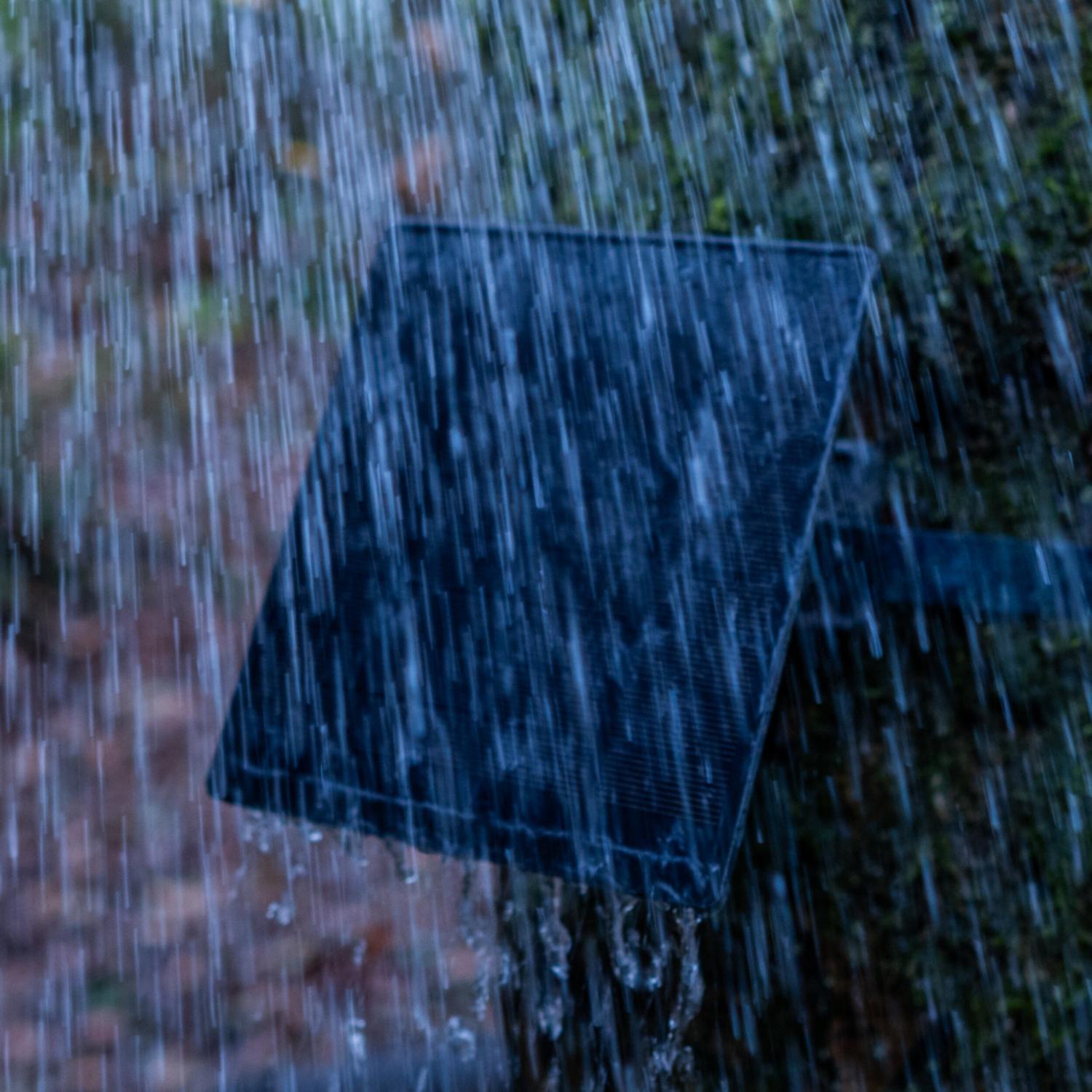

The weatherproof housing with protection class IP66 makes the solar panel particularly resistant to rain, snow and strong sunlight, ensuring reliable operation even under demanding conditions.

In addition to the Solar Panel Mini, the scope of delivery includes a camouflage tree strap, a 5-metre connection cable (DC 4.0x1.7 mm), a USB-A to USB-C cable, the universal mount with mounting material, a lock and an instruction manual.

Technical data:

- Built-in Li-ion battery with 37 Wh (5,000 mAh @ 3.7 V)
- Output voltage: 12 V
- Operating voltage Input: 5 V/2 A, Output: 12 V/1 A – 6 V/1.5 A

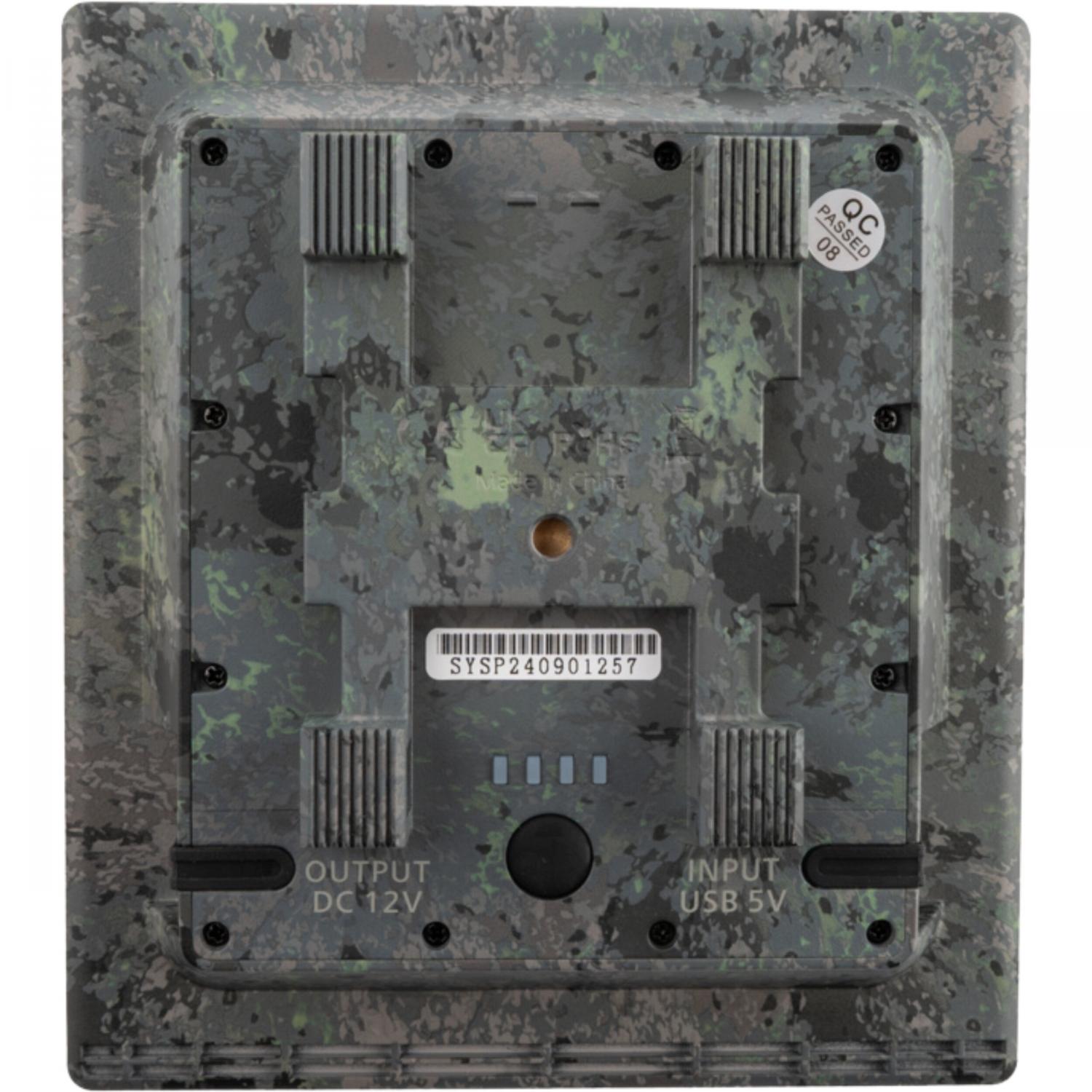

- Connections: DC, USB Type-C (input 5 V/2 A)
- Protection class: IP66
- Operating temperature: -20 °C to 55 °C
- Cable length: 5 metres
- Weight: 310 g
- Dimensions: 149 mm x 137 mm
