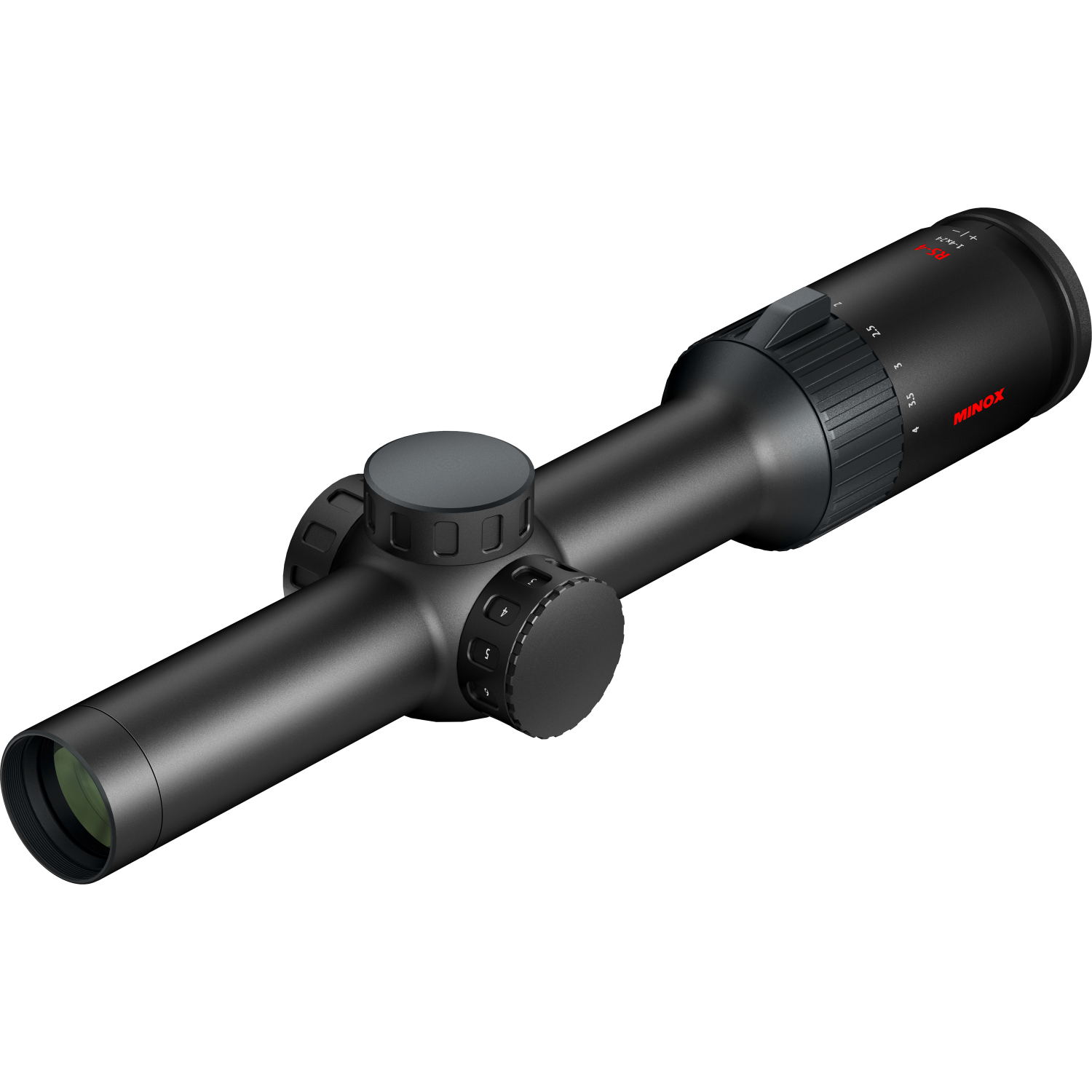

Riflescope RS-4 1-4x24

The Minox RS-4 1-4x24 is specifically designed for use in driven hunts and night hunts when paired with attachment optics. It combines a compact design with a wide field of view, enabling quick target acquisition. With a field of view of 40 m at 100 m, it provides a broad overview that is particularly beneficial when hunting moving game. The riflescope is lightweight at 471 g and compact with a length of 274 mm – making it ideal for dynamic hunting situations where fast reactions are required.

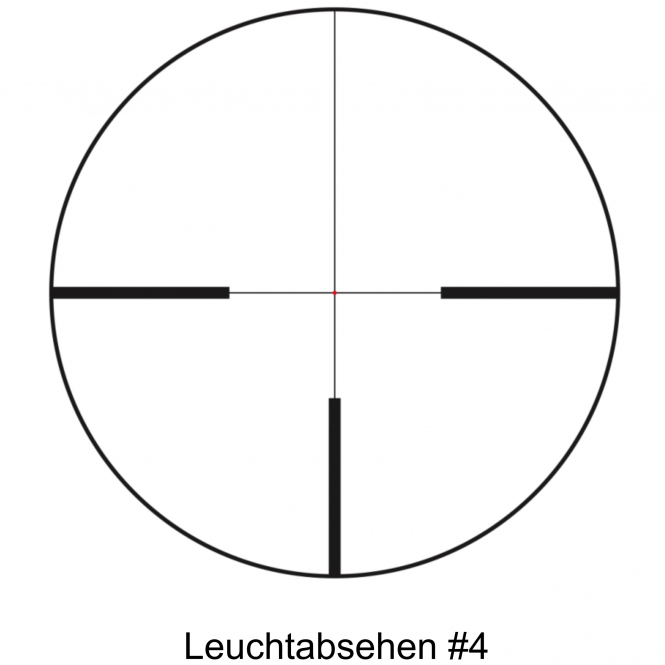

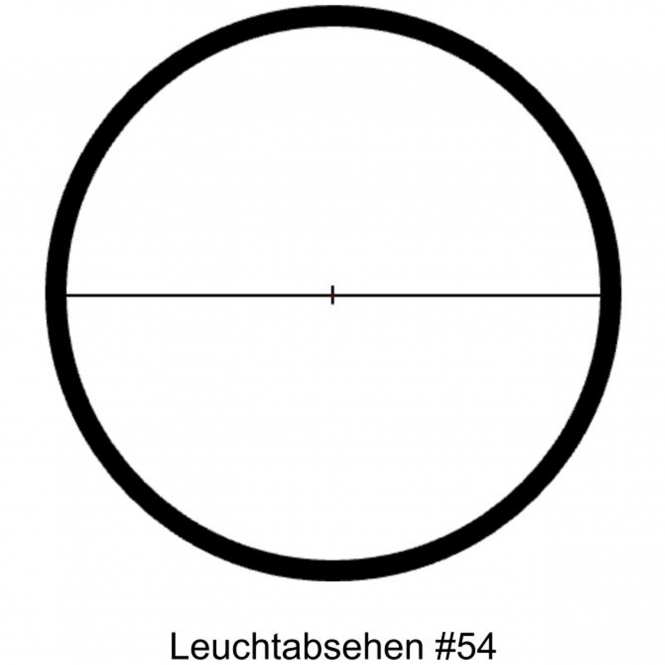

The reticle #4 follows a classic design with clear lines and a simple structure, allowing for quick target acquisition without obstructing the field of view unnecessarily. This variant provides a precise and clean display, which is especially helpful for rapid shots. On the other hand, the reticle #54 is ideal for those seeking maximum visibility. It features especially fine horizontal markings that cover only a small part of the field of view. This enables nearly unobstructed visibility of the target, which is advantageous when dealing with moving game or requiring quick reactions.
Both reticle variants are equipped with a 10-stage adjustable illuminated dot that remains clearly visible even in daylight. The automatic shut-off feature activates after three hours of inactivity, saving energy. Thanks to the generously sized eyepiece, the target remains in view even if the head is not perfectly aligned. This is particularly beneficial when quick movements or less precise aiming positions occur, ensuring a safe and swift shot.

Technical Specifications

- Model: 1-4x24
- Magnification: 1 - 4 x
- Objective lens diameter (mm): 24
- Exit pupil diameter (mm): 10.0 - 6.0
- Field of view at 100 m (m): 40.0 - 10.0
- Exit pupil distance (mm): 90
- Diopter adjustment: -3 / +2
- Windage and elevation adjustment (per click): 1 cm / 100 m
- Reticle adjustment range (elevation / windage): ±200 cm / 100 m
- Parallax adjustment: Fixed at 100 m
- Illuminated reticle: Yes, fiber optics
- Reticle plane: 2
- Power supply for illuminated reticle: CR 2032
- Nitrogen purged: Yes
- Fogproof and waterproof: Yes, 4 m for 30 min
- Tube diameter (mm): 30
- Length (mm): 274
- Weight (g): 471
