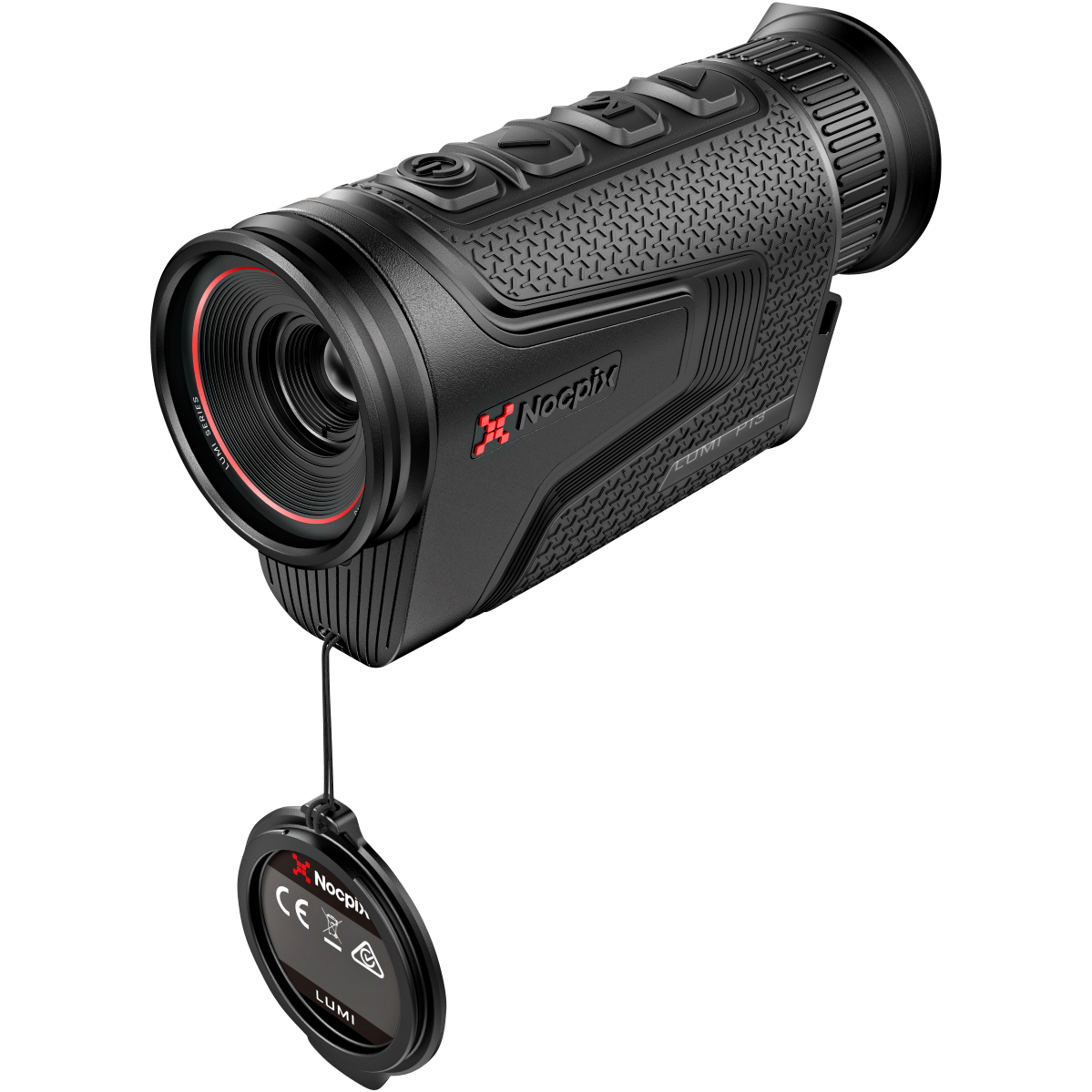

Nocpix Thermal Imaging Monocular Lumi H35R (with LRF)

Nocpix
NEW IN SORTIMENT
Nocpix Thermal Imaging Monocular Lumi H35R (with LRF)
Nocpix Thermal Imaging Monocular Lumi H35R (with LRF)
Nocpix
NEW IN SORTIMENT
Nocpix Thermal Imaging Monocular Lumi H35R (with LRF)
Modern sensor technology and image quality
The Lumi monocular impresses with a sensor with a NETD <20mK, which delivers consistently high thermal image quality even under demanding conditions. The F0.9 lens enables brighter and clearer images with 20% higher light transmission compared to conventional F1.0 lenses. The image quality is complemented by the Reality+ image algorithms, which reduce image noise and optimize contrast so that the full potential of the sensor is exploited.

Convenient operation and visual comfort
The noiseless buttons ensure discreet operation that does not disturb the game. Different color palettes, especially red and green, are designed to allow fatigue-free viewing even during longer observations. The eyepiece with an exit pupil diameter of 10 mm guarantees an optimum viewing angle and a comfortable view from different perspectives.

Sturdy construction and versatile functions
A replaceable 18650 battery ensures long-lasting use, offering up to five hours of operating time per charge and allowing quick replacement in the field. The Lumi monocular is protected against dust and water in accordance with IP67, weighs less than 400 grams even with the battery inserted and has extensive functions such as photo, video and microphone recording as well as 32 GB of internal memory. It therefore offers a reliable and powerful solution for users who value quality, versatility and convenience.
Nocpix Thermal Imaging Monocular Lumi H35R (with LRF)
The Lumi LRF monocular is equipped with an integrated laser rangefinder (LRF), which enables precise distance measurements at the touch of a button. Despite this additional function, the device remains extremely compact and handy, making it easy to transport and operate. The ballistic calculation helps to prepare distance data directly for further use, making it even more practical for any application.

Technical Data:

- Model: Lumi H35R
- Heat sensor: 640x512 and 12μm
- NETD: ≤18 mK
- Frame rate: 50 Hz
- Objective lens: F0.9 35 mm
- Field of view (HxV): 12.5×9.4 /22×16 °/m @100m
- Magnification: 2.5~20 x
- Detection range (target size: 1.7 m x 0.5 m, P (n) = 99%): 1800 m
- Exit relief: 25 mm
- Exit pupil diameter: 10 mm
- Dioptres: -5~+5 D
- Type: 0.39 inch AMOLED
- Resolution: 1024 x 768
- Battery type: Replaceable 18650
- Max. operating time (t=22℃): 4.5 h
- Laser safety class: Class 1
- Max. rangefinder distance: 800 m
- Microphone
- Storage capacity: 32 GB
- IP protection class: IP67
- Operating temperature: -20 ~ +50 ℃
- Weight (with battery): 385 g
- Dimensions: 147 x 47 x 74 mm
