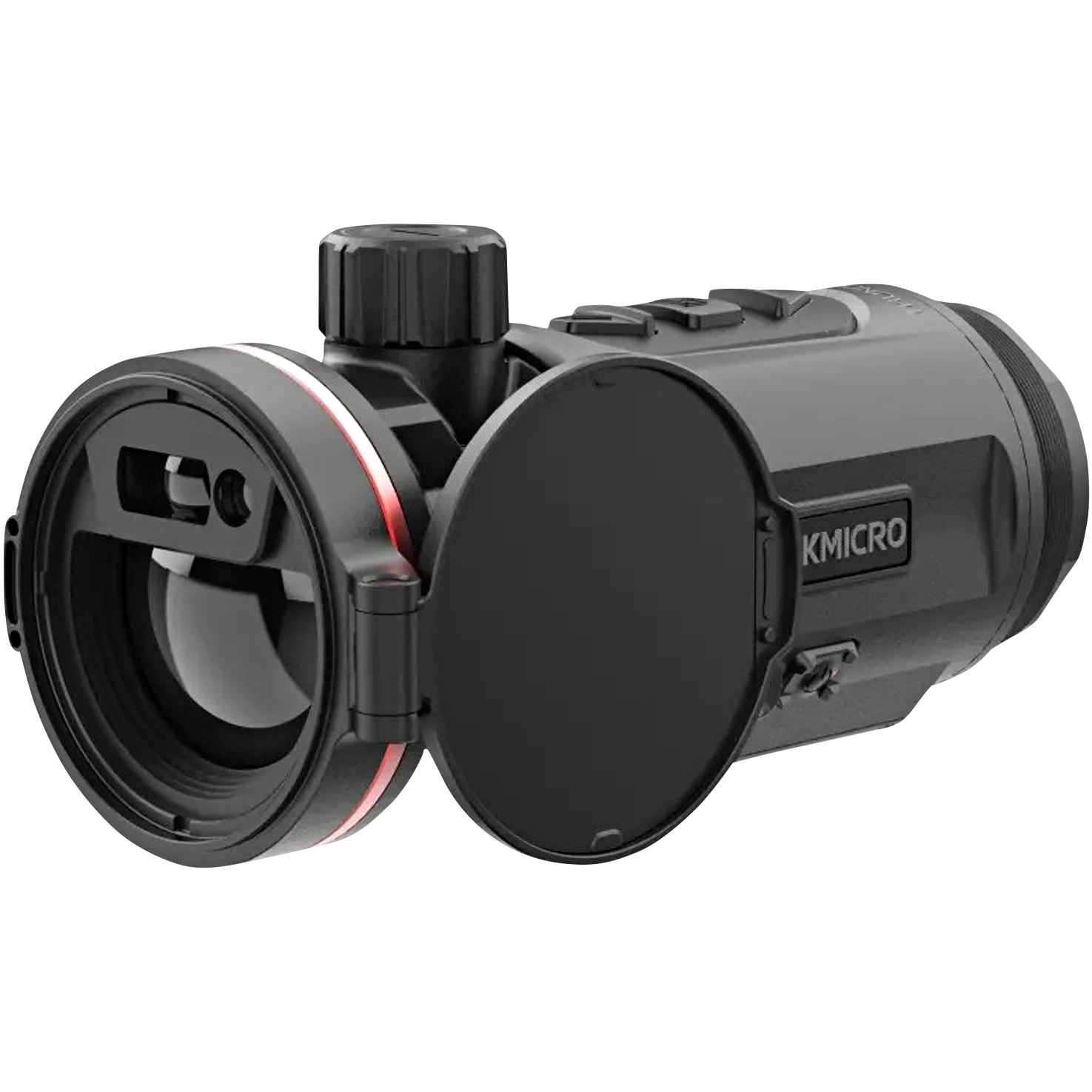

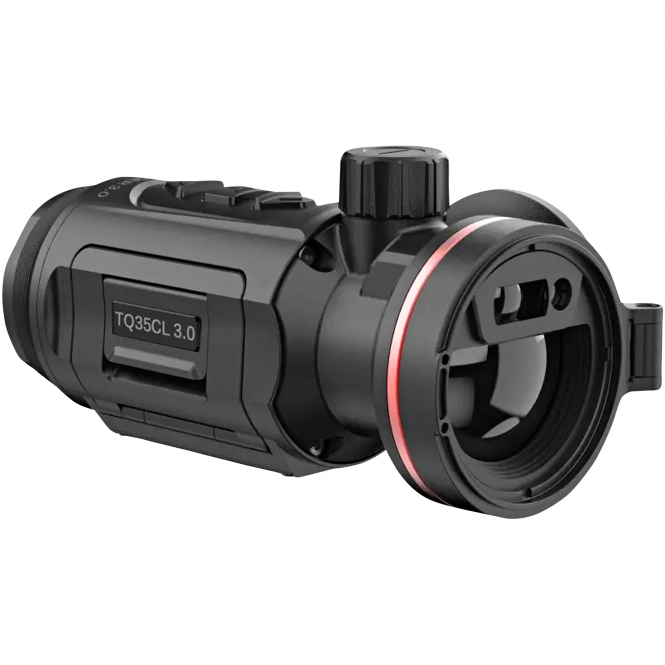

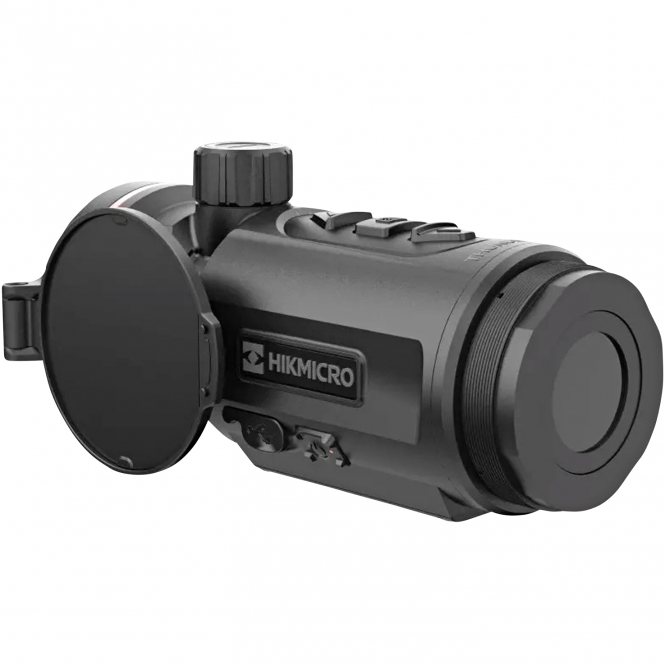

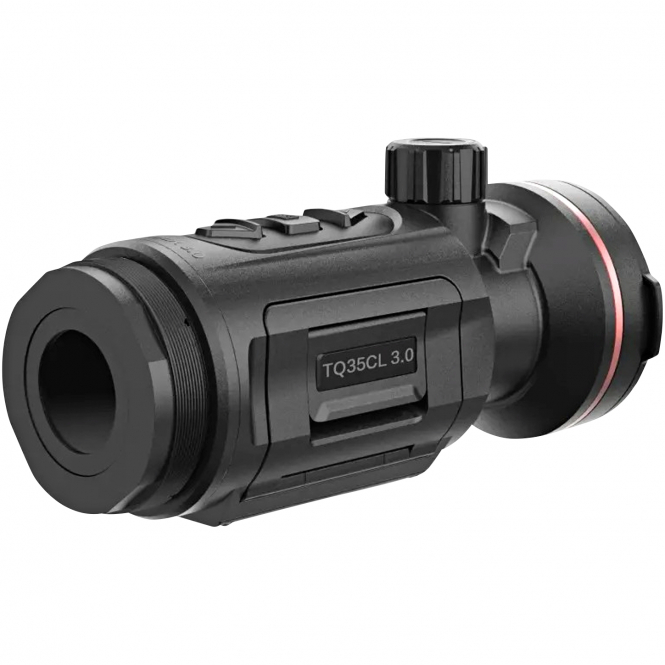

Hikmicro Thunder TQ35CL 3.0 Thermal Imaging Attachment
The HIKMICRO Thunder TQ35CL 3.0 is a thermal imaging attachment designed for use at night and in adverse weather conditions. It features a 640 × 512-pixel detector based on uncooled focal plane arrays with a thermal sensitivity of less than 15 mK, enabling the detection of subtle temperature differences even in fog or rain.
The 35 mm F1.0 lens works with the HIKMICRO Shutterless Image System (HSIS) to deliver smooth, jerk-free images. The integrated laser rangefinder measures distances up to 1000 m with an accuracy of ±1 m. The 0.49-inch OLED display with 1920 × 1080 pixels clearly shows details even at a distance.
The device offers features such as hotspot display, audio recording, recoil-activated video recording and 64 GB of storage in a shock-resistant, weatherproof magnesium housing.
Key features:
- Thermal detector: 640 × 512 pixels, 12 μm pixel pitch
- Sensitivity: NETD < 15 mK (@25°C, F#=1.0)
- Lens: 35 mm F1.0, detection range up to 1800 m
- Display: 1920 × 1080 OLED, 0.49 inches
- Laser rangefinder: Up to 1000 m, ±1 m accuracy
- Technology: HSIS & Image Pro 3.0
- Battery life: ≥5 hours
- Shock resistance: Up to 1000 g / 0.4 ms
Thermal module:
- Image sensor: Uncooled focal plane arrays
- Resolution: 640 × 512 pixels
- Frame rate: 50 Hz
- Pixel pitch: 12 μm
- Wavelength: 8–14 μm
- Focus: Focus ring, min. 10 m
- Magnification: 2.0x–16.0x
- Field of view: 12.5° × 8.0° (21.9 m × 14.0 m @100 m)
Image display:
- Display: 1920 × 1080 OLED, 0.49 inches
- Colour palettes: Black Hot, White Hot, Red Hot, Fusion, Red Mono, Green Mono
- Exit pupil: 25 mm
- Eye relief: 20 mm
- Brightness: Adjustable
Laser rangefinder:
- Class: Laser Class 1
- Wavelength: 905 nm
- Range: 10–1000 m
- Accuracy: ±1 m
System functions:
- Video and audio recording, trigger-activated
- Hotspot, standby mode
- Storage: 64 GB EMMC
- Calibration: 5 zeroing profiles
Power supply:
- Battery: Removable Li-ion
- Runtime: ≥5 hours
- Charging port: USB-C
General:
- Protection class: IP67
- Dimensions: 152.3 × 63 × 74.1 mm
- Weight: 525 g (with battery)
- Temperature range: -30 °C to +55 °C
- Housing: Magnesium alloy
Contents:
- 1x Thunder TQ35CL 3.0
- 1x Li-ion battery
- 1x USB-C cable
- 2x O-rings
- 1x User manual
