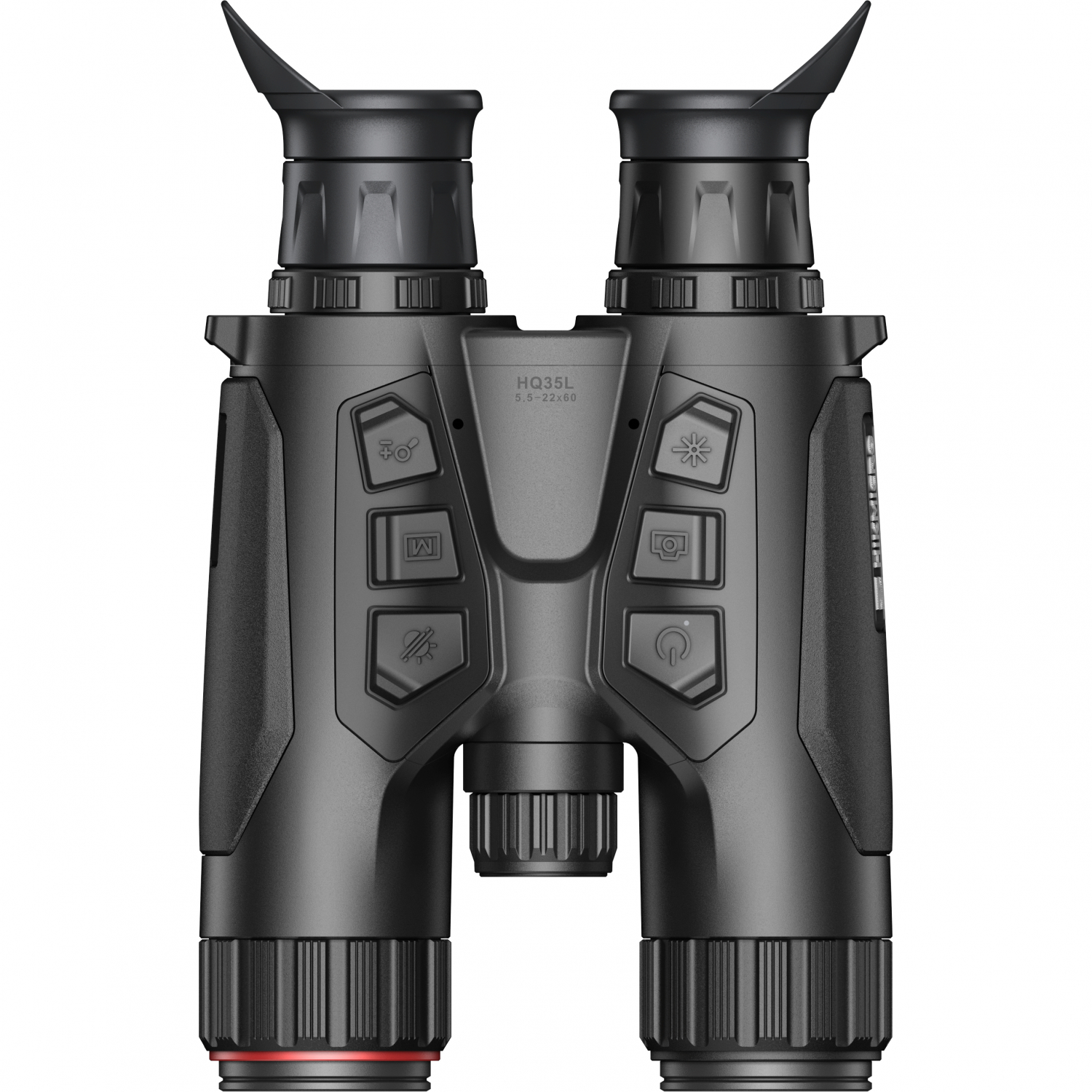

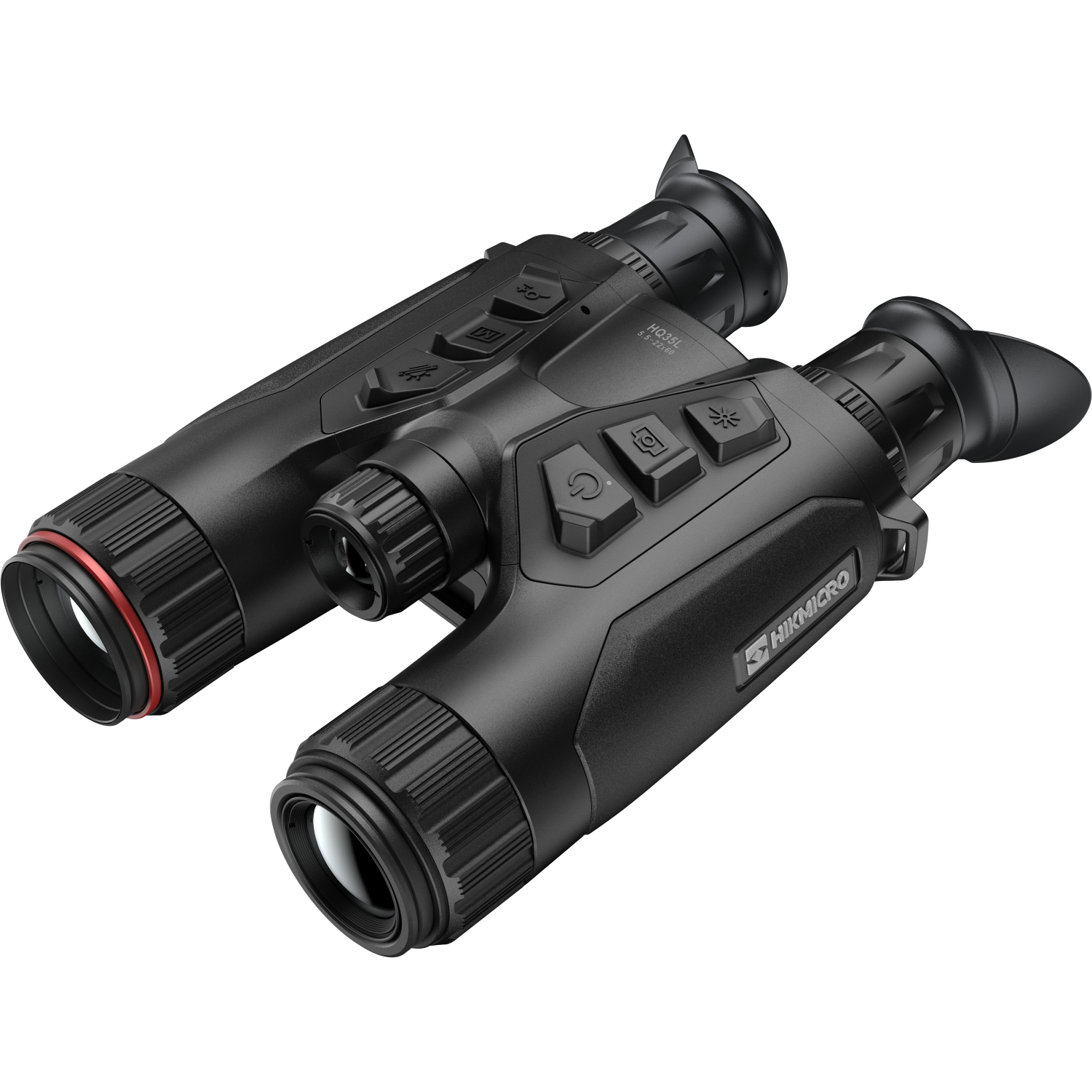

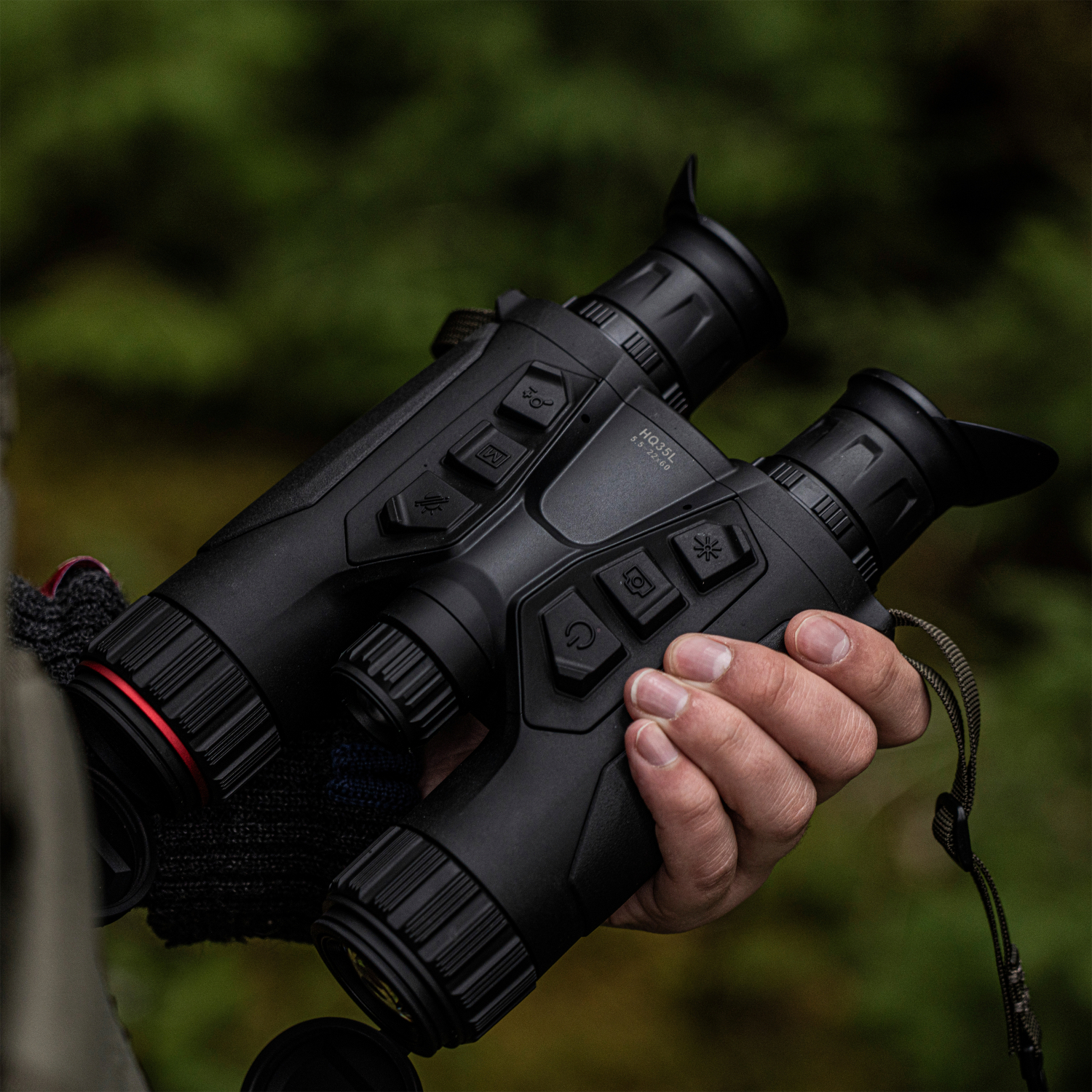

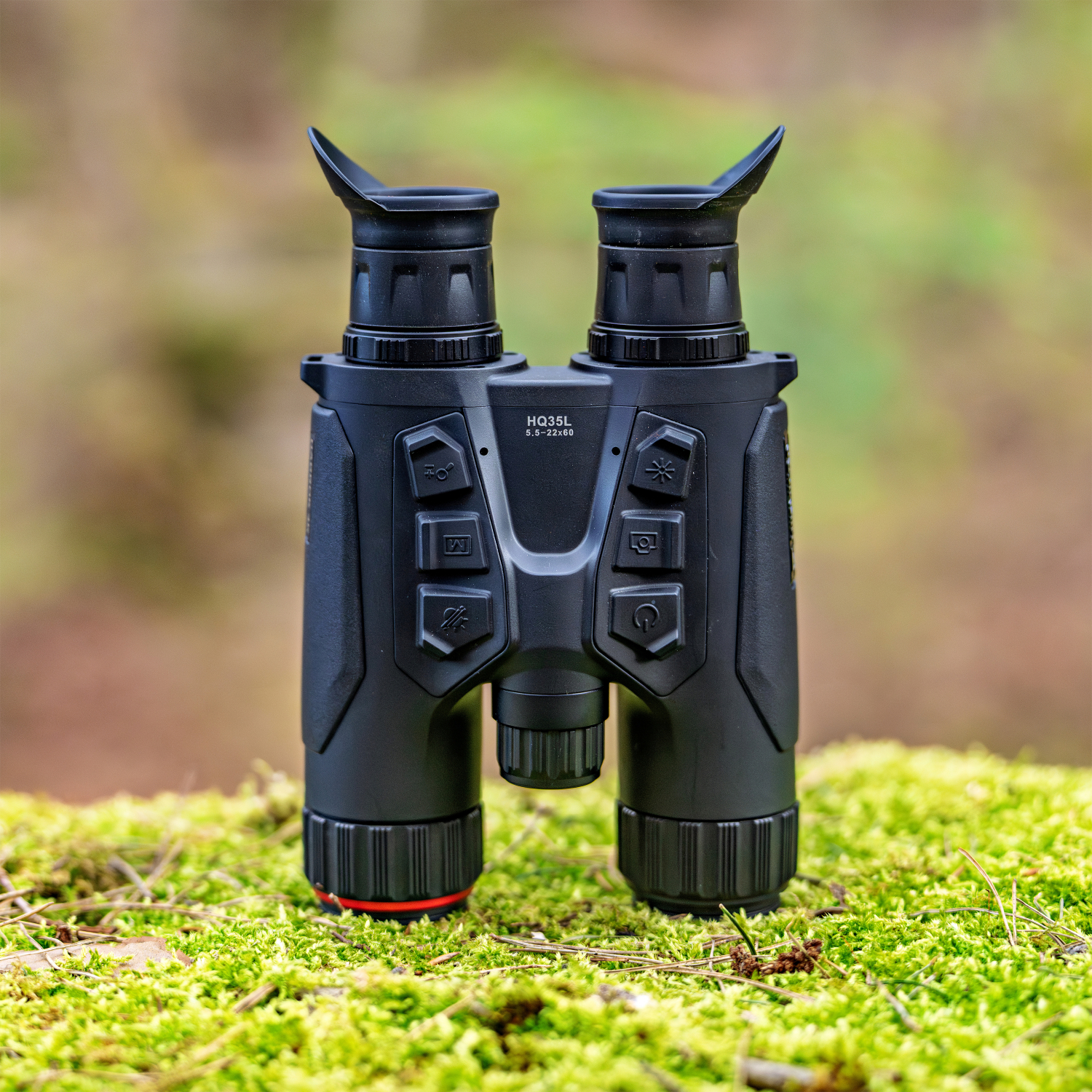

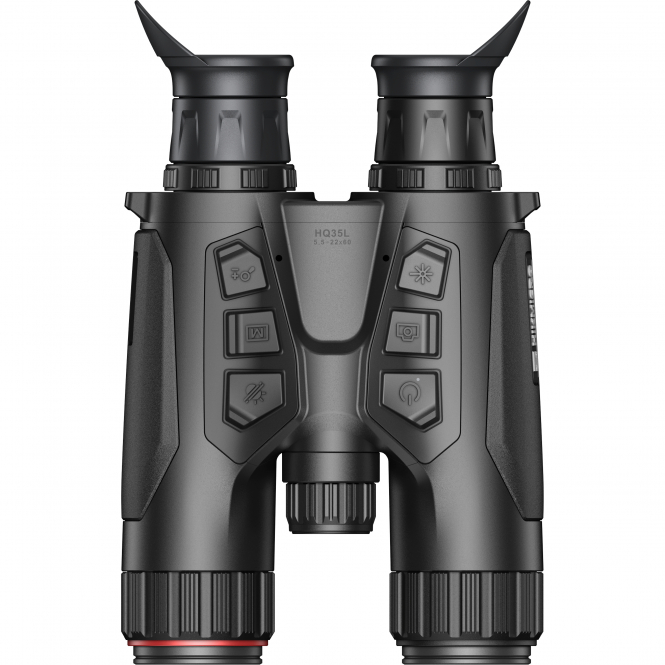

Binocular Habrok 4K HQ35L

The Hikmicro Habrok 4K HQ35L combines advanced thermal imaging technology and digital day and night vision in a compact, robust all-in-one binocular. With its innovative sensor technology, it offers reliable performance day and night and in a wide range of weather conditions - ideal for hunting, nature observation or maritime operations.

High-resolution thermal imaging technology
At the heart of the Habrok 4K HQ35L is a highly sensitive thermal imaging sensor with a resolution of 640 × 512 pixels at a pitch of 12 μm. Thanks to a NETD value of less than 20 mK and the bright 35 mm lens (F1.0), the device delivers high-contrast, detailed thermal images - even with minimal temperature differences. The detection range is up to 1800 meters under optimum conditions.

4K digital vision for day and night
For digital imaging, the Habrok is equipped with a 4K CMOS sensor (3840 × 2160 px). In combination with 60 mm optics and a high-resolution OLED display (1920 × 1080 px), the binoculars provide razor-sharp, true-color images - ideal for observations in daylight or with additional infrared support at night.

Flexible night vision and precise distance measurement
The Habrok 4K HQ35L has two interchangeable infrared emitters (850 nm for maximum range and 940 nm for almost invisible light), which optimally complement the digital view in complete darkness. An integrated laser rangefinder measures distances of up to 1000 meters (depending on the reflectivity of the target) and thus facilitates orientation and target tracking even at greater distances.

Compact, lightweight and durable

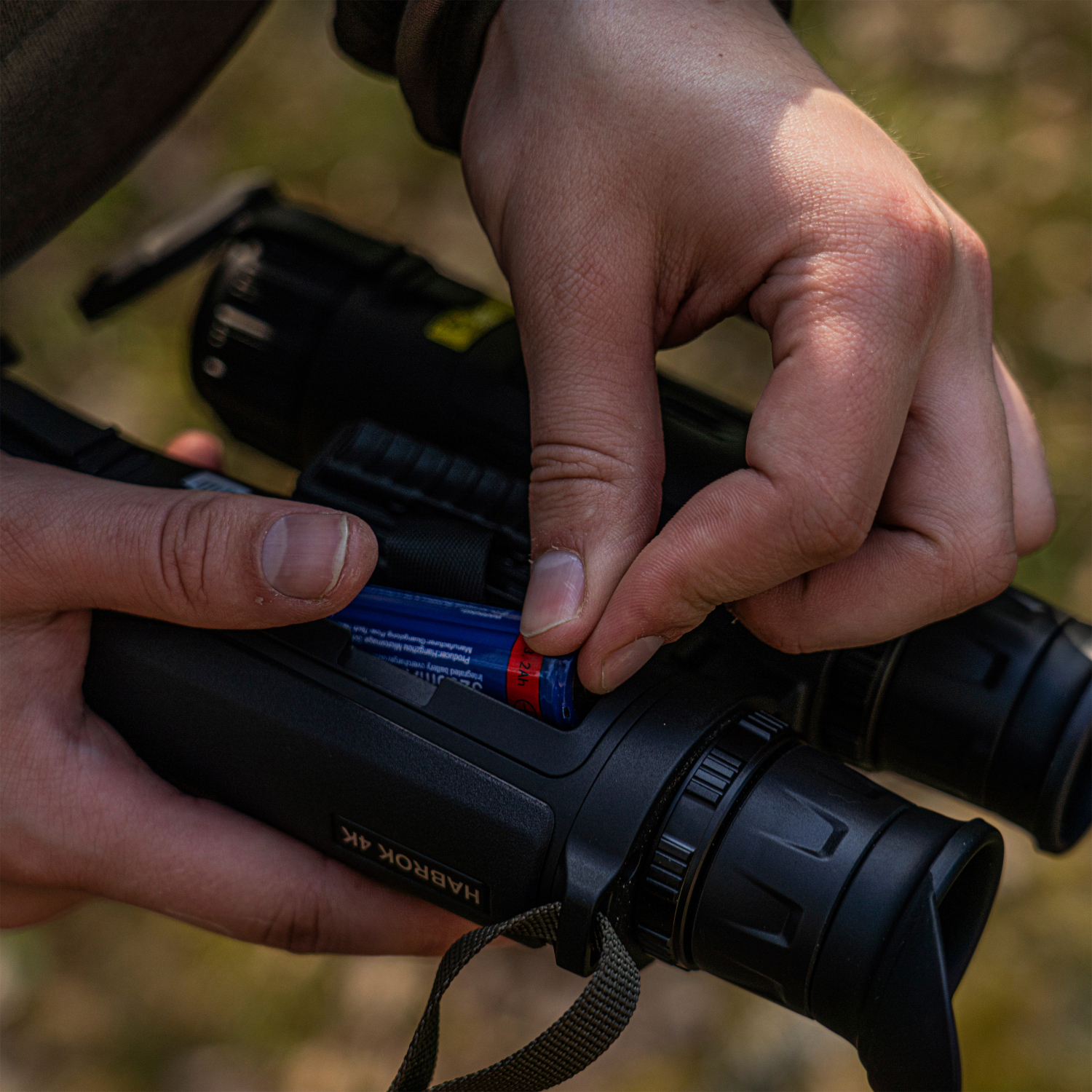

With a weight of only approx. 798 g, the Habrok 4K HQ35L is pleasantly light and ergonomically designed. The powerful, replaceable battery enables an operating time of over 8 hours - perfect for extended use in the field.

Versatile in use
Whether for hunting, wildlife observation or at sea: the Hikmicro Habrok 4K HQ35L impresses with its versatility, reliability and state-of-the-art technology in a well thought-out overall package.

Technical Specifications

Thermal Module
- Image Sensor: VOx Uncooled Focal Plane Arrays
- Max. Resolution: 640 x 512
- Frame Rate: 50 Hz
- Pixel Interval: 12 μm
- Response Waveband: 8 μm to 14 μm
- NETD: Less than 20 mK (@25°C), F#=1.0
- Lens (Focal Length): 35 mm, F1.0
- Focus Mode: Focus Ring
- Detection Range: 1800 m
- Min. Focusing Distance: 3.5 m
- Magnification: 3.0 x to 22.0 x (7.3 x)
- Field of View(H x V), Degrees / m @100 m: 12.5° x 10.1° / 22.0 m x 17.6 m

Optical Module
- Image Sensor: 1/1.8'' Progressive Scan CMOS
- Max. Resolution: 3840 x 2160
- Focal Length: 60 mm, F2.2
- Min. Working Distance: 3 m
- Focus Mode: Focus Ring
- Magnification: 5.5 x to 22.0 x (4x)
- Field of View (H × V), Degrees / m @100 m: 7.3° x 4.1° / 12.6 m x 7.2 m
- Smart IR: Yes
- IR Illuminator Wavelength: 940 nm (default) and 850 nm (replaceable)
- Viewing Range at Night: 400 m
- Replaceable IR Illuminator: Yes

Image Display
- Display: 0.49 inch, OLED, 1920 x 1080
- Palettes: Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto
- FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
- Exit Pupil: 8 mm
- Eye Relief: 15 mm
- Diopter (Range): -5 D to +3 D
- Brightness Adjustment: Yes
- Tone Adjustment: Cold, warm
- Contrast Adjustment: Yes
- Zoom Pro: Yes
