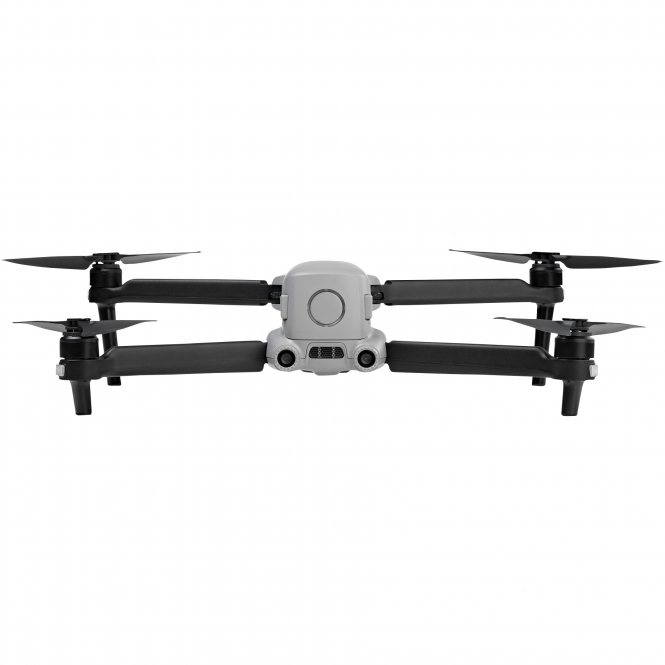

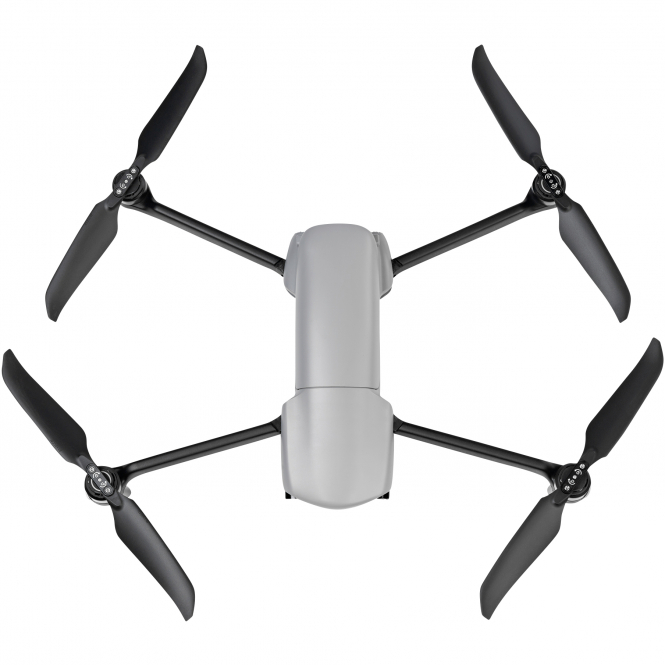

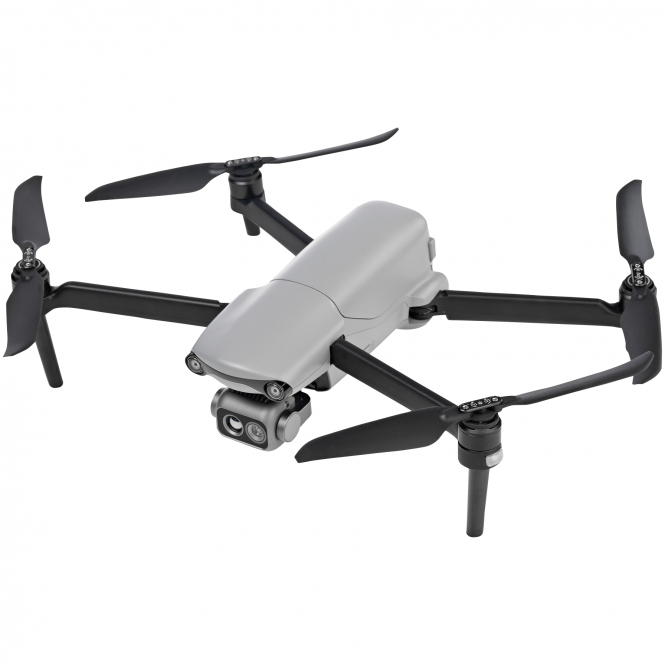

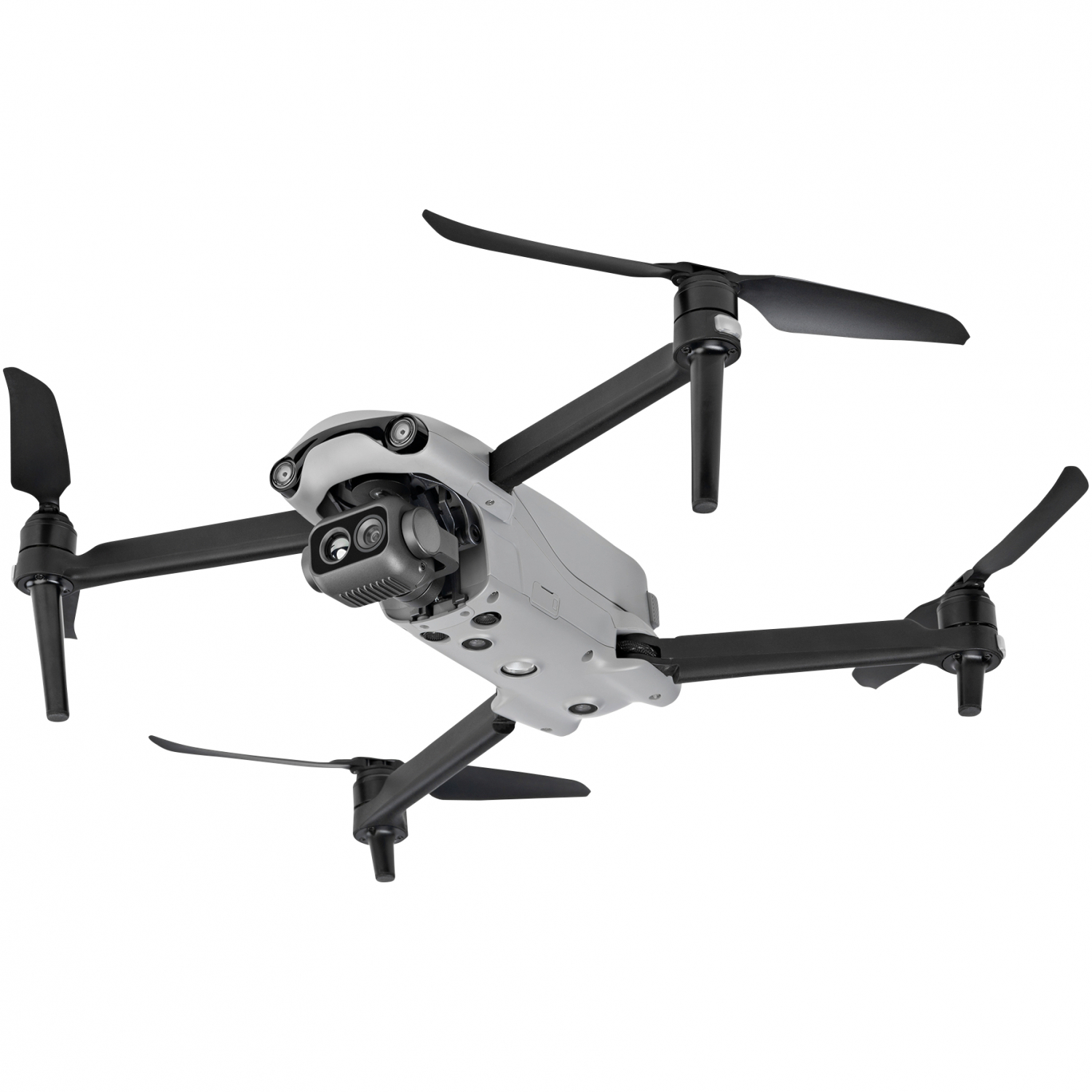

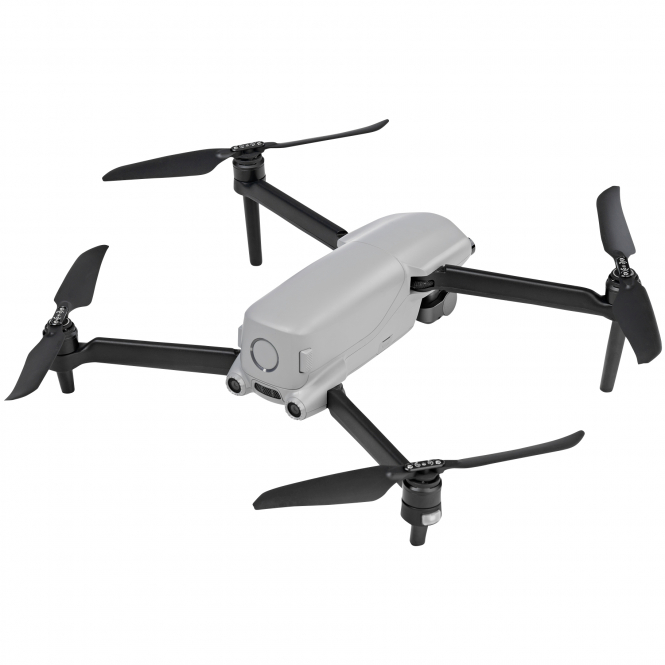

Autel EVO Lite Enterprise 640T

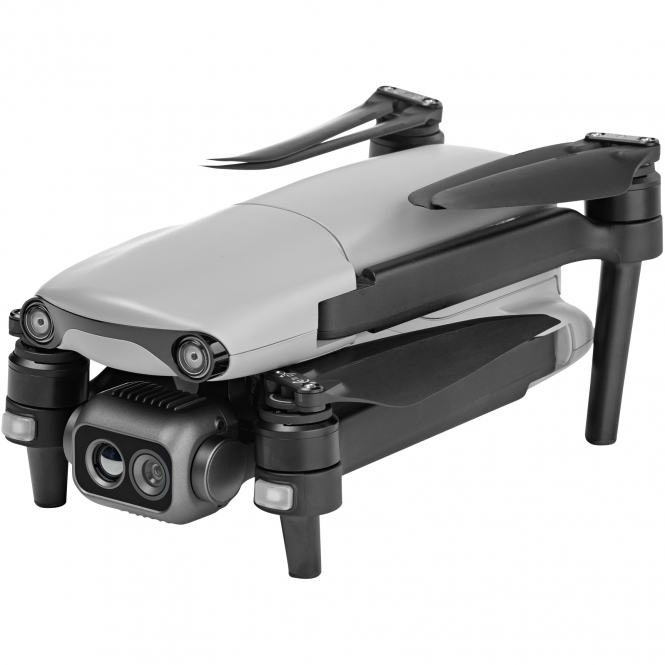

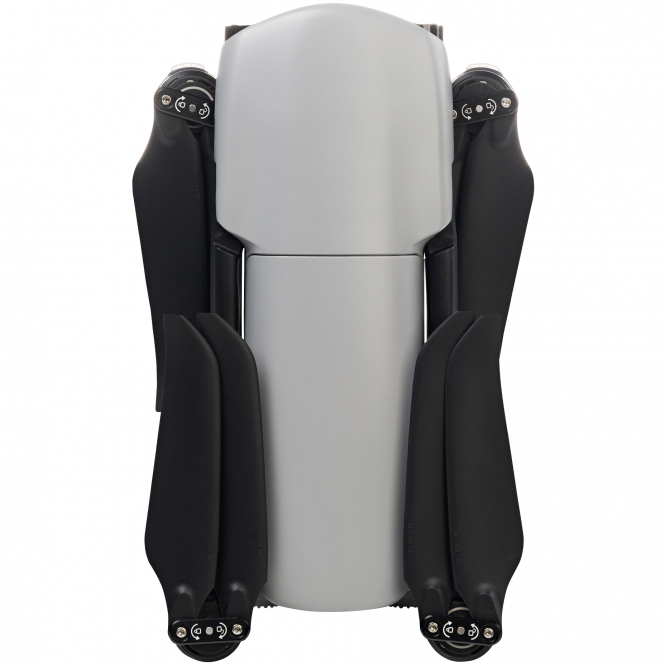

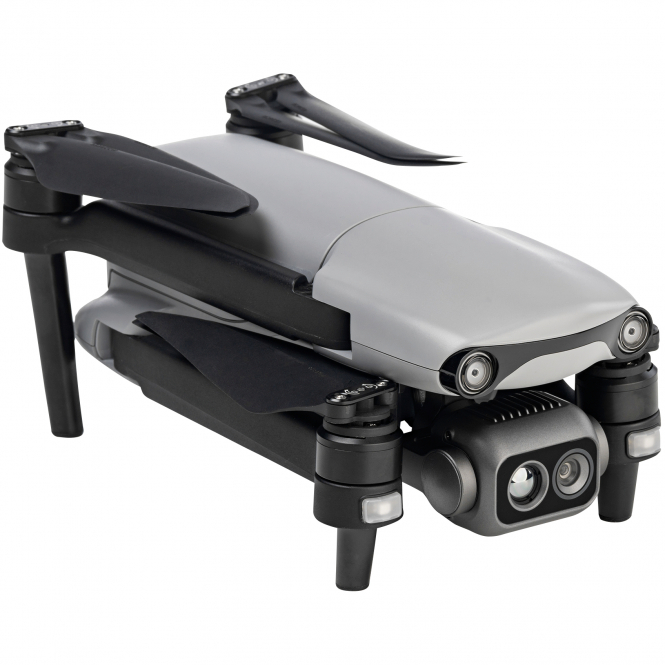

The drones in the EVO Lite Enterprise series weigh 866 grams and have folded dimensions of 210 × 123 × 95 mm.
Autel Enterprise App:
The Autel Enterprise App is professional flight mission software designed specifically for industrial applications.
Split-screen display:
Visible light imagery, infrared thermal imagery and map view can be displayed simultaneously on the screen in dual-channel mode. This allows data to be compared directly and comprehensive information to be obtained.
Offline maps: Offline maps are available in areas with weak or no network coverage. The maps are downloaded in advance, ensuring that aircraft positioning and route planning continue to function reliably.
AI target detection: Using intelligent AI algorithms, the drone automatically detects people, vehicles and boats and displays their positions on the map.

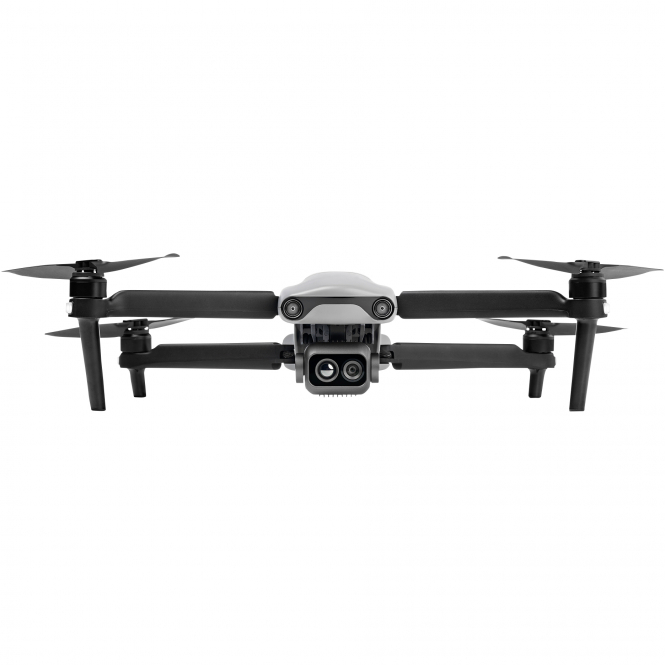

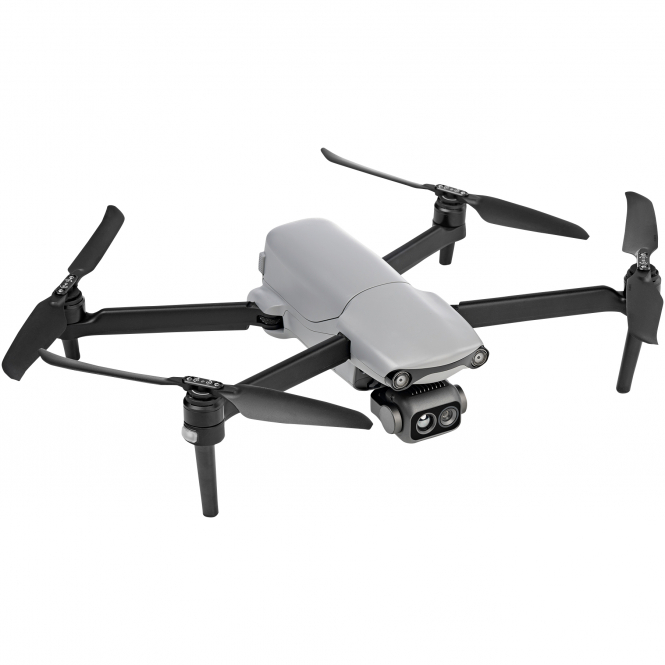

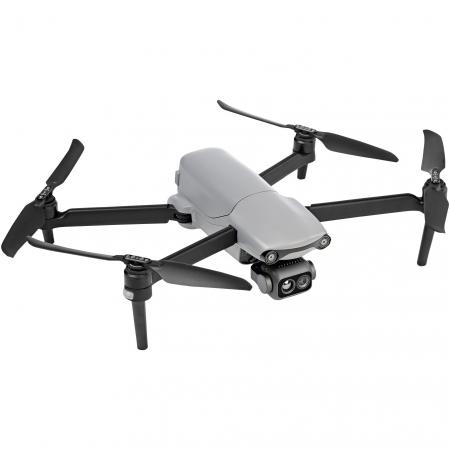

The EVO Lite 640T Enterprise model features a dual gimbal with two cameras: one for visible light and one for infrared thermal imaging.
Thermal imaging camera (infrared)
- Resolution: 640 × 512 pixels
- Focal length: 9.1 mm
- Digital zoom: 16x
- Temperature measurement range: –20 °C to 150 °C or 0 °C to 550 °C (depending on the selected range)
- Temperature accuracy: ±3 °C or ±3% of the measured value, whichever is higher
The camera produces clear, detailed thermal images that are well suited for inspections and surveillance.
Visible light camera
- Sensor: 1/2-inch CMOS sensor
- Resolution: 48 megapixels
- Aperture: F2.8
- Digital zoom: 16x
- Maximum photo resolution: 8000 × 6000 pixels
- Maximum video resolution: 4K at 30 frames per second
The wide-angle camera delivers sharp, high-resolution photos and videos suitable for documentation and detailed visual analysis.
Image transmission:
Image transmission is based on Autel’s SkyLink technology with a dual-signal and dual-reception system. This reduces interference and achieves a transmission range of up to 12 kilometres.
- Supported frequencies: 2.4 GHz, 5.2 GHz and 5.8 GHz
- Automatic frequency hopping selects the best available channel
- Live streaming in 1080p with very low latency of less than 200 milliseconds
Flight safety and performance:
A visual perception system with wide-angle sensors on the front, rear and underside supports flight safety. This allows the drone to navigate reliably and avoid obstacles.
Typical flight performance data for the EVO Lite Enterprise series:
- Flight time: up to 40 minutes
- Maximum horizontal flight speed: 18 m/s
- Maximum take-off altitude: 3,000 metres
This makes the series suitable for inspections, surveillance and other industrial or government-related applications.
Data security and other features:
The system incorporates several protection and security features:
- Data protection: Flight logs, locations and other user data are only transmitted with the user’s consent.
- Encrypted storage: Photos, videos and flight data are stored using AES encryption. A password is required to access them.
- Live streaming: Supports RTMP streaming for real-time video transmission; the GB28181 protocol is expected to be added in future updates.
For further technical information, please refer to the user manual
